REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

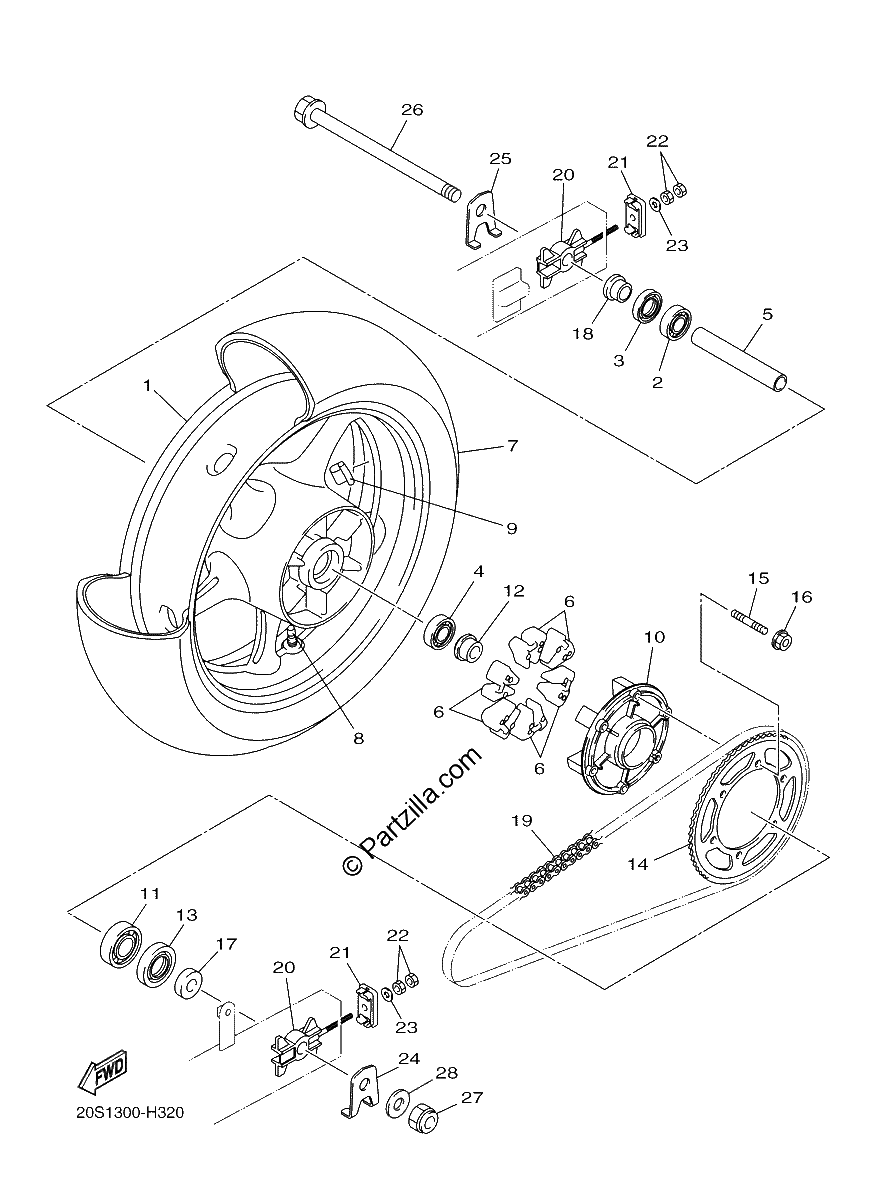

Diagrama de REAR WHEEL

Repuestos

#1
20S-25338-00-8L
CAST WHEEL, REAR *{NG}*
$731.24¢365 619
1
#2
93306-30317-00
BEARING
$41.08¢20 538
1
#3
93102-25044-00
OIL SEAL
$13.81¢6 906
1
#4
93306-30317-00
BEARING
$41.08¢20 538
1
#5
20S-25317-00-00
SPACER, BEARING
$29.93¢14 963
1
#6
20S-25364-00-00
DAMPER
$22.69¢11 344
1
#7
94116-17019-00
TIRE (160/60ZR17M/C 69W) | UR DUNLOP
$254.07¢127 038
1
#7
94116-17015-00
TIRE(160/60ZR17M/C 69W BT021R) | UR BRIDGESTONE
$285.26¢142 631
1
#8
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
1
#9
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$18.51¢9 256
1
#9
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$18.31¢9 156
1
#9
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$47.05¢23 525
1
#10
20S-25366-00-00
CLUTCH, HUB
$139.05¢69 525
1
#11
93306-20659-00
BEARING
$77.13¢38 563
1
#12
20S-25383-00-00
COLLAR, WHEEL
$39.47¢19 737
1
#13
93106-40041-00
OIL SEAL
$18.43¢9 213
1
#14
20S-25446-00-00
SPROCKET, DRIVEN (46T)
$71.00¢35 500
1
#15
90116-10048-00
BOLT, STUD
$27.17¢13 587
1
#16
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#17
20S-25377-00-00
COLLAR, WHEEL
$29.16¢14 581
1
#18
20S-25183-00-00
COLLAR, WHEEL
$28.16¢14 081
1
#19
94582-24118-00
CHAIN (DID520VP2)
$238.13¢119 063
1
#20
1UF-25388-01-00
PULLER, CHAIN 1
$30.92¢15 462
1
#21
1UF-22174-01-00
END 1
$40.36¢20 181
1
#22
95302-08600-00
NUT (6L2)
$8.09¢4 044
1
#23
92902-08600-00
WASHER, plate
$2.76¢1 381
1
#24
1UF-2533A-01-00
PLATE, INDICATOR
$14.30¢7 150
1
#25
1UF-2533E-01-00
PLATE, INDICATOR 2
$16.44¢8 219
1
#26
20S-25381-00-00
AXLE, WHEEL
$76.88¢38 438
1
#27
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#28
90201-16026-00
WASHER, PLATE
$6.72¢3 363
1
