COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

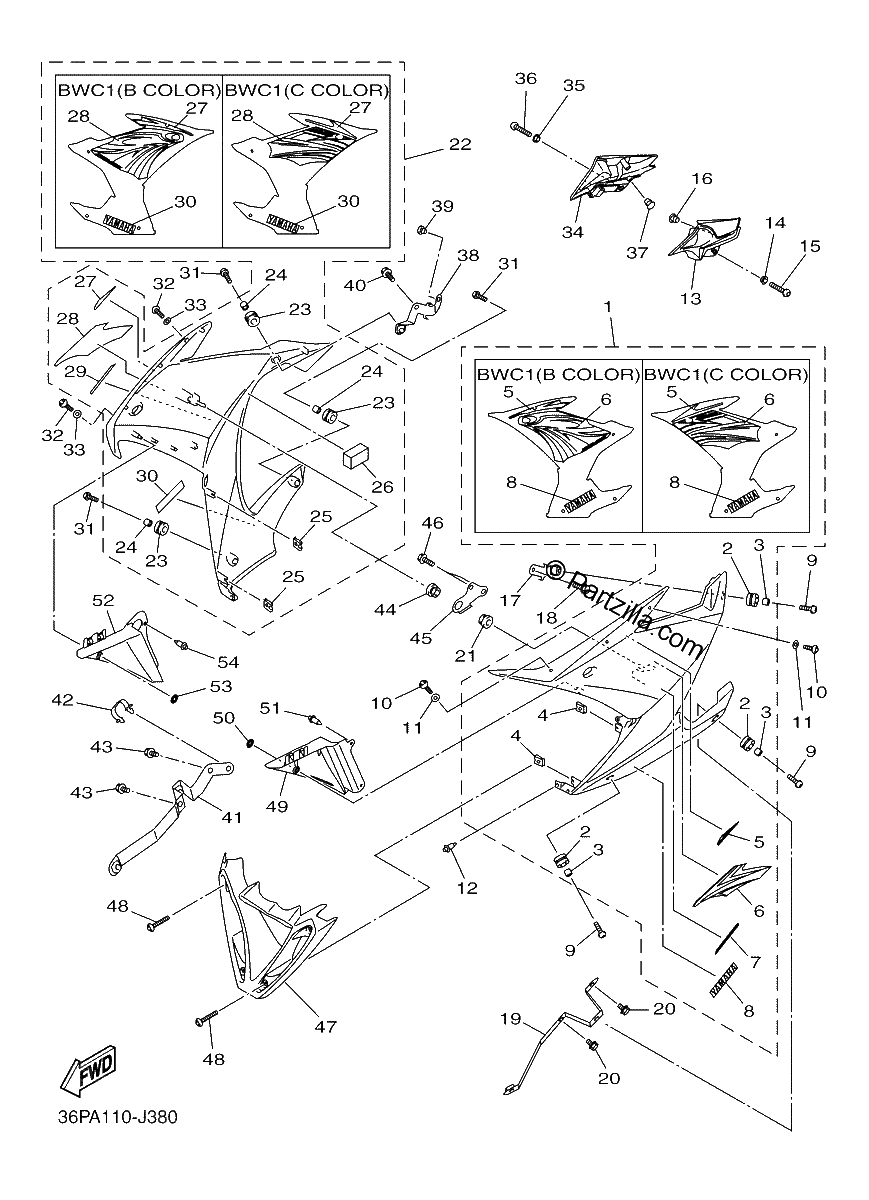

Diagrama de COWLING 2

Repuestos

#1
36P-Y283U-80-P3
PANEL ASSEMBLY 1 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#2
90480-14003-00
GROMMET
$7.43¢3 713
1
#3
90387-06260-00
COLLAR
$7.43¢3 713
1
#4
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#5
36P-2831Y-10-00
GRAPHIC, 14 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$53.22¢26 612
1
#6
36P-2832C-10-00
GRAPHIC, 16 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$237.40¢118 700
1
#8
36P-2153E-10-00
EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$15.69¢7 844
1
#9
90149-06302-00
SCREW
$5.11¢2 556
1
#10
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#11
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#12
90269-06008-00
RIVET
$8.80¢4 400
1
#13
36P-2171N-00-00
MOLE, SIDE COVER 3
$14.82¢7 413
1
#14
90387-06130-00
Collar
$8.63¢4 313
1
#15
90149-06302-00
SCREW
$5.11¢2 556
1
#16
90338-07043-00
PLUG
$6.55¢3 275
1
#17
36P-2833A-00-00
BRACKET 7
$22.84¢11 419
1
#18
95802-06014-00
Bolt, Flange
$2.65¢1 325
1
#19
36P-2836A-01-00
BRACKET 1
$42.39¢21 194
1
#20
90109-060E9-00
BOLT
$8.39¢4 194
1
#21
90480-01558-00
Grommet
$4.69¢2 344
1
#22
36P-Y283V-80-P3
PANEL ASSEMBLY 2 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#23
90480-14003-00
GROMMET
$7.43¢3 713
1
#24
90387-06260-00
COLLAR
$7.43¢3 713
1
#25
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#26
2C0-2162G-00-00
PLATE 1
$3.79¢1 894
1
#27
36P-2832B-10-00
GRAPHIC, 15 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
No Disponible
1
#28
36P-2832D-10-00
GRAPHIC 17 (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$251.36¢125 681
1
#30
36P-2153E-10-00
EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1) *{UR BWC1 (B COLOR) (PEARL WHITE/VIVID MAGENTA)}*
$15.69¢7 844
1
#30
36P-2153E-00-00
EMBLEM, YAMAHA (DEEP PURPLISH BLUE METALLIC C) *{UR DPBMC}*
$19.89¢9 944
1
#31
90149-06302-00
SCREW
$5.11¢2 556
1
#32
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#33
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#34
36P-2171R-00-00
MOLE, SIDE COVER 4
$14.82¢7 413
1
#35
90387-06130-00
Collar
$8.63¢4 313
1
#36
90149-06302-00
SCREW
$5.11¢2 556
1
#37
90338-07043-00
PLUG
$6.55¢3 275
1
#38
36P-2833E-00-00
BRACKET 8
$40.49¢20 244
1
#39
90338-07157-00
PLUG
$6.88¢3 438
1
#40
95802-06014-00
Bolt, Flange
$2.65¢1 325
1
#41
36P-2836E-01-00
BRACKET 2
$49.26¢24 631
1
#42
90464-24230-00
CLAMP
$6.91¢3 456
1
#43
90109-060E9-00
BOLT
$8.39¢4 194
1
#44
90480-01558-00
Grommet
$4.69¢2 344
1
#45
20S-21843-00-00
STAY, 4
$8.03¢4 013
1
#46
95822-06014-00
Bolt, Flange
$2.65¢1 325
1
#47
36P-22863-00-00
COVER, UNDER
$62.64¢31 319
1
#48
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#49
36P-2836N-00-00
PANEL, INNER 4
$27.46¢13 731
1
#50
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#51
90269-06008-00
RIVET
$8.80¢4 400
1
#52
36P-2836R-00-00
PANEL, INNER 5
$21.65¢10 825
1
#53
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#54
90269-06008-00
RIVET
$8.80¢4 400
1
