STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

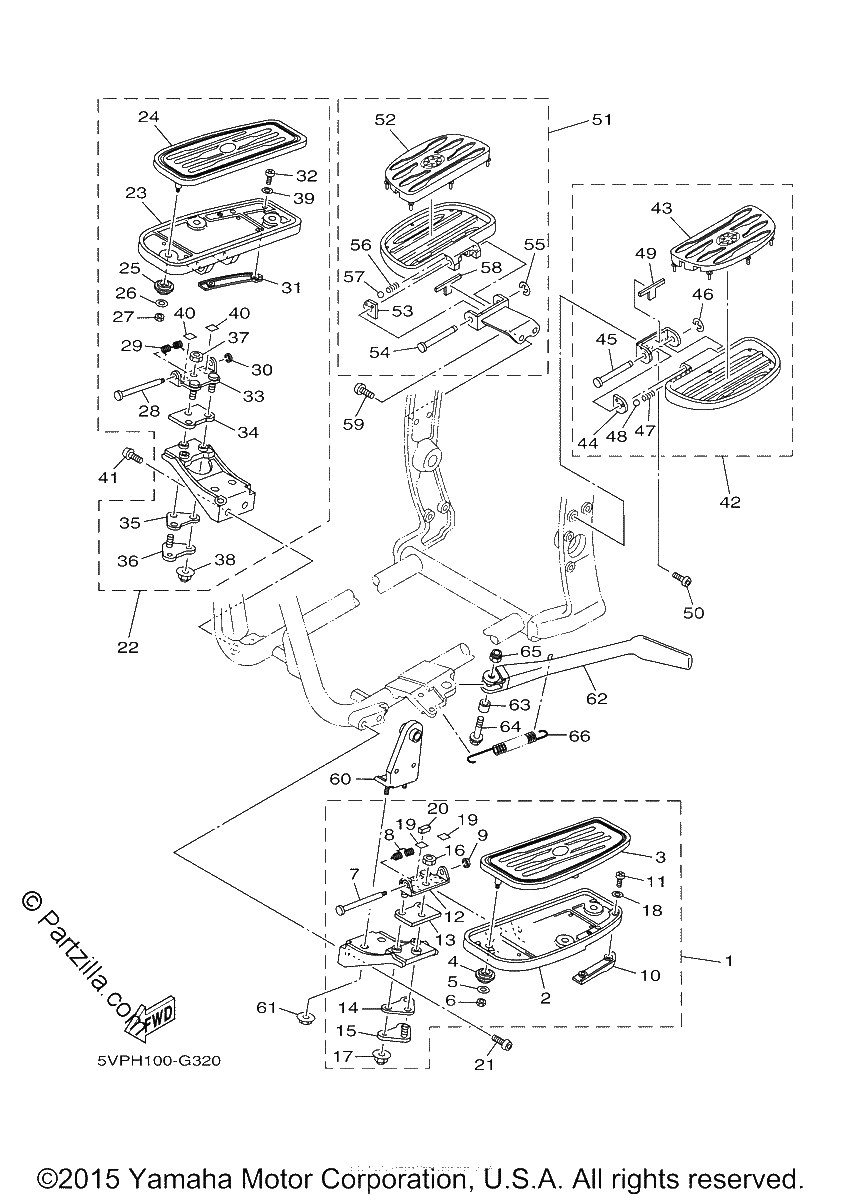

Diagrama de STAND FOOTREST

Repuestos

#1
5VN-27410-10-00
FRONT FOOTREST ASSY (LEFT)
$296.60¢148 298
1
#2
4NK-27451-10-00
FOOTREST
$65.25¢32 625
1
#3
4WM-27413-00-00
COVER, FOOTREST
$112.86¢56 430
1
#4
4WM-27414-00-00
DAMPER, FOOTREST
$5.58¢2 789
1
#5
90201-05033-00
WASHER, PLATE
$7.77¢3 887
1
#6
95617-05100-00
NUT, U
$7.30¢3 651
1
#7
3D8-27427-00-00
SHAFT
$6.73¢3 364
1
#8
4NK-27426-00-00
SPRING, RETURN
$6.95¢3 473
1
#9
99001-06600-00
CIRCLIP
$0.94¢471
1
#10
4WM-27496-00-00
MOLE 1
$59.96¢29 981
1
#11
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#12
5VN-27422-00-00
BRACKET, FOOTREST 2
$25.17¢12 587
1
#13
5VN-27414-00-00
DAMPER, FOOTREST
$7.38¢3 691
1
#14
5VN-27424-00-00
DAMPER, FOOTREST 2
$7.38¢3 691
1
#15
5VN-27123-00-00
PLATE, STOPPER
$13.54¢6 768
1
#16
95317-06600-00
NUT
$2.96¢1 478
1
#17
90176-06007-00
NUT, CROWN
$2.56¢1 282
1
#18
92907-05200-00
WASHER
$4.48¢2 242
1
#19
1D7-27485-00-00
SEAL
$4.23¢2 116
1
#20
5VN-2743E-00-00
STOPPER
$3.59¢1 794
1
#21
90111-10019-00
BOLT,HEX. SOCKET BUT
$3.76¢1 880
1
#22
5VN-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$296.60¢148 298
1
#23
4NK-27461-10-00
FOOTREST
$85.62¢42 809
1
#24
4WM-27423-00-00
COVER, FOOTREST
$77.80¢38 899
1
#25
4WM-27414-00-00
DAMPER, FOOTREST
$5.58¢2 789
1
#26
90201-05033-00
WASHER, PLATE
$7.77¢3 887
1
#27
95617-05100-00
NUT, U
$7.30¢3 651
1
#28
3D8-27427-00-00
SHAFT
$6.73¢3 364
1
#29
4NK-27426-00-00
SPRING, RETURN
$6.95¢3 473
1
#30
99001-06600-00
CIRCLIP
$0.94¢471
1
#31
4WM-27497-00-00
MOLE 2
$59.93¢29 963
1
#32
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#33
5VN-27422-00-00
BRACKET, FOOTREST 2
$25.17¢12 587
1
#34
5VN-27414-00-00
DAMPER, FOOTREST
$7.38¢3 691
1
#35
5VN-27424-00-00
DAMPER, FOOTREST 2
$7.38¢3 691
1
#36
5VN-27123-00-00
PLATE, STOPPER
$13.54¢6 768
1
#37
95317-06600-00
NUT
$2.96¢1 478
1
#38
90176-06007-00
NUT, CROWN
$2.56¢1 282
1
#39
4YE-27437-01-00
WASHER, SPECIAL
$5.58¢2 789
1
#39
92907-05200-00
WASHER
$4.48¢2 242
1
#40
1D7-27485-00-00
SEAL
$4.23¢2 116
1
#41
90111-10019-00
BOLT,HEX. SOCKET BUT
$3.76¢1 880
1
#42
2D9-27430-00-00
REAR FOOTREST ASSY 1
$183.63¢91 816
1
#43
4YE-27433-00-00
COVER, REAR FOOTREST
No Disponible
1
#44
4YE-27437-01-00
WASHER, SPECIAL
$5.58¢2 789
1
#45
4YE-27427-01-00
SHAFT
$3.69¢1 846
1
#46
99001-06600-00
CIRCLIP
$0.94¢471
1
#47
90501-13720-00
SPRING, COMPRESSION
$7.30¢3 651
1
#48
93501-04011-00
BALL
$6.87¢3 433
1
#49
2D9-2743E-00-00
STOPPER
$2.78¢1 392
1
#50
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$7.95¢3 973
1
#51
2D9-27440-00-00
REAR FOOTREST ASSY 2
$183.63¢91 816
1
#52
4YE-27433-00-00
COVER, REAR FOOTREST
No Disponible
1
#54
4YE-27427-01-00
SHAFT
$3.69¢1 846
1
#55
99001-06600-00
CIRCLIP
$0.94¢471
1
#56
90501-13720-00
SPRING, COMPRESSION
$7.30¢3 651
1
#57
93501-04011-00
BALL
$6.87¢3 433
1
#58
2D9-2743E-00-00
STOPPER
$2.78¢1 392
1
#59
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$7.95¢3 973
1
#60
5VN-27443-00-00
BRACKET 3
$105.22¢52 613
1
#61
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#62
4WM-27311-00-00
STAND, SIDE
$252.62¢126 310
1
#63
90387-1007K-00
COLLAR
$19.53¢9 763
1
#64
90105-10778-00
BOLT, FLANGE
$4.48¢2 242
1
#65
90185-10037-00
NUT,SELF-LOCKING
$7.30¢3 651
1
#66
90506-29358-00
SPRING, TENSION
$11.73¢5 865
1
