CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

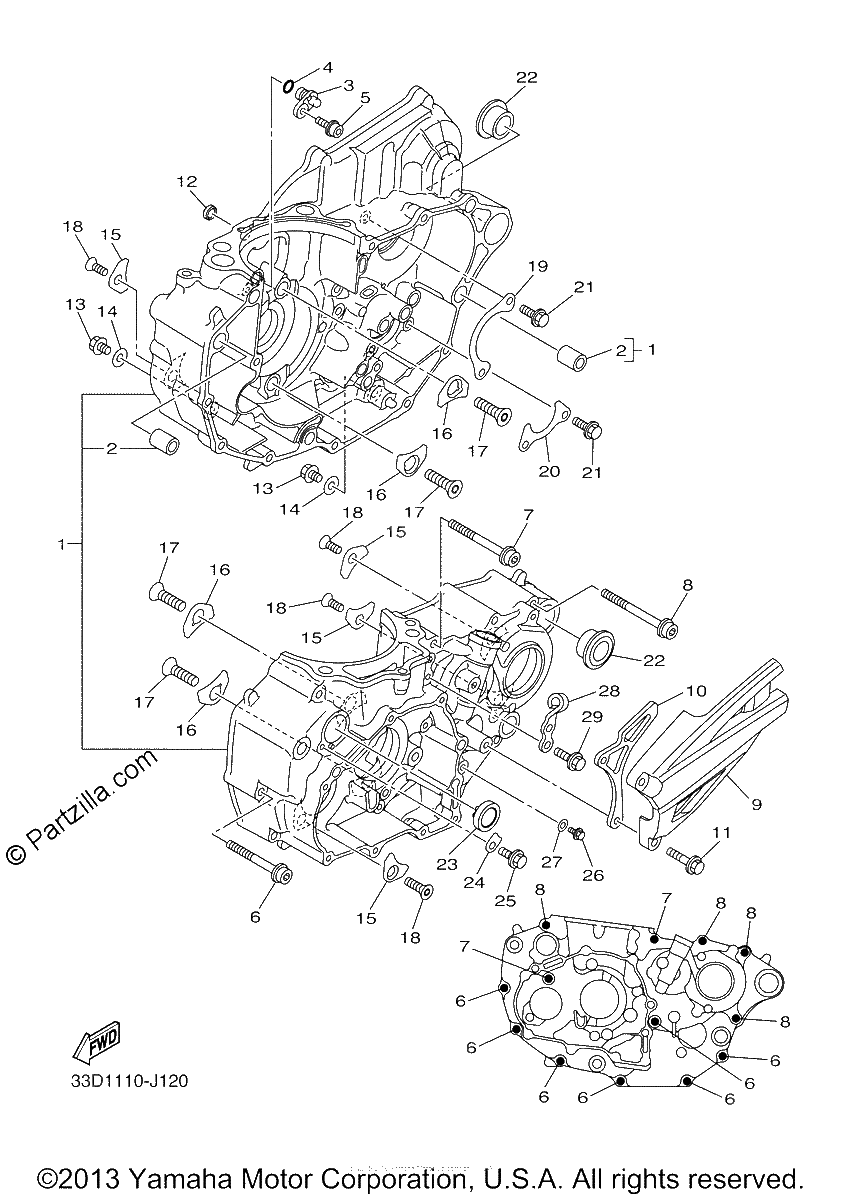

Diagrama de CRANKCASE

Repuestos

#1
33D-15100-09-00
CRANKCASE ASSY
$1560.29¢780 144
1
#2
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#3
17D-15155-00-00
NOZZLE 3
$58.72¢29 362
1
#4
93210-07001-00
O-RING
No Disponible
1
#5
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#6
90110-06362-00
BOLT, HEXAGON SOCKET HEAD
$3.90¢1 950
1
#7
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.99¢1 494
1
#8
90110-06364-00
BOLT, HEXAGON SOCKET HEAD
$2.79¢1 394
1
#9
33D-15421-00-00
COVER, CRANKCASE 2
$35.74¢17 869
1
#10
2S2-17466-00-00
GUIDE, CHAIN
$17.09¢8 544
1
#11
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#12
90430-08002-00
GASKET
$8.85¢4 425
1
#13
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#14
90201-08087-00
WASHER, PLATE | AP INCL. IN BOTTOM END KIT
$3.74¢1 869
1
#15
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#16
18P-15383-00-00
PLATE, BEARING COVER
$8.03¢4 013
1
#17
90151-08003-00
SCREW, COUNTERSUNK
$6.60¢3 300
1
#18
90151-06052-00
SCREW, COUNTERSUNK (replaces 90149-06074-00)
$7.60¢3 800
1
#19
2S2-15388-00-00
PLATE, BEARING COVER
$5.88¢2 938
1
#20
33D-18562-00-00
PLATE, STOPPER 2
$4.94¢2 469
1
#21
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#22
90387-17015-00
Collar
$27.52¢13 763
1
#23
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#24
5XC-15118-00-00
HOLDER
$4.91¢2 456
1
#25
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#26
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#27
90430-06014-00
GASKET
$8.25¢4 125
1
#28
33D-15441-00-00
HOLDER, CLUTCH CABLE
$17.40¢8 700
1
#29
90105-06100-00
BOLT, FLANGE (replaces 90105-06099-00)
$6.64¢3 319
1
