RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

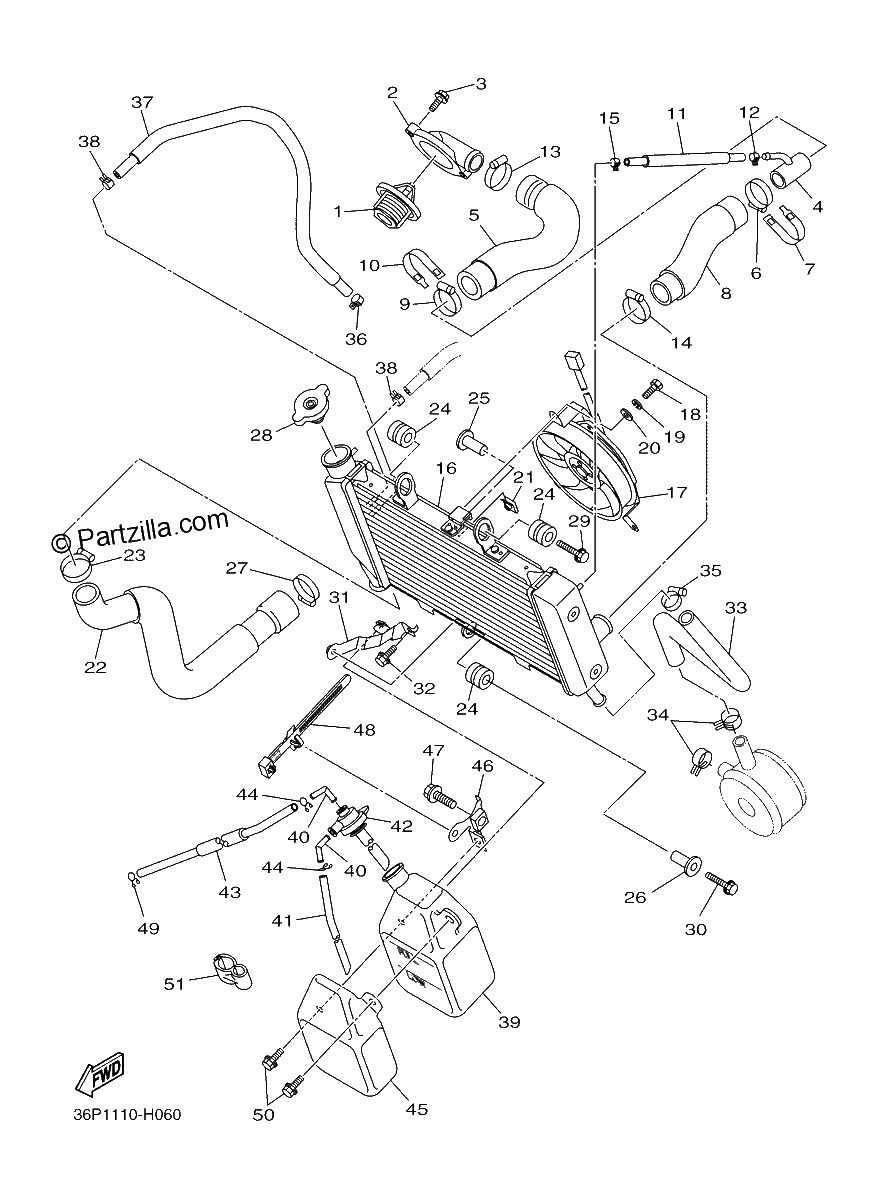

Diagrama de RADIATOR HOSE

Repuestos

#1
5SL-12410-00-00
THERMOSTAT ASSY
$59.59¢29 794
1
#2
5VX-12413-00-00
COVER, THERMOSTAT
$68.67¢34 338
1
#3
90105-06164-00
Bolt, Flange
$3.31¢1 656
1
#4
20S-12582-01-00
JOINT, HOSE 2
$44.66¢22 331
1
#5
20S-12578-00-00
HOSE 3
$25.04¢12 519
1
#6
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#7
20S-1246E-00-00
COVER 2
$3.06¢1 531
1
#8
20S-12551-00-00
HOSE 7
$33.22¢16 612
1
#9
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#10
20S-1246E-00-00
COVER 2
$3.06¢1 531
1
#11
90445-12012-00
HOSE
$6.55¢3 275
1
#12
90467-11090-00
CLIP
$8.24¢4 119
1
#13
90450-32006-00
HOSE CLAMP ASSY
$18.20¢9 100
1
#14
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#15
90467-11090-00
CLIP
$8.24¢4 119
1
#16
20S-12461-01-00
RADIATOR COMP
$761.24¢380 619
1
#17
20S-12405-00-00
BLOWER ASSY
$426.48¢213 238
1
#18
97307-06012-00
bolt
$3.11¢1 556
1
#19
92907-06100-00
WASHER, SPRING
$1.23¢613
1
#20
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#21
1AA-12535-00-00
PLATE
$14.65¢7 325
1
#22
20S-12579-00-00
HOSE 4
$48.22¢24 112
1
#23
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#24
90480-15363-00
GROMMET
$7.34¢3 669
1
#25
90387-0614M-00
COLLAR
$9.83¢4 913
1
#26
90387-0614M-00
COLLAR
$9.83¢4 913
1
#27
90450-32006-00
HOSE CLAMP ASSY
$18.20¢9 100
1
#28
22W-12462-00-00
CAP, RADIATOR
$67.75¢33 875
1
#29
95802-06025-00
BOLT, FLANGE
$0.30¢150
1
#30
95802-06030-00
Bolt, Flange
$4.65¢2 325
1
#31
20S-1244E-00-00
BRACKET 1
$22.25¢11 125
1
#32
95822-06012-00
Bolt, Flange
$1.79¢894
1
#33
20S-12589-00-00
HOSE 6
$14.90¢7 450
1
#34
90467-200A0-00
CLIP
$9.45¢4 725
1
#35
90450-22017-00
HOSE CLAMP ASSY
$10.29¢5 144
1
#36
90467-11090-00
CLIP
$8.24¢4 119
1
#37
90445-12009-00
HOSE
$20.80¢10 400
1
#38
90467-11090-00
CLIP
$8.24¢4 119
1
#39
4P5-21871-00-00
TANK, RECOVERY
$54.75¢27 375
1
#40
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#41
90445-081F2-00
HOSE (L200)
$4.00¢2 000
1
#42
20S-21875-00-00
CAP
$17.16¢8 581
1
#43
90445-08025-00
HOSE
$20.99¢10 494
1
#44
90467-08075-00
CLIP
$7.34¢3 669
1
#45
4P5-2172W-00-00
COVER
$60.41¢30 206
1
#46
4P5-21873-00-00
BRACKET, RECOVERY TANK
$12.01¢6 006
1
#47
95822-10020-00
Bolt, Flange
$6.25¢3 125
1
#48
90464-07012-00
CLAMP
$6.50¢3 250
1
#49
90467-08075-00
CLIP
$7.34¢3 669
1
#50
90105-060A6-00
Bolt, Flange
$1.79¢894
1
#51
90464-10233-00
CLAMP
$7.56¢3 781
1
