CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

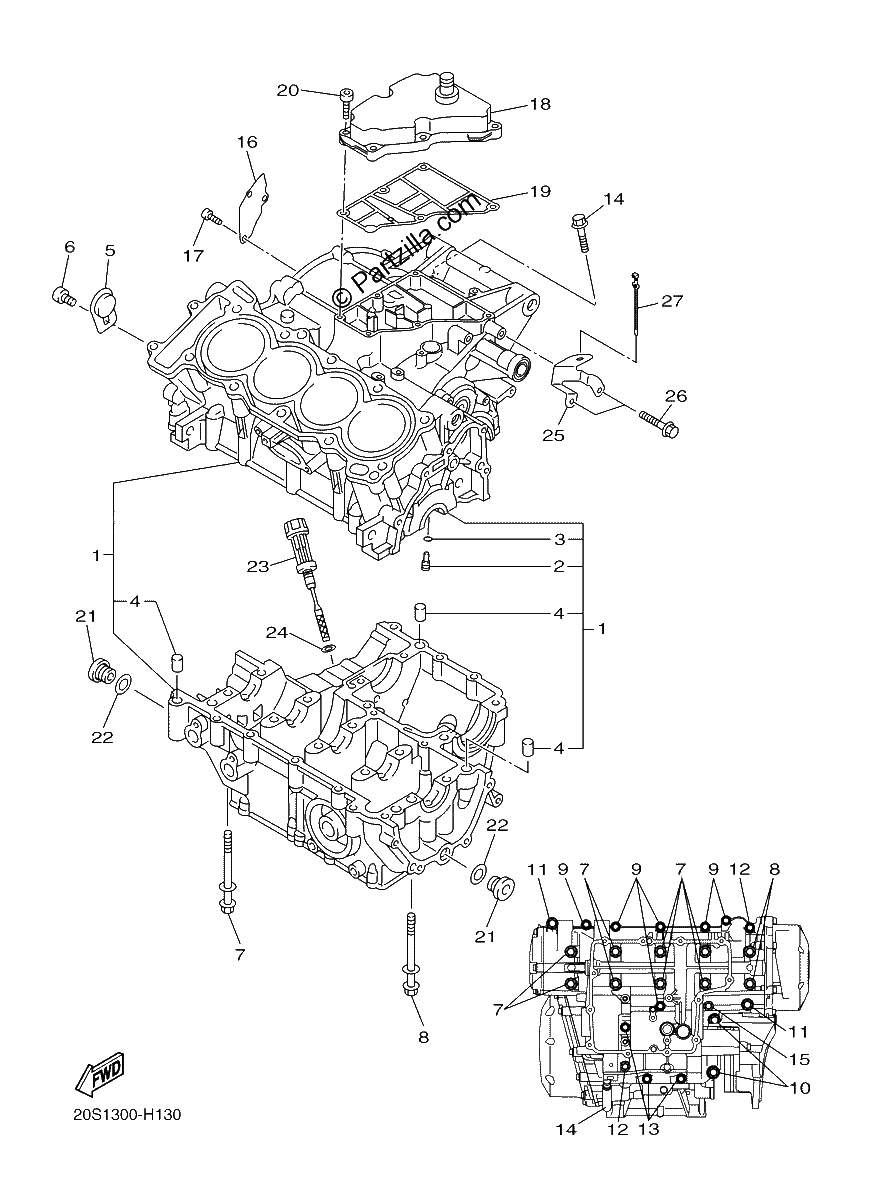

Diagrama de CRANKCASE

Repuestos

#1
20S-15100-01-00
Crankcase Assy
$2319.99¢1 159 994
1
#2
5EB-15155-00-00
NOZZLE 3
$14.65¢7 325
1
#3
93210-04092-00
O-RING
$3.44¢1 719
1
#4
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#5
5SL-15189-00-00
PLUG
$3.79¢1 894
1
#6
90149-06082-00
SCREW
$7.34¢3 669
1
#7
90119-08083-00
BOLT, WITH WASHER
$8.03¢4 013
1
#8
90119-08084-00
BOLT, WITH WASHER
$14.60¢7 300
1
#9
95812-06055-00
BOLT, FLANGE
$1.75¢875
1
#10
95812-08065-00
Bolt, Flange
$4.20¢2 100
1
#11
90109-06168-00
BOLT
No Disponible
1
#12
95812-06065-00
BOLT, FLANGE
$6.14¢3 069
1
#13
95812-06045-00
Bolt, Flange
$7.35¢3 675
1
#14
95812-06100-00
BOLT, FLANGE
$2.86¢1 431
1
#15
90105-06145-00
Bolt, Flange
$2.31¢1 156
1
#16
20S-11165-00-00
PLATE, BREATHER
$4.00¢2 000
1
#17
90149-06082-00
SCREW
$7.34¢3 669
1
#18
20S-15413-00-00
COVER
$83.56¢41 781
1
#19
20S-15462-00-00
GASKET, CRANKCASE COVER 3
$4.16¢2 081
1
#20
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#21
36Y-15189-00-00
PLUG
$14.34¢7 169
1
#22
93210-16325-00
O-RING
$6.99¢3 494
1
#23
5EB-15362-10-00
PLUG, OIL LEVEL
$42.71¢21 356
1
#24
93210-09165-00
O-RING
$6.91¢3 456
1
#25
20S-15544-00-00
STAY 1
$11.57¢5 788
1
#26
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#27
90464-34002-00
CLAMP
$1.98¢988
1
