FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

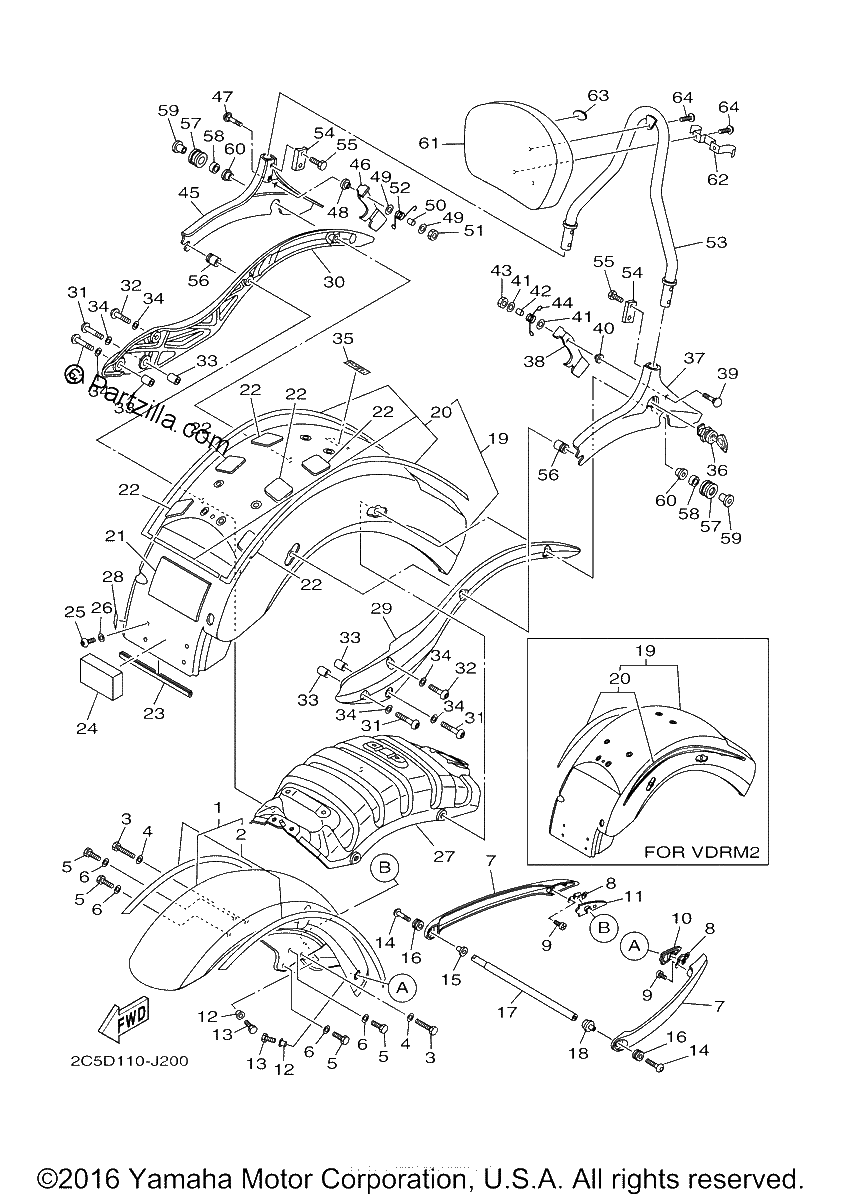

Diagrama de FENDER

Repuestos

#1
1D7-Y2151-J1-P0
FRONT FENDER ASSY | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$1094.79¢547 394
1
#2
4P0-21570-40-00
GRAPHIC SET, FRONT FENDER | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$260.30¢130 151
1
#3
97017-08030-00
BOLT
$7.51¢3 755
1
#4
92907-08600-00
WASHER, PLATE
$2.75¢1 374
1
#5
97017-08016-00
BOLT
$6.80¢3 398
1
#6
92907-08600-00
WASHER, PLATE
$2.75¢1 374
1
#7
1D7-21562-01-00
STAY, FENDER 3
$147.57¢73 784
1
#8
1D7-21512-00-00
BRACKET, FENDER
$5.34¢2 668
1
#9
97707-40610-00
SCREW,TAPPING (replaces 97702-40510-00)
$7.31¢3 657
1
#10
1D7-21541-00-00
DAMPER 1
$4.15¢2 076
1
#11
1D7-21542-00-00
DAMPER 2
$10.26¢5 129
1
#12
90387-087L0-00
COLLAR
$6.76¢3 381
1
#13
97012-06014-00
BOLT
$6.83¢3 415
1
#14
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
1
#15
90387-06125-00
COLLAR
$6.53¢3 266
1
#16
90480-14329-00
GROMMET
$7.30¢3 651
1
#17
1D7-21544-00-00
COLLAR 1
$82.19¢41 095
1
#18
1D7-21545-00-00
PLATE 3
No Disponible
1
#19
1D7-Y2161-M0-P0
REAR FENDER COMP. | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$1590.44¢795 219
1
#20
2C5-2165A-00-00
GRAPHIC SET,REAR FENDER | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$390.15¢195 074
1
#21
5PX-21779-00-00
DAMPER, LOCATING 2
$4.23¢2 116
1
#22
5PX-21669-01-00
SEAL
$10.87¢5 434
1
#23
1D7-24188-00-00
MOLD, FUEL TANK
$10.68¢5 342
1
#24
1D7-21639-00-00
DAMPER 2
$5.92¢2 961
1
#25
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#26
90201-06036-00
WASHER, PLATE
$6.87¢3 433
1
#27
1D7-21643-00-00
STAY, REAR
$242.85¢121 423
1
#28
3FY-21575-01-00
SEAL 1
$10.14¢5 071
1
#29
1D7-21613-00-00
STAY, FENDER 1 | UR FOR DPBMX
$1337.44¢668 719
1
#30
1D7-21614-00-00
STAY, FENDER 2 | UR FOR DPBMX
$1486.94¢743 469
1
#31
92014-10050-00
BOLT, BUTTON HEAD
$8.28¢4 140
1
#32
92014-10040-00
BOLT, BUTTON HEAD
$5.65¢2 823
1
#33
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#34
90201-10M63-00
WASHER, PLATE
$12.89¢6 446
1
#35
3WF-2153E-70-00
EMBLEM, YAMAHA
$4.91¢2 455
1
#36
2C5-28409-01-00
LOCK ASSY. 2
$328.49¢164 243
1
#37
2C5-F846H-00-00
PLATE,4
No Disponible
1
#38
2C5-F8488-00-00
HOOK
No Disponible
1
#39
2C5-F844M-00-00
SHAFT 1
No Disponible
1
#39
2C5-F8426-00-00
BRACKET 1
No Disponible
1
#40
2C5-F8467-00-00
SPACER
No Disponible
1
#41
2C5-F8319-00-00
WASHER
No Disponible
1
#42
2C5-F849T-00-00
PLATE, GUIDE
No Disponible
1
#43
95680-06100-00
NUT, U
$9.50¢4 749
1
#44
2C5-F8489-00-00
SPRING
No Disponible
1
#45
2C5-F847H-00-00
PLATE 5
No Disponible
1
#46
2C5-F8498-00-00
HOOK 2
No Disponible
1
#47
2C5-F844M-00-00
SHAFT 1
No Disponible
1
#48
2C5-F8467-00-00
SPACER
No Disponible
1
#49
2C5-F8319-00-00
WASHER
No Disponible
1
#50
2C5-F849T-00-00
PLATE, GUIDE
No Disponible
1
#51
95680-06100-00
NUT, U
$9.50¢4 749
1
#52
2C5-F848A-00-00
SPRING 2
No Disponible
1
#54
2C5-F8417-00-00
PLATE
No Disponible
1
#55
97014-08020-00
BOLT, HEXAGON
No Disponible
1
#56
2C5-F842L-00-00
PIN, STOPPER
No Disponible
1
#57
2C5-F845L-00-00
STOPPER, OPEN
No Disponible
1
#58
2C5-F836T-00-00
DAMPER, LOCATING 1
No Disponible
1
#59
2C5-F8329-00-00
SPACER
No Disponible
1
#60
2C5-F8425-00-00
DAMPER 3
No Disponible
1
#61
1D6-2840F-10-00
BACK REST ASSY
$198.72¢99 360
1
#62
5GA-2164G-00-00
STAY 2
$138.68¢69 339
1
#63
5GA-24786-01-00
EMBLEM
$50.22¢25 110
1
#64
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
