FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

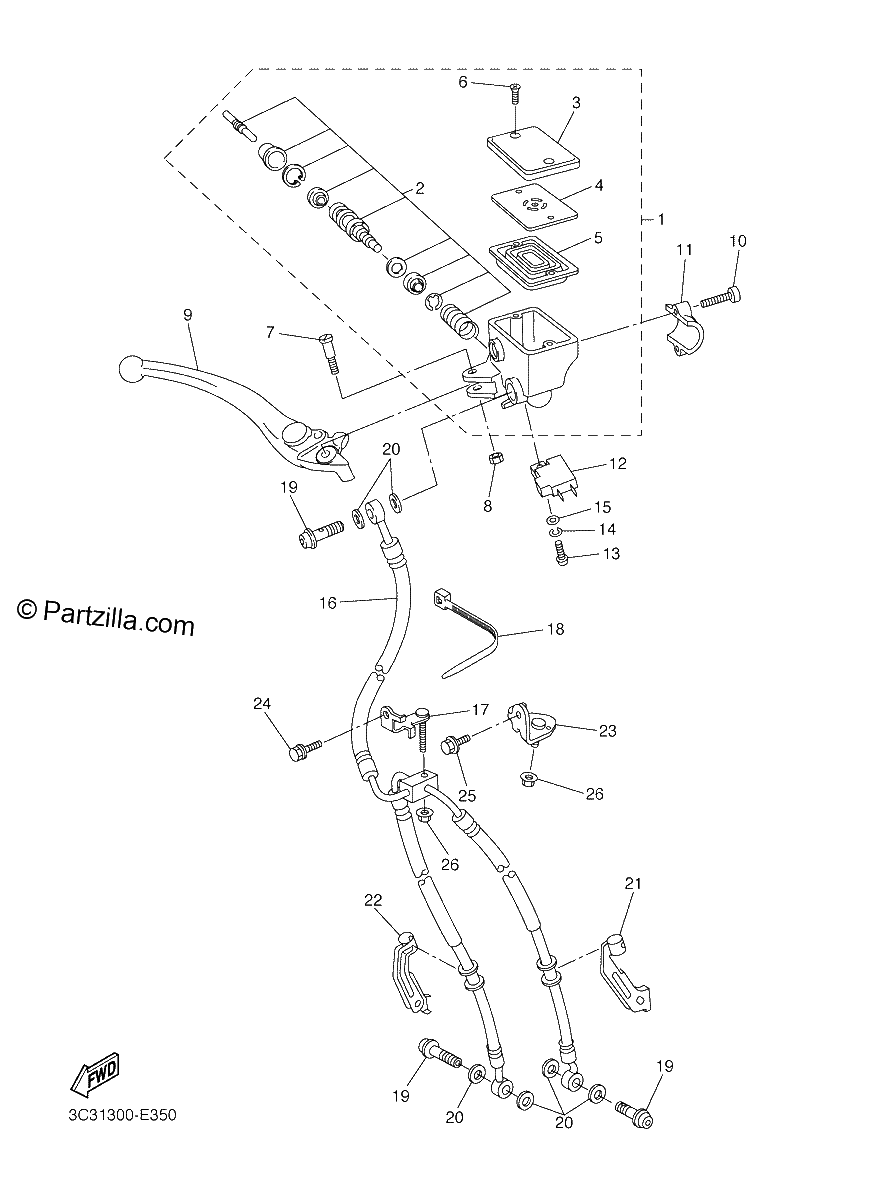

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
3C3-W2587-00-00
MASTER CYLINDER SUB ASSY
$227.08¢113 539
1
#2
2D1-W0041-00-00
CYLINDER KIT, MASTER
$68.66¢34 328
1
#3
5VS-25852-00-00
CAP, RESERVOIR
$24.32¢12 161
1
#4
5VS-25855-00-00
BUSH, DIAPHRAGM
$15.65¢7 826
1
#5
20S-25854-00-00
DIAPHRAGM, RESERVOIR
$24.74¢12 368
1
#6
5VS-2589H-00-00
SCREW
$3.71¢1 857
1
#7
5VS-2589F-00-00
BOLT, LEVER
$13.48¢6 739
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#9
5VS-83922-00-00
LEVER 2
$80.90¢40 451
1
#10
5VS-26332-00-00
BOLT
$4.30¢2 151
1
#11
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$34.79¢17 394
1
#12
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$40.23¢20 114
1
#13
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#14
92902-04100-00
WASHER, SPRING
$0.68¢339
1
#15
92902-04600-00
WASHER, PLATE
$1.10¢552
1
#16
3C3-25872-00-00
HOSE, BRAKE 1
$181.70¢90 850
1
#17
2D1-23857-00-00
HOLDER
$11.87¢5 934
1
#18
3MA-82591-00-00
BAND
$6.95¢3 473
1
#19
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#20
90430-10005-00
GASKET
$7.72¢3 858
1
#21
2D1-25875-00-00
HOLDER, BRAKE HOSE 1
$10.29¢5 146
1
#22
2D1-25876-00-00
HOLDER, BRAKE HOSE 2
$12.45¢6 227
1
#23
3C3-23378-00-00
BRACKET, HORN
$15.12¢7 561
1
#24
95812-06012-00
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
1
#25
90105-06085-00
BOLT, FLANGE
$1.64¢822
1
#26
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
