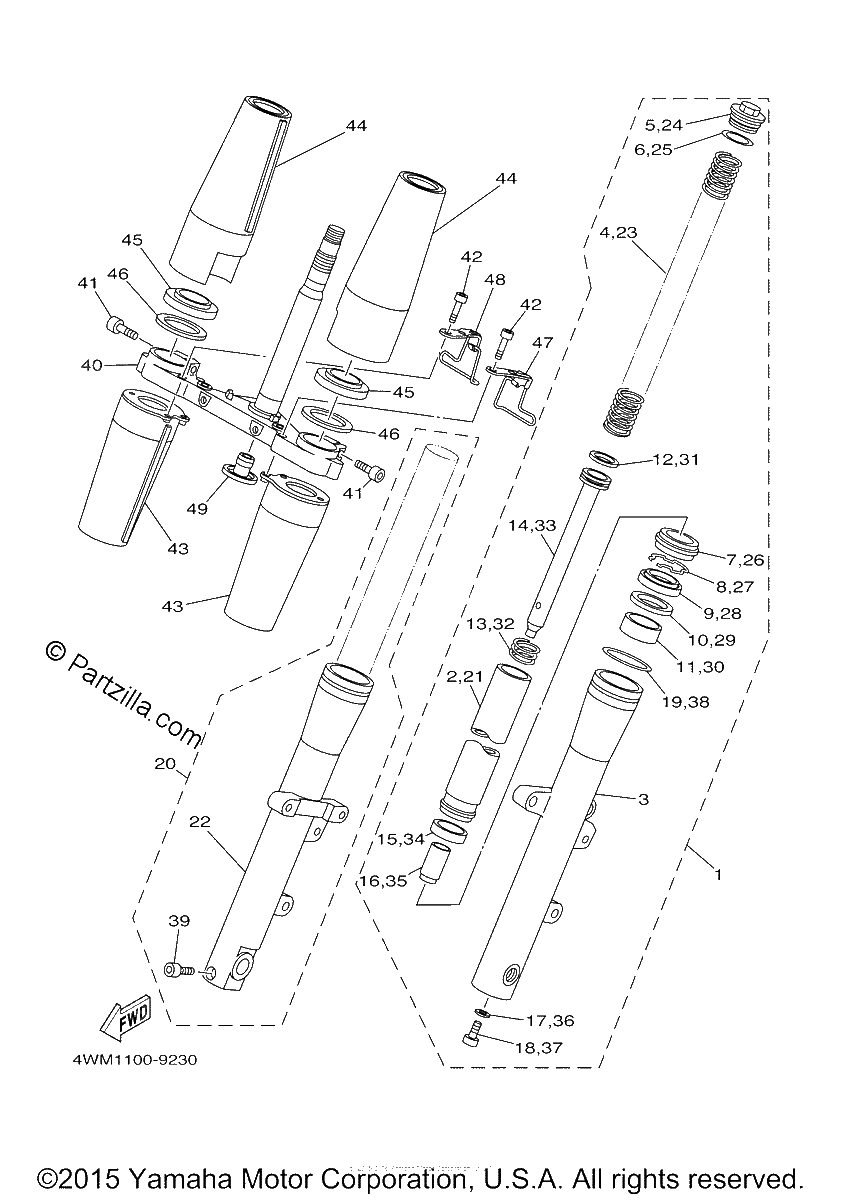

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1465.09¢732 544
#2
INNER TUBE COMP. 1
$257.39¢128 696
#3
TUBE, OUTER (LEFT)
$1160.34¢580 169
#4
SPRING, FRONT FORK
$58.27¢29 135
#5
BOLT, CAP
$109.09¢54 544
#6
O-RING
$7.08¢3 542
#7
SEAL, DUST
$19.14¢9 568
#8
RING, SNAP
$20.39¢10 195
#9
OIL SEAL
$20.83¢10 413
#10
WASHER, OIL SEAL
$9.56¢4 778
#11
METAL, SLIDE 1
$22.37¢11 184
#12
RING, PISTON
$9.56¢4 778
#13
SPRING, REBOUND
No Disponible
#14
PISTON, FRONT FORK
$58.72¢29 360
#15
METAL, SLIDE 2
$9.13¢4 566
#16
SPACER, OIL LOCK
$18.26¢9 131
#17
GASKET, DRAIN PLUG
$9.06¢4 531
#18
BOLT, HEXAGON SOCKET HEAD
$6.09¢3 048
#19
GUIDE, BOOT
$20.53¢10 264
#20
FRONT FORK ASSY (R.H)
$1465.09¢732 544
#21
INNER TUBE COMP. 1
$257.39¢128 696
#22
TUBE, OUTER (RIGHT)
$1170.69¢585 344
#23
SPRING, FRONT FORK
$58.27¢29 135
#24
BOLT, CAP
$109.09¢54 544
#25
O-RING
$7.08¢3 542
#26
SEAL, DUST
$19.14¢9 568
#27
RING, SNAP
$20.39¢10 195
#28
OIL SEAL
$20.83¢10 413
#29
WASHER, OIL SEAL
$9.56¢4 778
#30
METAL, SLIDE 1
$22.37¢11 184
#31
RING, PISTON
$9.56¢4 778
#32
SPRING, REBOUND
No Disponible
#33
PISTON, FRONT FORK
$58.72¢29 360
#34
METAL, SLIDE 2
$9.13¢4 566
#35
SPACER, OIL LOCK
$18.26¢9 131
#36
GASKET, DRAIN PLUG
$9.06¢4 531
#37
BOLT, HEXAGON SOCKET HEAD
$6.09¢3 048
#38
GUIDE, BOOT
$20.53¢10 264
#39
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#40
UNDER BRACKET COMP.
$531.06¢265 529
#41
BOLT
$6.75¢3 375
#42
BOLT, HEXAGON SOCKET HEAD
$2.82¢1 409
#43
COVER, UNDER 1
$301.61¢150 805
#44
COVER, UPPER 1
$350.68¢175 341
#45
GASKET
$27.47¢13 737
#46
WASHER, FELT
$17.62¢8 809
#47
HOLDER, BRAKE HOSE 2
$24.46¢12 230
#48
HOLDER, BRAKE HOSE
$34.74¢17 371
#49
COVER, UNDER 1
$13.48¢6 739
