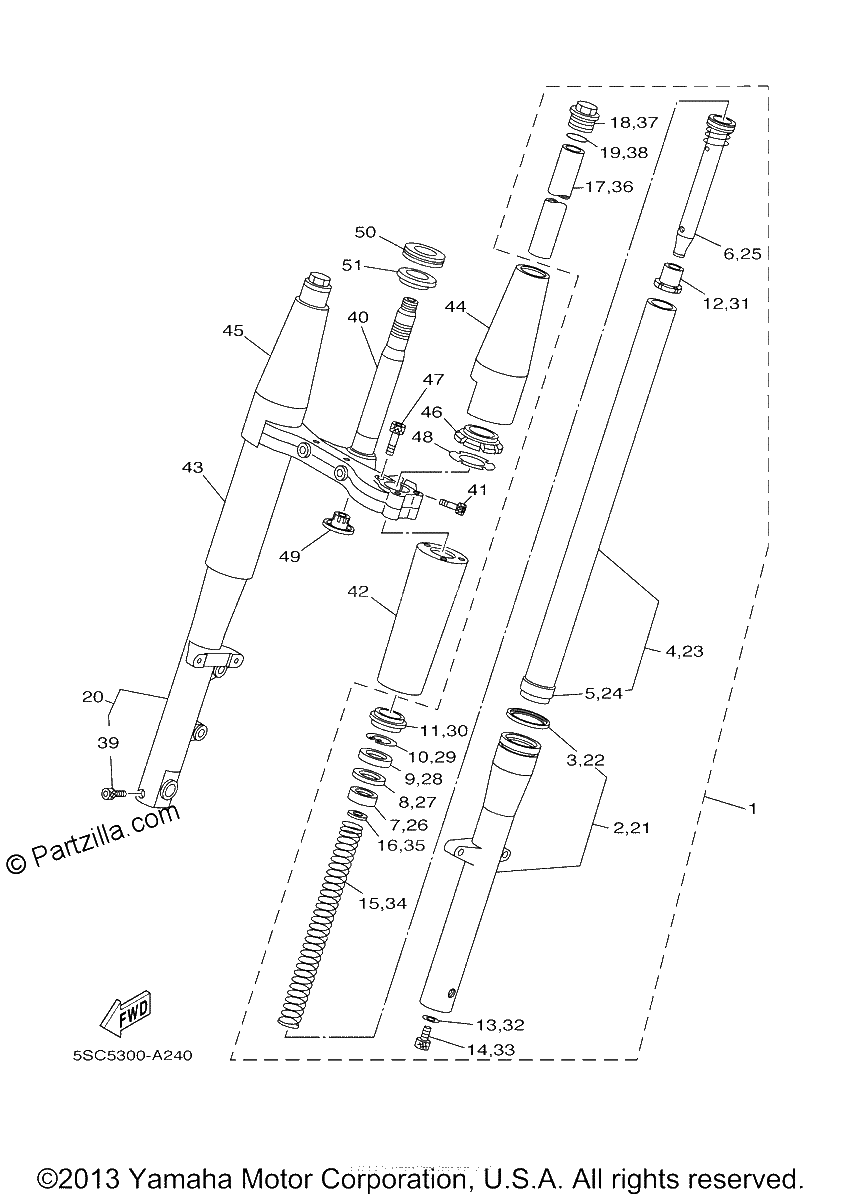

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$414.92¢207 460
#2
TUBE, OUTER (LEFT)
$344.67¢172 333
#3
GUIDE, BOOT
$7.15¢3 577
#4
INNER TUBE COMP.1
$225.05¢112 527
#5
PISTON,FRONT FORK
$21.36¢10 678
#6
CYLINDER COMP., FRONT FORK
$111.32¢55 660
#7
METAL,SLIDE 1
$32.08¢16 042
#8
WASHER, OIL SEAL
$24.18¢12 092
#9
OIL SEAL
$26.59¢13 294
#10
RING, SNAP
$7.24¢3 622
#11
SEAL, DUST
$21.36¢10 678
#12
SPINDLE, TAPER
$36.17¢18 084
#13
GASKET | (KYB)
$15.72¢7 860
#14
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#15
SPRING, FRONT FORK
$53.06¢26 531
#16
WASHER, SPRING UPPER
$7.28¢3 640
#17
SPACER
$15.63¢7 814
#18
BOLT, cap
$46.98¢23 489
#19
O-Ring
$7.04¢3 519
#20
FRONT FORK ASSY (R.H)
$414.92¢207 460
#21
TUBE, OUTER (RIGHT)
$346.35¢173 173
#22
GUIDE, BOOT
$7.15¢3 577
#23
INNER TUBE COMP.1
$225.05¢112 527
#24
PISTON,FRONT FORK
$21.36¢10 678
#25
CYLINDER COMP., FRONT FORK
$111.32¢55 660
#26
METAL,SLIDE 1
$32.08¢16 042
#27
WASHER, OIL SEAL
$24.18¢12 092
#28
OIL SEAL
$26.59¢13 294
#29
RING, SNAP
$7.24¢3 622
#30
SEAL, DUST
$21.36¢10 678
#31
SPINDLE, TAPER
$36.17¢18 084
#32
GASKET | (KYB)
$15.72¢7 860
#33
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#34
SPRING, FRONT FORK
$53.06¢26 531
#35
WASHER, SPRING UPPER
$7.28¢3 640
#36
SPACER
$15.63¢7 814
#37
BOLT, cap
$46.98¢23 489
#38
O-Ring
$7.04¢3 519
#39
BOLT (3JP)
$5.75¢2 875
#40
UNDER BRACKET COMP.
$430.44¢215 223
#41
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#42
COVER, UNDER 1
$191.25¢95 623
#43
COVER, LOWER 2
$186.30¢93 150
#44
COVER, UPPER 1
$223.41¢111 705
#45
COVER, UPPER 2
$223.41¢111 705
#46
GASKET
$14.60¢7 302
#47
BOLT, SPECIAL
No Disponible
#48
WASHER, FELT
$14.06¢7 032
#49
COVER, UNDER 1
$13.48¢6 739
#50
BEARING
$60.89¢30 446
#51
SEAL, STEERING
$23.48¢11 742
