FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

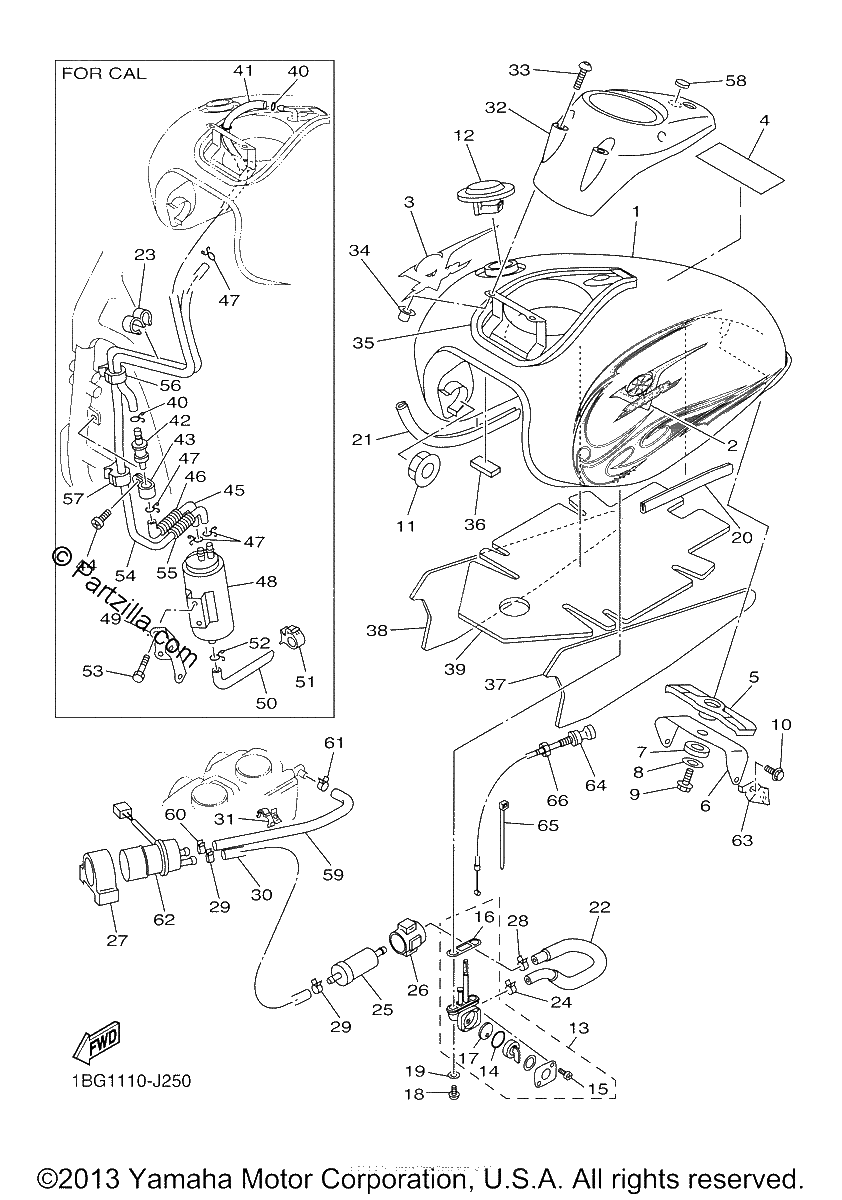

Diagrama de FUEL TANK

Repuestos

#0
5SC-Y2410-10-X5
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1129.99¢564 994
1
#0
4NK-24602-20-00
CAP ASSY
$136.76¢68 381
1
#1
5SC-Y2410-30-W6
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1129.99¢564 994
1
#2
5FB-2416B-01-00
EMBLEM
$71.51¢35 756
1
#3
5FB-2417B-01-00
EMBLEM
$71.51¢35 756
1
#4
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#5
4TR-24182-00-00
DAMPER, LOCATING 2
$19.26¢9 631
1
#6
4TR-2413Y-00-00
BRACKET, TANK FITTING
$16.32¢8 163
1
#7
4TR-24183-00-00
DAMPER, LOCATING 3
$7.91¢3 956
1
#8
90209-06011-00
WASHER
$4.86¢2 431
1
#9
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#10
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#11
4H7-24181-00-00
DAMPER, LOCATING 1
$6.52¢3 262
1
#12
5BN-24602-10-00
CAP ASSY
$217.26¢108 631
1
#13
21V-24500-20-00
FUEL COCK ASSY 1
$55.98¢27 988
1
#14
3AJ-24534-01-00
SEAL, COCK
$11.10¢5 550
1
#15
98517-03008-00
SCREW, PAN HEAD
$3.26¢1 631
1
#16
4X8-24512-00-00
O-RING
$7.97¢3 988
1
#17
3AC-24523-00-00
VALVE PACKING
$13.81¢6 906
1
#18
90149-06011-00
SCREW,SPEC'L SHAPE
$1.95¢975
1
#19
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#20
1FK-2171L-00-00
MOLE, SIDE COVER 1
$25.19¢12 594
1
#21
1HX-24188-01-00
MOLD, FUEL TANK
$21.23¢10 613
1
#22
4TR-24313-10-00
PIPE 3
$64.55¢32 275
1
#23
90464-09M31-00
CLAMP
$7.36¢3 681
1
#24
90467-10038-00
CLIP
$2.40¢1 200
1
#25
1FK-24560-10-00
FILTER ASSY
$34.93¢17 463
1
#26
1FK-24566-00-00
BRACKET, FILTER
$26.24¢13 119
1
#27
4EB-24398-00-00
BAND 1
$29.41¢14 706
1
#28
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#29
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#30
4TR-24311-10-00
PIPE, FUEL 1
$32.16¢16 081
1
#31
90464-15192-00
CLAMP
$7.34¢3 669
1
#32
4TR-2171A-00-00
COVER, TOP
$126.14¢63 069
1
#33
90149-05299-00
SCREW
$4.24¢2 119
1
#34
90179-05523-00
NUT
$6.78¢3 388
1
#35
4TR-2414G-00-00
SEAL
$8.03¢4 013
1
#36
3XV-21717-00-00
DAMPER
$2.58¢1 288
1
#37
5SC-2414H-00-00
DAMPER, PLATE 1
$94.66¢47 331
1
#38
5SC-2414J-00-00
DAMPER, PLATE 2
$94.66¢47 331
1
#39
5SC-2414K-00-00
DAMPER, PLATE 3
$94.66¢47 331
1
#39
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#40
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#41
5BN-24312-10-00
PIPE 2 | FOR CALIFORNIA
$87.50¢43 750
1
#42
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
1
#43
90464-15014-00
Clamp
$2.35¢1 175
1
#44
98907-05010-00
SCREW, BIND
$7.06¢3 531
1
#45
5BN-24314-10-00
PIPE 4 | FOR CALIFORNIA
$23.98¢11 988
1
#46
5BN-24327-00-00
PROTECTOR, PIPE | FOR CALIFORNIA
$14.78¢7 388
1
#47
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#48
2JU-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$409.15¢204 575
1
#49
5BN-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$60.81¢30 406
1
#50
5BN-24315-10-00
PIPE 5 | FOR CALIFORNIA
$24.09¢12 044
1
#51
90464-15192-00
CLAMP
$7.34¢3 669
1
#52
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#54
5BN-24313-10-00
PIPE 3 | FOR CALIFORNIA
$117.29¢58 644
1
#55
5BN-24327-00-00
PROTECTOR, PIPE | FOR CALIFORNIA
$14.78¢7 388
1
#56
90464-20191-00
Clamp
$8.76¢4 381
1
#57
90464-15192-00
CLAMP
$7.34¢3 669
1
#58
4TR-2413B-00-00
EMBLEM
No Disponible
1
#59
4TR-14294-10-00
HOSE
$81.81¢40 906
1
#60
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#61
90467-12124-00
CLIP
$3.30¢1 650
1
#62
5KS-13907-00-00
FUEL PUMP COMP.
$174.95¢87 475
1
#63
4TR-2637G-00-00
HOLDER, WIRE
$8.19¢4 094
1
#64
4TR-26331-00-00
CABLE, STARTER 1
$39.54¢19 769
1
#65
1UA-82591-00-00
BAND
$4.91¢2 456
1
#66
1VJ-26333-00-00
NUT
$7.91¢3 956
1
