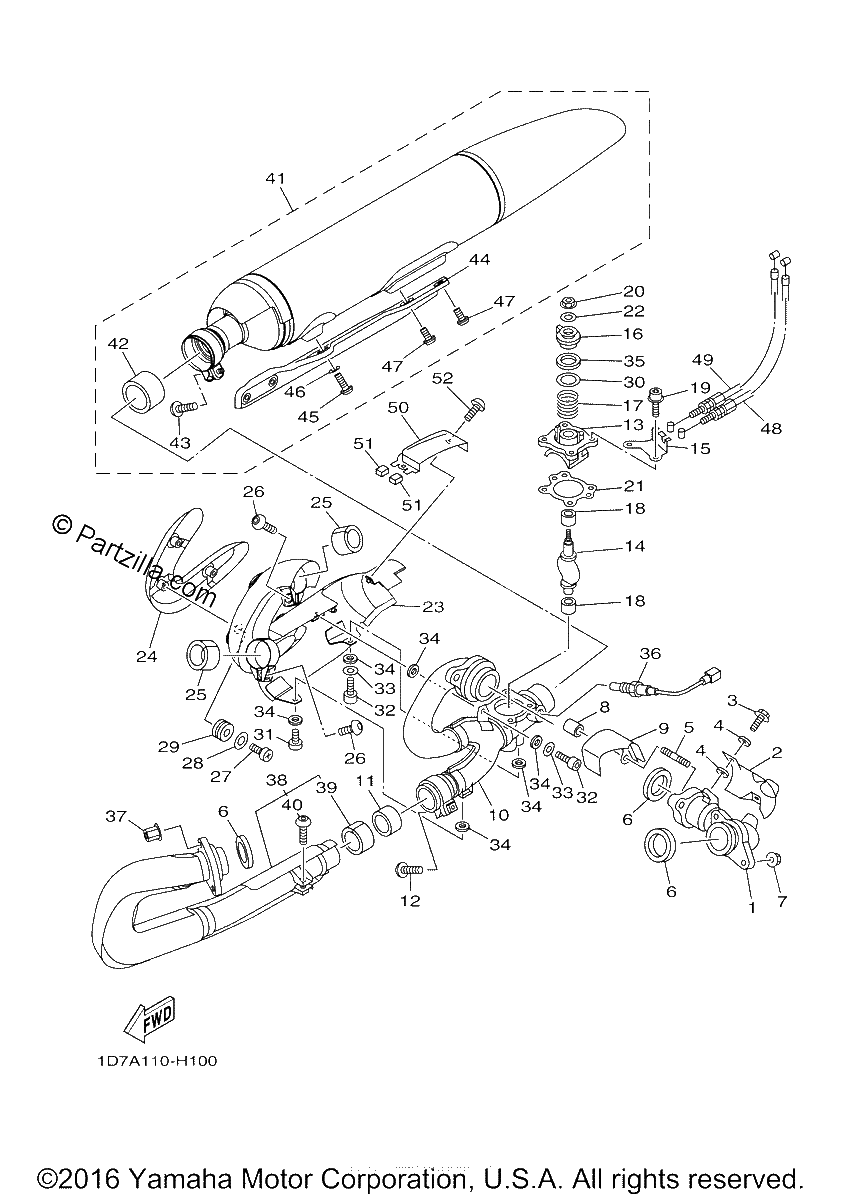

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, EXHAUST 1
$309.66¢154 831
#2
PROTECTOR, EXHAUST PIPE
$83.69¢41 844
#3
BOLT, FLANGE
$3.98¢1 988
#4
WASHER, PLATE
$7.48¢3 738
#5
BOLT, STUD
$4.38¢2 188
#6
GASKET, EXHAUST PIPE
$24.02¢12 013
#7
NUT, SELF-LOCKING
$10.10¢5 050
#8
NUT
$12.75¢6 375
#9
COVER, EXHAUST
$111.66¢55 831
#10
EXHAUST PIPE COMP.
$634.99¢317 494
#11
GASKET, SILENCER
$29.51¢14 756
#12
BOLT, BUTTON HEAD
$7.94¢3 969
#13
HOUSING
$171.32¢85 663
#14
ARM, SHAFT (VALVE)
$233.68¢116 838
#15
BRACKET
$12.79¢6 394
#16
PULLEY
$35.10¢17 550
#17
SPRING
$4.71¢2 356
#18
COLLAR
$42.95¢21 475
#19
BOLT, HEXAGON SOCKET HEAD
$4.01¢2 006
#20
NUT
$4.30¢2 150
#21
GASKET 3
$17.99¢8 994
#22
WASHER, PLAIN
$0.96¢481
#23
PROTECTOR, MUFFLER 1
$561.31¢280 656
#24
PROTECTOR, MUFFLER 2
$363.27¢181 638
#25
GASKET, MUFFLER
$35.84¢17 919
#26
BOLT, BUTTON HEAD
$7.94¢3 969
#27
SCREW, BIND
$7.34¢3 669
#28
WASHER, PLATE
$7.35¢3 675
#29
GROMMET
$10.48¢5 238
#30
VALVE, PLATE
$4.11¢2 056
#31
SCREW, BIND
$7.34¢3 669
#32
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#33
WASHER, PLAIN
$0.96¢481
#34
WASHER, PLATE
$7.48¢3 738
#35
COLLAR 2
$65.44¢32 719
#36
SENSOR, OXYGEN
$394.93¢197 463
#37
NUT
$5.99¢2 994
#38
EXHAUST PIPE ASSY 2
$869.99¢434 994
#39
GASKET, MUFFLER
$35.84¢17 919
#40
BOLT, BUTTON HEAD
$7.94¢3 969
#41
MUFFLER ASSY 1
No Disponible
#42
GASKET, MUFFLER
$31.35¢15 675
#43
BOLT, BUTTON HEAD
$7.94¢3 969
#44
MUFFLER STAY SUB-KUMI
$296.95¢148 475
#45
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
#46
WASHER, PLATE
$6.85¢3 425
#47
BOLT (replaces 90111-08064-00)
$7.49¢3 744
#48
CABLE, PULLEY 1
$94.89¢47 444
#49
CABLE, PULLEY 2
$85.72¢42 863
#50
PROTECTOR, EXHAUST
$112.95¢56 475
#51
DAMPER, LOCATING 1
$7.77¢3 887
#52
BOLT, BUTTON HEAD
$6.29¢3 144
