SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

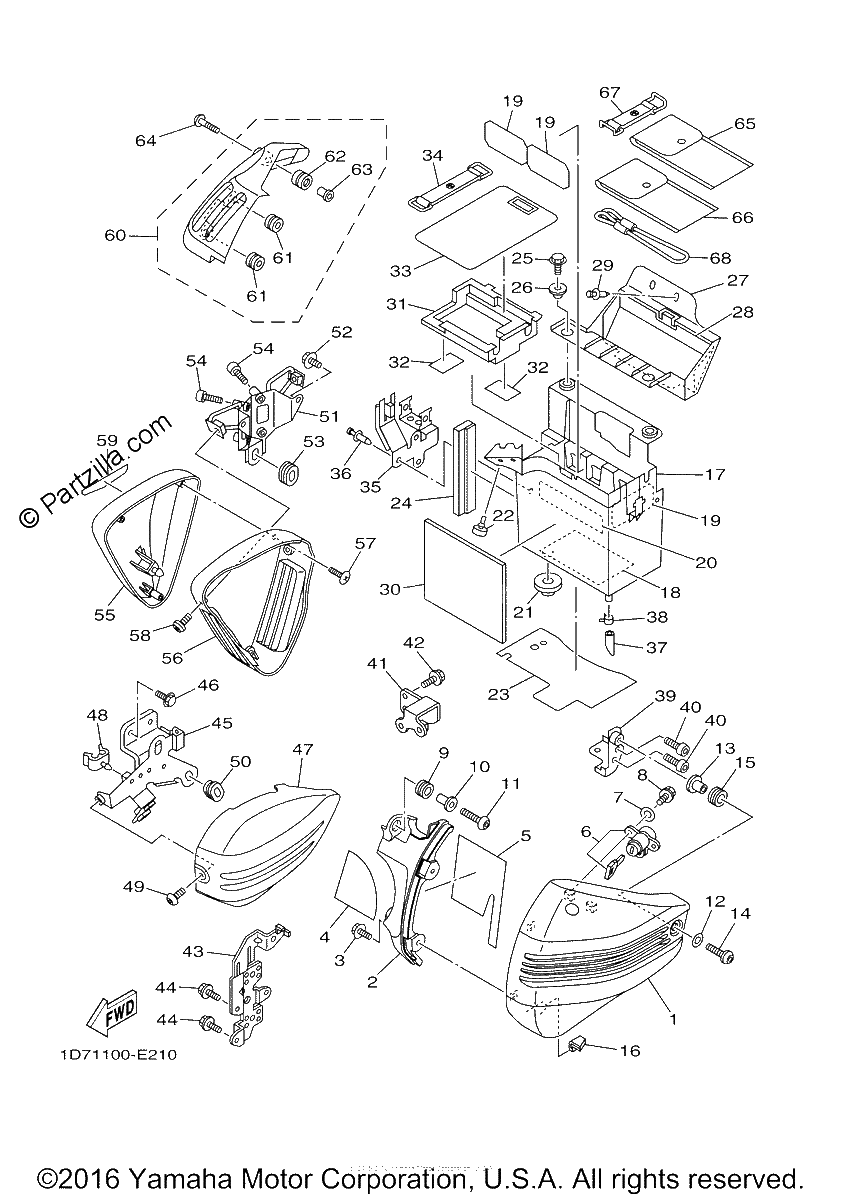

Diagrama de SIDE COVER

Repuestos

#1
1D7-21711-00-P1
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$228.98¢114 488
1
#2
1D7-2117X-00-00
COVER 9
$20.29¢10 143
1
#3
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#4
1D7-21735-00-00
SEAL 2
$4.97¢2 484
1
#5
1D7-21746-00-00
DAMPER
$28.77¢14 386
1
#6
5PX-W2470-00-00
ROTOR SET
$136.30¢68 149
1
#7
90201-06034-00
WASHER, PLATE
$7.13¢3 565
1
#8
95024-06016-00
BOLT, WASHER BASED
$7.30¢3 651
1
#9
90480-14329-00
GROMMET
$7.30¢3 651
1
#10
90387-066Y6-00
COLLAR
$7.65¢3 824
1
#11
92014-06020-00
BOLT, BUTTON HEAD
$7.58¢3 789
1
#12
90201-06M01-00
WASHER, PLATE
$7.16¢3 582
1
#13
90560-06201-00
SPACER
$13.36¢6 681
1
#14
90149-06023-00
SCREW
$5.06¢2 530
1
#15
90480-12007-00
GROMMET
$6.83¢3 415
1
#16
5PX-2171H-00-00
GUIDE
$10.11¢5 054
1
#17
1D7-2177G-02-00
BOX, BATTERY
No Disponible
1
#18
5PX-21779-00-00
DAMPER, LOCATING 2
$4.23¢2 116
1
#19
5PX-21652-00-00
PROTECTOR
$8.45¢4 226
1
#20
5PX-21778-00-00
DAMPER, LOCATING 1
$2.50¢1 248
1
#21
90480-20384-00
GROMMET
$4.76¢2 380
1
#22
1D7-2174X-00-00
DAMPER
$6.09¢3 048
1
#23
1D7-2177N-01-00
DAMPER, LOCATING 4
$27.93¢13 967
1
#24
1D7-21778-00-00
DAMPER, LOCATING 1
$37.10¢18 550
1
#25
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#26
90387-06109-00
COLLAR
$5.92¢2 961
1
#27
1D7-28173-00-00
BOX, TOOL
$32.06¢16 031
1
#28
5PX-2174Y-01-00
DAMPER
$16.04¢8 021
1
#29
90269-07077-00
RIVET
$7.59¢3 795
1
#30
1D7-21732-00-00
SEAL 1
$20.86¢10 431
1
#31
5PX-82129-00-00
COVER, BATTERY
$30.82¢15 410
1
#32
5JW-2139X-00-00
DAMPER
$3.43¢1 713
1
#33
5VN-8412H-00-00
STAY SETTING
$23.78¢11 891
1
#34
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
1
#35
1D7-2172K-00-00
BRACKET 1
$24.72¢12 362
1
#36
90269-07077-00
RIVET
$7.59¢3 795
1
#37
90445-11027-00
HOSE
$0.85¢426
1
#38
90467-10135-00
CLIP
$7.58¢3 789
1
#39
90480-01558-00
Grommet
$4.31¢2 156
1
#39
1D7-2175T-00-00
BRACKET 1
$28.27¢14 133
1
#40
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#41
1D7-2172N-00-00
BRACKET 4
$28.34¢14 168
1
#42
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#43
5PX-2174E-01-00
STAY, SIDE COVER 2
$29.69¢14 846
1
#44
95027-06012-00
BOLT, FLANGE
$3.58¢1 788
1
#45
1D7-2175V-00-00
BRACKET 3
$75.97¢37 985
1
#46
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#47
1D7-21731-01-00
COVER, SIDE 3
$149.97¢74 986
1
#48
90464-09130-00
CLAMP
$1.44¢719
1
#49
90149-05299-00
SCREW
$3.90¢1 949
1
#50
90480-01558-00
Grommet
$4.31¢2 156
1
#51
1D7-2175W-00-00
BRACKET 4
$120.20¢60 099
1
#52
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#54
90110-06114-00
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 858
1
#55
1D7-21741-01-00
COVER, SIDE 4
$110.94¢55 470
1
#56
1D7-2171D-00-00
BODY
$40.55¢20 274
1
#57
90167-05077-00
SCREW, TAPPING
$2.63¢1 317
1
#58
90149-06302-00
SCREW
$4.70¢2 352
1
#59
1D7-2173D-00-00
EMBLEM 3D
$41.87¢20 936
1
#60
1D7-17471-00-P3
PLATE, COVER | Use for Color Black Metallic X ( SMX / 0903 )
$276.68¢138 339
1
#61
90480-13007-00
GROMMET
$5.00¢2 501
1
#62
90480-13006-00
GROMMET
No Disponible
1
#63
90387-07007-00
COLLAR
$6.83¢3 415
1
#64
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
1
#65
1D7-28100-00-00
TOOL KIT
$80.19¢40 095
1
#66
1D7-28110-00-00
TOOL KIT, 2
$46.98¢23 489
1
#67
116-82131-00-00
BAND, BATTERY
$28.98¢14 490
1
#68
4HC-21398-00-00
HANGER, HELMET
$31.96¢15 979
1
