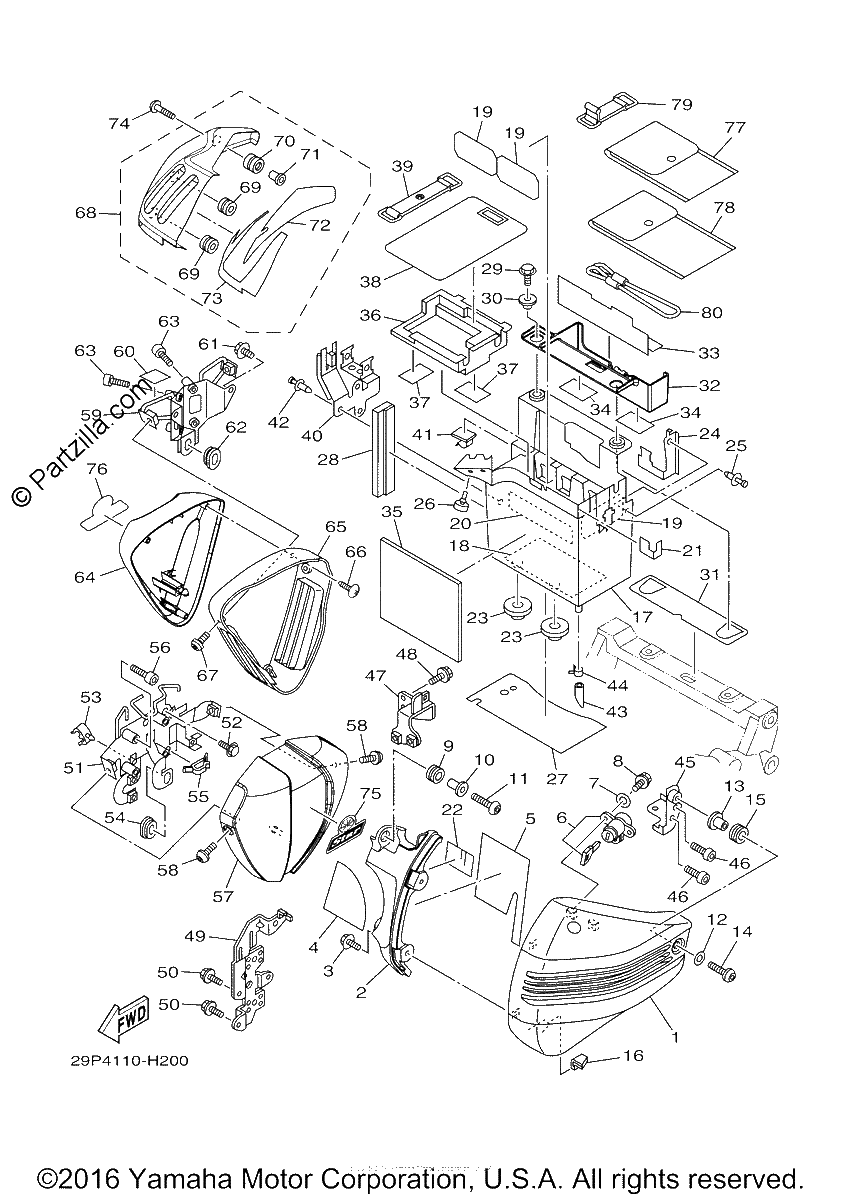

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$248.89¢124 444
#2
COVER 9
$22.05¢11 025
#3
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#4
SEAL 2
$5.40¢2 700
#5
DAMPER
$31.27¢15 638
#6
ROTOR SET
$148.15¢74 075
#7
WASHER, PLATE
$7.75¢3 875
#8
BOLT, WASHER BASED
$7.94¢3 969
#9
GROMMET
$7.94¢3 969
#10
COLLAR
$8.31¢4 156
#11
BOLT, BUTTON HEAD
$8.24¢4 119
#12
WASHER, PLATE
$7.79¢3 894
#13
SPACER
$14.52¢7 262
#14
SCREW
$5.50¢2 750
#15
GROMMET
$7.43¢3 713
#16
GUIDE
$10.99¢5 494
#17
BOX, BATTERY
No Disponible
#18
DAMPER, LOCATING 2
$4.45¢2 225
#19
PROTECTOR
$9.19¢4 594
#20
DAMPER, LOCATING 1
$2.71¢1 356
#21
SEAL 4
$6.55¢3 275
#22
SEAL 2
$3.83¢1 913
#23
GROMMET
$5.17¢2 588
#24
BRACKET 3
$16.81¢8 406
#25
RIVET
$8.25¢4 125
#26
DAMPER
$6.63¢3 313
#27
DAMPER, LOCATING 4
$30.36¢15 181
#28
DAMPER, LOCATING 1
$40.32¢20 162
#29
BOLT, FLANGE
$3.96¢1 981
#30
COLLAR
$6.44¢3 219
#31
DAMPER
$21.51¢10 756
#32
BOX, TOOL
$44.07¢22 037
#33
DAMPER
$3.86¢1 931
#34
DAMPER
$7.70¢3 850
#35
SEAL 1
$22.68¢11 338
#36
COVER, BATTERY
$33.50¢16 750
#37
DAMPER
$3.73¢1 863
#38
STAY SETTING
$25.85¢12 925
#39
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
#39
CLAMP
$1.56¢781
#40
BRACKET 1
$26.88¢13 438
#41
CLAMP
$11.97¢5 988
#42
RIVET
$8.25¢4 125
#43
HOSE
$0.93¢463
#44
CLIP
$8.24¢4 119
#45
BRACKET 1
$30.72¢15 362
#46
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#47
BRACKET 4
$57.86¢28 931
#48
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#49
STAY, SIDE COVER 2
$32.27¢16 138
#50
BOLT, FLANGE
$3.89¢1 944
#51
BRACKET 3
$316.88¢158 438
#52
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
#54
Grommet
$4.69¢2 344
#55
CLAMP
$5.84¢2 919
#56
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
#57
COVER, SIDE 3
$230.30¢115 150
#58
SCREW
$5.11¢2 556
#59
BRACKET 4
$130.65¢65 325
#60
SEAL 3
$4.51¢2 256
#61
BOLT, FLANGE
$6.49¢3 244
#62
Grommet
$4.69¢2 344
#63
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
#64
COVER, SIDE 4
$191.40¢95 700
#65
BODY
$44.07¢22 037
#66
SCREW, TAPPING
$2.86¢1 431
#67
SCREW
$5.11¢2 556
#68
PLATE, COVER | Use for Color Black Metallic X ( SMX / 0903 )
$327.57¢163 788
#69
GROMMET
$5.44¢2 719
#70
GROMMET
No Disponible
#71
COLLAR
$7.43¢3 713
#72
SEAL, CRANKCASE
$25.69¢12 844
#73
SEAL
$21.80¢10 900
#74
BOLT, HEXAGON SOCKET HEAD
$6.76¢3 381
#75
EMBLEM 3D
$66.42¢33 213
#76
EMBLEM 3D
$66.42¢33 213
#77
TOOL KIT
$68.03¢34 013
#78
TOOL KIT, 2
$43.45¢21 725
#79
BAND, BATTERY
$23.89¢11 944
#80
HANGER, HELMET
$34.74¢17 369
