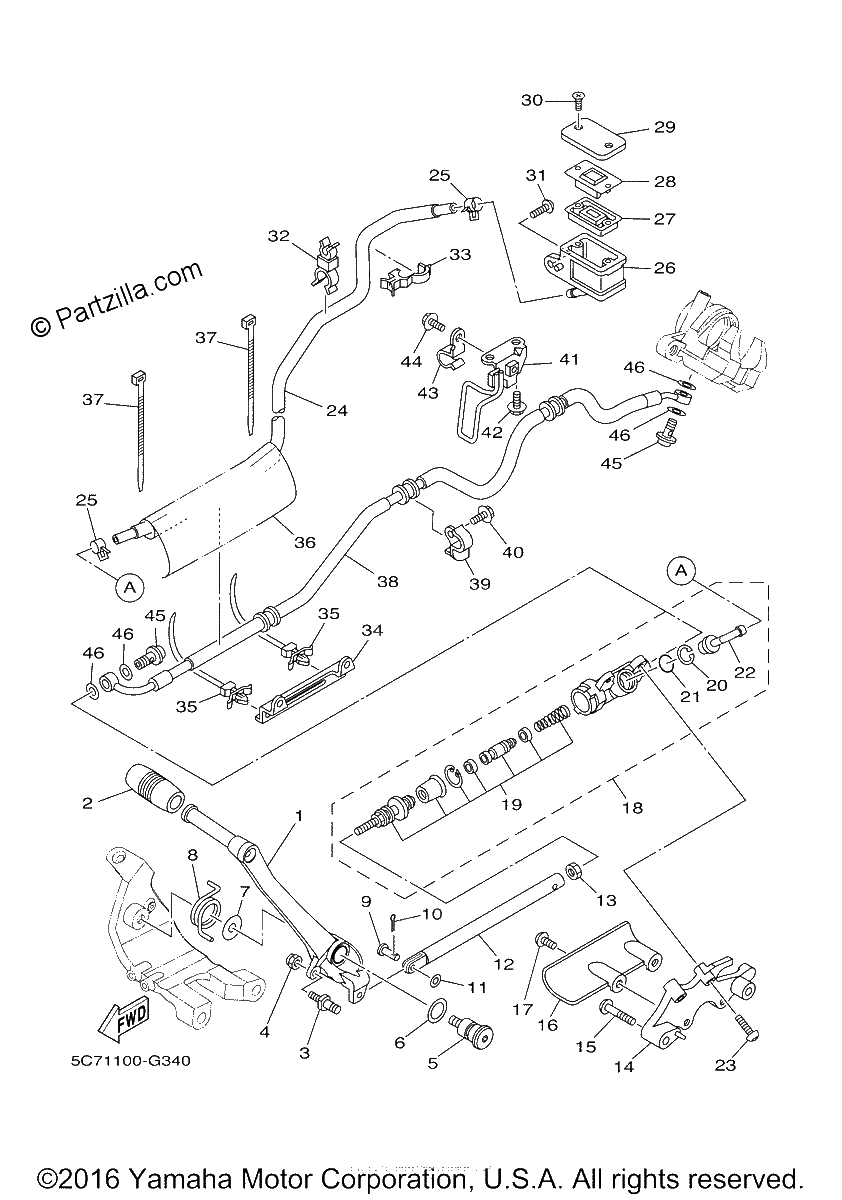

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$273.19¢136 597
#2
COVER, SHIFT PEDAL
$14.34¢7 170
#3
PIN, PEDAL CRANK
$12.81¢6 406
#4
NUT, U
$7.30¢3 651
#5
BOLT
$44.02¢22 011
#6
WASHER, PLATE
$5.72¢2 858
#7
WASHER, PLATE
$6.82¢3 410
#8
SPRING, SIDE STAND
$8.68¢4 341
#9
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
#10
PIN, COTTER
$6.74¢3 370
#11
WASHER, PLAIN
$0.89¢443
#12
JOINT
$73.07¢36 536
#13
NUT
$7.72¢3 858
#14
BRACKET, MASTER CYLINDER
$66.68¢33 338
#15
BOLT, BUTTON HEAD
$7.30¢3 651
#16
PROTECTOR
$16.80¢8 401
#17
BOLT, BUTTON HEAD
$7.30¢3 651
#18
RR. MASTER CYLINDER ASSY.
$188.22¢94 110
#19
CYLINDER KIT, MASTER
$69.56¢34 782
#20
CIRCLIP
$6.51¢3 254
#21
O-RING
$6.32¢3 162
#22
JOINT
$21.48¢10 741
#23
BOLT, BUTTON HEAD
$7.30¢3 651
#24
HOSE, RESERVOIR
$69.34¢34 672
#25
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#26
TANK, RESERVOIR
$21.48¢10 741
#27
DIAPHRAGM, RESERVOIR
$23.76¢11 879
#28
PLATE, DIAPHRAGM
$18.24¢9 119
#29
CAP, RESERVOIR
$33.43¢16 715
#30
SCREW, FLAT HEAD
$1.35¢673
#31
BOLT, BUTTON HEAD
$2.90¢1 449
#32
CLAMP
$3.68¢1 840
#33
CLAMP
$6.75¢3 375
#34
HOLDER, FUEL PIPE
$16.45¢8 223
#35
CLAMP
$4.83¢2 415
#36
PROTECTOR, BRAKE HOSE
$57.30¢28 652
#37
BAND
$4.52¢2 260
#38
HOSE, BRAKE 4
$97.21¢48 605
#39
HOLDER, BRAKE HOSE 5
$16.30¢8 148
#40
BOLT, FLANGE
$3.29¢1 644
#41
HOLDER, BRAKE HOSE
$47.59¢23 793
#42
BOLT, FLANGE
$3.29¢1 644
#43
HOLDER, BRAKE HOSE
$4.37¢2 185
#44
BOLT, FLANGE
$5.97¢2 984
#45
BOLT, UNION
$4.06¢2 030
#46
GASKET
$7.72¢3 858
