FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

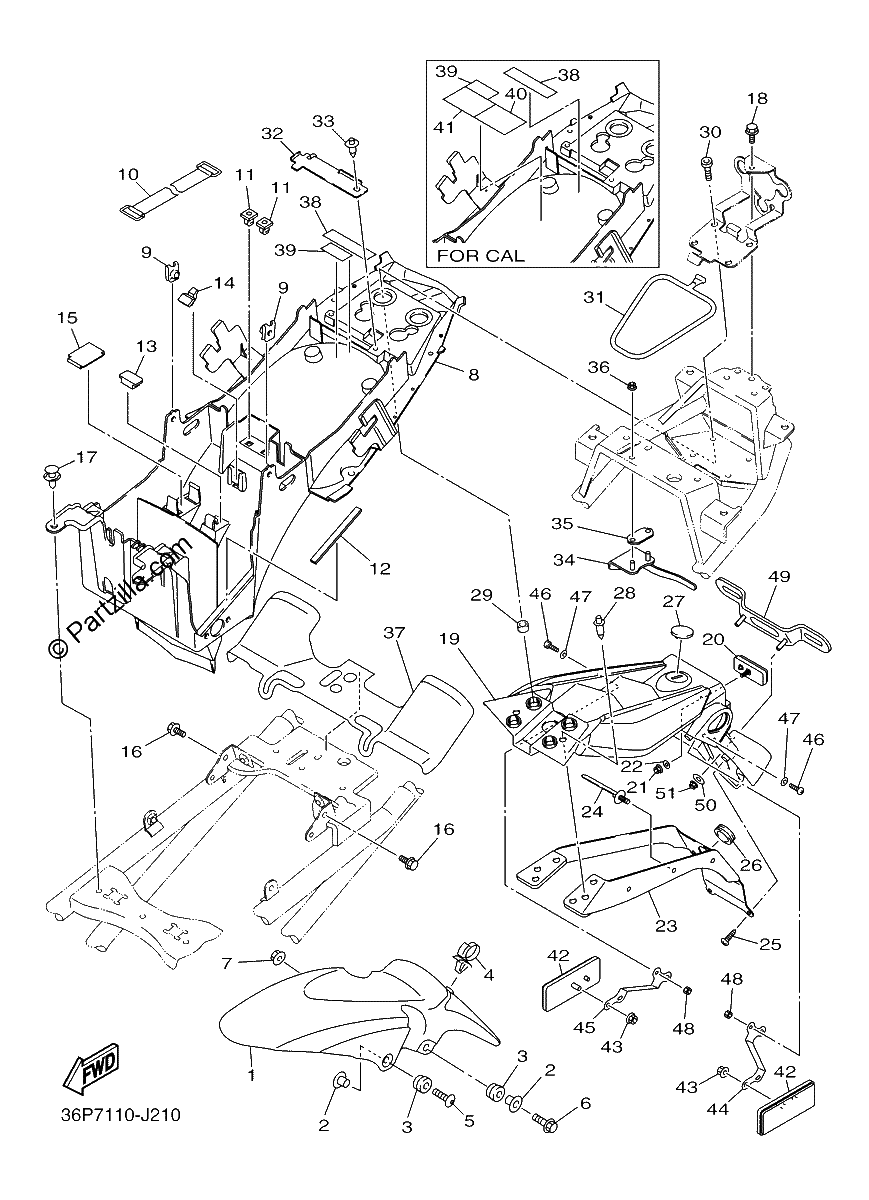

Diagrama de FENDER

Repuestos

#1
5VX-21511-A0-P4
FENDER, FRONT (BLUISH WHITE COCKTAIL 1) *{UR FOR BWC1}*
$188.10¢94 050
1
#2
90387-065J6-00
Collar
$7.60¢3 800
1
#3
90480-12072-00
GROMMET
$7.94¢3 969
1
#4
90464-18002-00
CLAMP
$8.25¢4 125
1
#5
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.76¢3 381
1
#6
95024-06030-00
BOLT,FLANGE
$7.34¢3 669
1
#7
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#8
20S-21611-00-00
FENDER, REAR
$53.75¢26 875
1
#9
90183-06053-00
Nut, Spring
$7.26¢3 631
1
#10
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
1
#11
90480-07003-00
GROMMET
$1.10¢550
1
#12
5JW-2174X-00-00
DAMPER
$0.51¢256
1
#13
20S-216A2-00-00
SEAL, 2
$4.35¢2 175
1
#14
20S-216A3-00-00
SEAL, 3
$4.35¢2 175
1
#15
20S-216A4-00-00
SEAL, 4
$5.06¢2 531
1
#16
95802-06012-00
Bolt, Flange
$1.79¢894
1
#17
90269-07010-00
RIVET
$4.45¢2 225
1
#18
95822-06010-00
BOLT, FLANGE
$3.39¢1 694
1
#19
20S-21629-10-00
GUARD, MUD
$30.96¢15 481
1
#20
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#21
95602-05100-00
Nut, U
$7.94¢3 969
1
#22
90201-05043-00
WASHER, PLATE
$6.47¢3 238
1
#23
20S-21688-01-00
BRACKET, REAR STAY
$124.77¢62 387
1
#24
90464-31001-00
Clamp
$2.69¢1 344
1
#25
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#26
90480-23345-00
GROMMET
$2.96¢1 481
1
#27
4KN-2836B-10-00
TUNING FORK MARK
$18.90¢9 450
1
#28
90269-07001-00
RIVET
$1.82¢913
1
#29
90387-06232-00
COLLAR
$3.86¢1 931
1
#30
91312-08025-00
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
1
#31
3YX-21376-00-00
BAND, TOOL
$17.21¢8 606
1
#32
20S-21677-01-00
PLATE, FITTING 3
No Disponible
1
#33
90269-06008-00
RIVET
$8.80¢4 400
1
#34
36P-2115J-00-00
BRACKET, HELMET HANGER
$23.31¢11 656
1
#35
20S-24792-00-00
PLATE
$2.40¢1 200
1
#36
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#37
36P-21639-00-00
DAMPER 2
$22.73¢11 363
1
#38
3JJ-28446-A1-00
LABEL, CAUTION
$4.94¢2 469
1
#39
3TB-24877-A0-00
LABEL, CAUTION
$5.32¢2 662
1
#40
5VX-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$10.22¢5 113
1
#41
5VX-2178A-00-00
LABEL | FOR CALIFORNIA
No Disponible
1
#42
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#43
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#44
36P-2164F-00-00
STAY 1
$16.31¢8 156
1
#45
36P-2164G-00-00
STAY 2
$13.64¢6 819
1
#46
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#47
92902-04600-00
WASHER, PLATE
$1.20¢600
1
#48
95602-04100-00
Nut, U
$8.53¢4 263
1
#49
5MT-84751-00-00
BRACKET, LICENSE
$29.30¢14 650
1
#50
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#51
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
