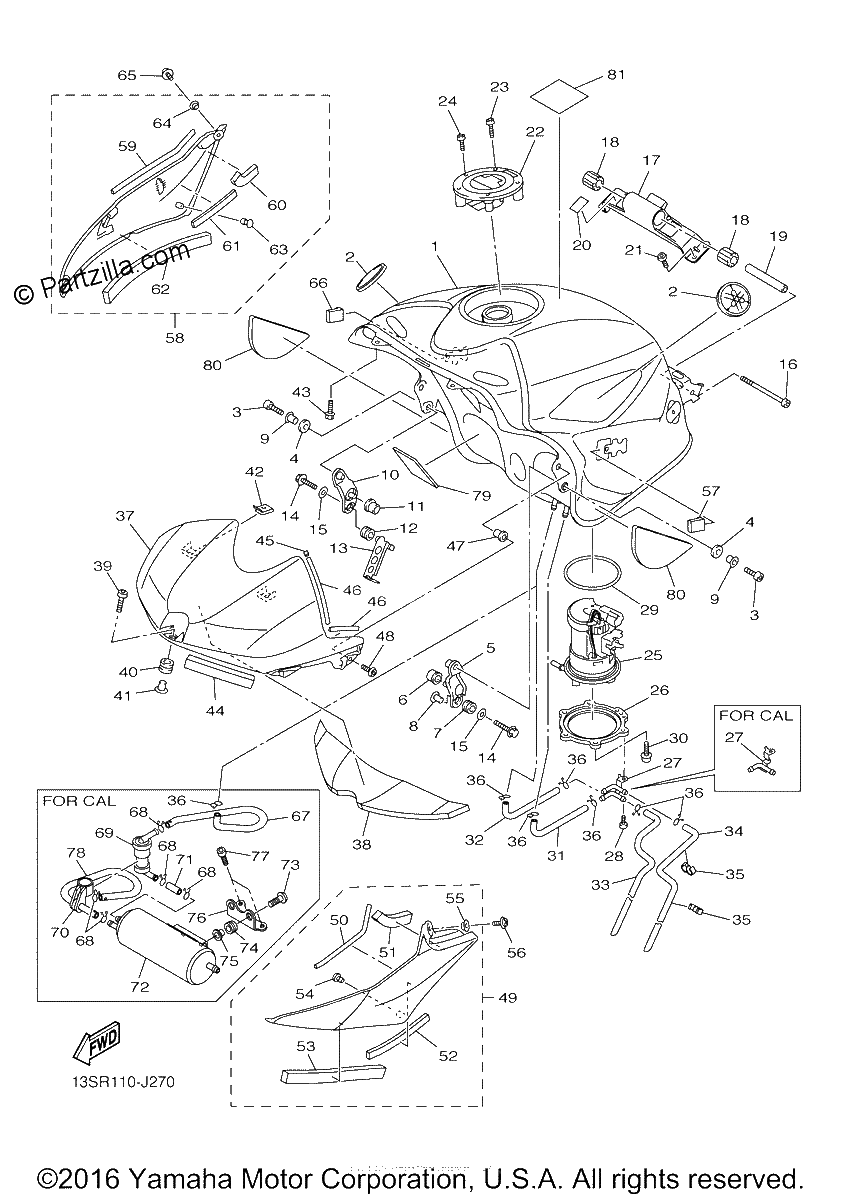

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1264.99¢632 494
#0
COVER, TOP | Use for Color Black Metallic X ( SMX / 0903 )
$203.78¢101 890
#0
FUEL TANK COMP. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$1264.99¢632 494
#0
CLAMP 1 | FOR CALIFORNIA
No Disponible
#0
COVER, TOP | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$202.78¢101 390
#0
PIPE 7 | FOR CALIFORNIA
$17.80¢8 901
#1
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1264.99¢632 494
#2
EMBLEM
$24.39¢12 196
#3
BOLT
$5.37¢2 685
#4
DAMPER, LOCATING 3
$7.15¢3 577
#5
BRACKET, FUEL TANK 1
$23.14¢11 569
#6
DAMPER, LOCATING 1
$7.04¢3 519
#7
GROMMET
$10.76¢5 382
#8
COLLAR
$7.65¢3 824
#9
COLLAR
$5.97¢2 984
#10
BRACKET, FUEL TANK 2
$21.04¢10 522
#11
DAMPER, LOCATING 1
$7.04¢3 519
#12
GROMMET
$10.76¢5 382
#13
GUIDE, WIRE
$20.39¢10 195
#14
BOLT, FLANGE
$1.54¢771
#15
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
#16
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#17
BRACKET, TANK FITTING
$68.72¢34 362
#18
DAMPER, LOCATING 3
$7.04¢3 519
#19
COLLAR
$4.77¢2 386
#20
TAPE, 1
$7.28¢3 640
#21
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#22
CAP ASSY
$248.96¢124 482
#23
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#24
BOLT
$5.39¢2 697
#25
FUEL PUMP COMP.
$641.27¢320 637
#26
BRACKET, FUEL PUMP
$40.32¢20 160
#27
CLAMP 1 | FOR U49
$38.82¢19 412
#28
SCREW, BIND
$1.74¢868
#29
O-RING
$40.92¢20 458
#30
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#31
PIPE 5
$13.14¢6 572
#32
PIPE 6
$12.91¢6 457
#33
PIPE 7 | FOR U49
$22.37¢11 184
#34
PIPE 3
$24.85¢12 426
#35
CLAMP
$6.77¢3 387
#36
Clip
$2.74¢1 368
#37
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$298.26¢149 132
#38
DAMPER
$7.50¢3 749
#39
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
#39
DAMPER, LOCATING 4
$7.31¢3 657
#40
GROMMET
$6.83¢3 415
#41
COLLAR
$7.64¢3 818
#42
NUT, SPRING
$8.14¢4 071
#43
BOLT, FLANGE
$2.43¢1 213
#44
DAMPER, PLATE 2
$6.03¢3 013
#45
DAMPER, LOCATING 1
$7.31¢3 657
#46
DAMPER, PLATE
$1.20¢598
#47
NUT
$6.23¢3 117
#48
SCREW, BIND
$1.32¢661
#49
TANK SIDE COVER ASSY 1
$53.06¢26 531
#50
DAMPER, PLATE
$1.74¢868
#51
DAMPER, PLATE 5
$7.31¢3 657
#52
DAMPER, PLATE
$1.32¢661
#54
PLUG
$6.22¢3 111
#55
COLLAR
$5.51¢2 754
#56
SCREW, BIND
$1.35¢673
#57
DAMPER, SIDE COVER
$7.04¢3 519
#58
TANK SIDE COVER ASSY 2
$53.06¢26 531
#59
DAMPER, PLATE
$1.74¢868
#60
DAMPER, PLATE 5
$7.31¢3 657
#61
DAMPER, PLATE
$1.32¢661
#62
DAMPER, LOCATING 4
$7.31¢3 657
#63
PLUG
$6.22¢3 111
#64
COLLAR
$5.51¢2 754
#65
SCREW, BIND
$1.35¢673
#66
DAMPER, SIDE COVER
$7.04¢3 519
#67
PIPE 4 | FOR CALIFORNIA
$37.01¢18 504
#68
Clip
$2.74¢1 368
#69
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#70
BAND 1 | FOR CALIFORNIA
No Disponible
#71
HOSE (L30) | FOR CALIFORNIA
$3.48¢1 742
#72
CANISTER ASSY | FOR CALIFORNIA
$553.56¢276 782
#73
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#74
GROMMET
$6.83¢3 415
#75
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#76
BRACKET, CANISTOR | FOR CALIFORNIA
$51.51¢25 754
#77
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#78
PIPE | FOR CALIFORNIA
$29.96¢14 979
#79
DAMPER, SIDE COVER
$7.45¢3 726
#80
DAMPER, SIDE COVER
$9.56¢4 778
#81
LABEL, CAUTION
$7.22¢3 611
