STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

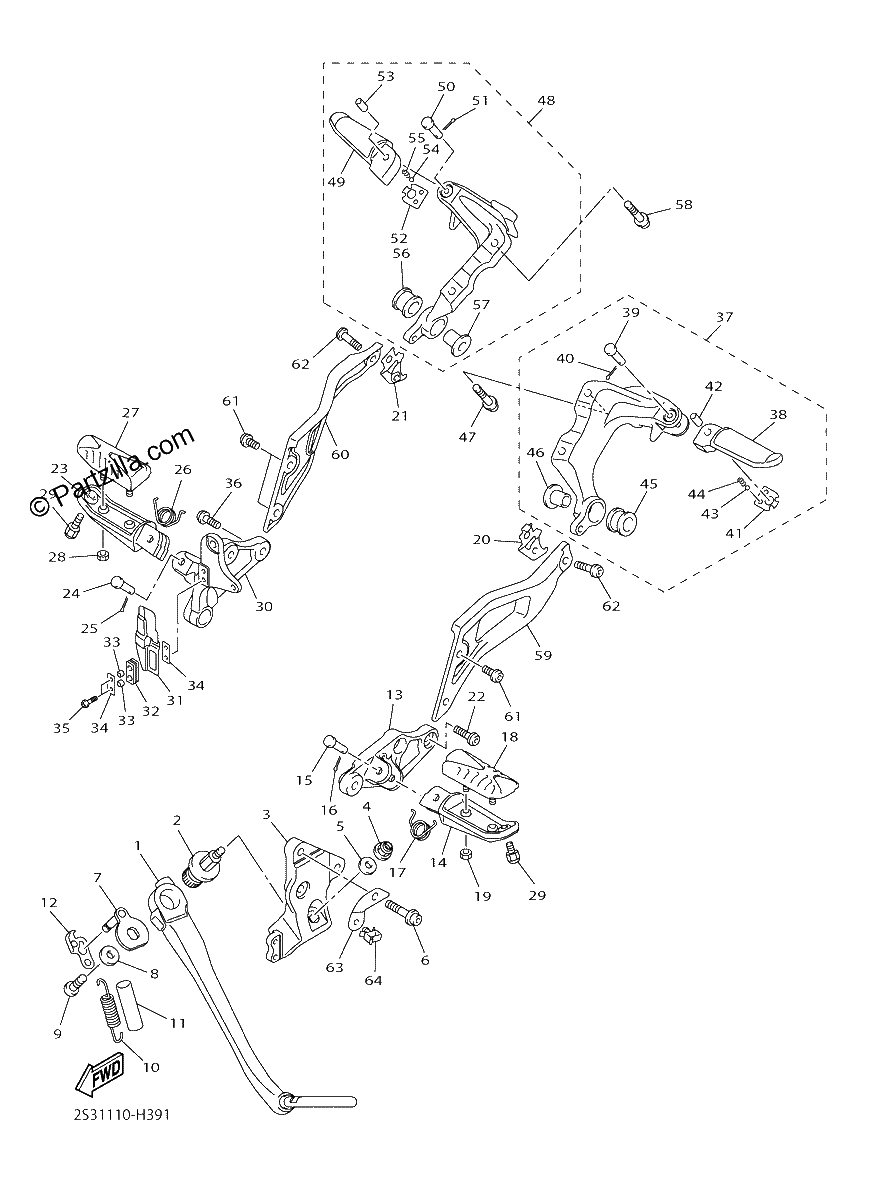

Diagrama de STAND FOOTREST

Repuestos

#1
2S3-27311-00-00
STAND, SIDE
$313.72¢156 860
1
#2
2S3-27351-00-00
GUIDE, SIDE STAND
$75.49¢37 743
1
#3
2S3-27321-00-00
BRACKET, side stand
$371.32¢185 662
1
#4
95604-10200-00
NUT, SELF-LOCKING
$8.75¢4 376
1
#5
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#6
90110-08089-00
BOLT, HEXAGON SOCKET HEAD
$3.52¢1 759
1
#7
2S3-27352-00-00
HOOK, SIDE STAND
$48.23¢24 115
1
#8
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$6.92¢3 461
1
#9
90111-08064-00
BOLT, HEX. SOCKET BUTTON
$6.89¢3 444
1
#10
2S3-27116-00-00
SPRING, MAIN STAND
$16.51¢8 257
1
#11
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#12
2S3-27315-00-00
LINK, SIDE STAND
$13.36¢6 681
1
#13
2S3-27442-00-00
BRACKET 2
$119.37¢59 685
1
#14
2S3-27451-00-00
Footrest
$69.20¢34 598
1
#15
91701-08040-00
PIN
$4.45¢2 225
1
#16
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#17
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#18
2S3-27413-00-00
COVER, FOOTREST
$30.23¢15 117
1
#19
95604-05100-00
Nut, U
$1.01¢506
1
#20
2S3-2172K-00-00
BRACKET 1
$8.76¢4 382
1
#21
2S3-2172L-00-00
BRACKET 2
$8.52¢4 261
1
#22
90109-085G6-00
BOLT
$2.08¢1 041
1
#23
2S3-27461-00-00
Footrest
$73.83¢36 915
1
#24
91701-08040-00
PIN
$4.45¢2 225
1
#25
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#26
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#27
2S3-27413-00-00
COVER, FOOTREST
$30.23¢15 117
1
#28
95604-05100-00
Nut, U
$1.01¢506
1
#29
2S3-27317-00-00
bolt
$15.52¢7 762
1
#30
2S3-27443-00-00
BRACKET 3
No Disponible
1
#31
2S3-2144G-00-00
STAY, STOP SWITCH
$34.19¢17 095
1
#32
2S3-28187-00-00
Grommet
$4.47¢2 237
1
#33
90387-05046-00
Collar
$4.51¢2 254
1
#34
2S3-27415-00-00
PLATE, FOOTREST
$4.69¢2 346
1
#35
90111-05036-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#36
90109-085G6-00
BOLT
$2.08¢1 041
1
#37
2S3-27430-00-00
REAR FOOTREST ASSY 1
$383.25¢191 624
1
#38
5JJ-27431-00-00
FOOTREST, REAR 1
$78.27¢39 134
1
#39
91701-06032-00
PIN
$7.51¢3 755
1
#40
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#41
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#42
90387-06697-00
Collar
$14.60¢7 302
1
#43
93501-04011-00
BALL
$6.87¢3 433
1
#44
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#45
4XV-27424-00-00
DAMPER, FOOTREST 2
$13.94¢6 969
1
#46
90387-08005-00
Collar
$14.97¢7 486
1
#47
90110-08199-00
BOLT, HEXAGON
$6.16¢3 082
1
#48
2S3-27440-00-00
REAR FOOTREST ASSY 2
$311.89¢155 946
1
#49
5JJ-27441-00-00
FOOTREST, REAR 2
$69.56¢34 782
1
#50
91701-06032-00
PIN
$7.51¢3 755
1
#51
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#52
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#53
90387-06697-00
Collar
$14.60¢7 302
1
#54
93501-04011-00
BALL
$6.87¢3 433
1
#55
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#56
4XV-27424-00-00
DAMPER, FOOTREST 2
$13.94¢6 969
1
#57
90387-08005-00
Collar
$14.97¢7 486
1
#58
90110-08199-00
BOLT, HEXAGON
$6.16¢3 082
1
#59
2S3-27445-00-00
PLATE 1
$20.77¢10 385
1
#60
2S3-27446-00-00
PLATE 2
$20.77¢10 385
1
#61
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#62
90149-06302-00
SCREW
$4.70¢2 352
1
#63
2S3-2787A-00-00
BRACKET 1
$11.12¢5 560
1
#64
90464-16021-00
CLAMP
$12.30¢6 152
1
