CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

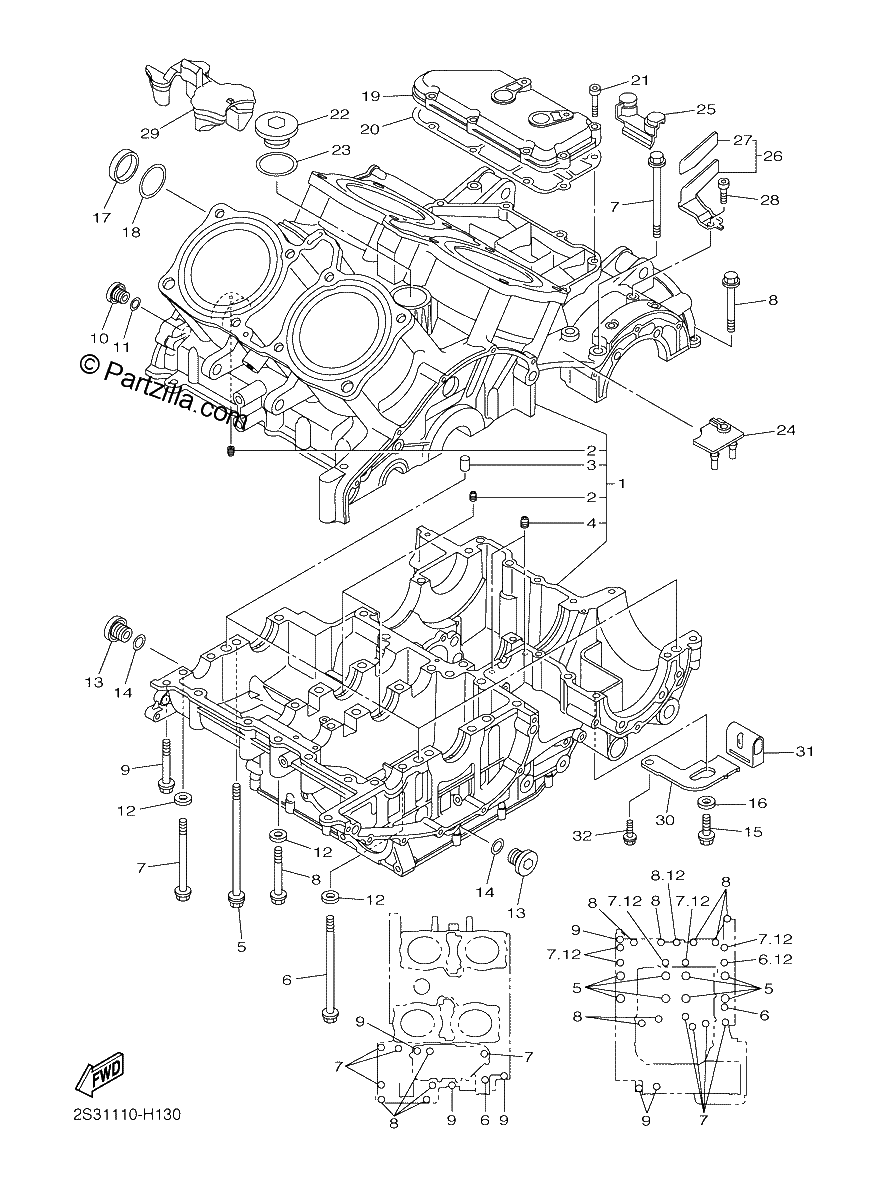

Diagrama de CRANKCASE

Repuestos

#1
2S3-15100-11-00
Crankcase Assy
$6394.99¢3 197 494
1
#2
4H7-15138-00-00
. NOZZLE 1
$6.99¢3 494
1
#3
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#4
2S3-15148-00-00
NOZZLE 2
$6.76¢3 381
1
#5
90119-10035-00
BOLT, WITH WASHER
$8.59¢4 294
1
#6
95812-08110-00
BOLT, FLANGE
$6.97¢3 488
1
#7
95812-08090-00
Bolt, Flange
$4.00¢2 000
1
#8
95812-08065-00
Bolt, Flange
$4.20¢2 100
1
#9
95812-06065-00
BOLT, FLANGE
$6.14¢3 069
1
#10
90340-14011-00
PLUG, STRAIGHT SCREW
$23.49¢11 744
1
#11
93210-14369-00
O-Ring
$6.91¢3 456
1
#12
90201-08093-00
WASHER, plate
$7.48¢3 738
1
#13
4H7-15189-00-00
PLUG
$30.76¢15 381
1
#14
93210-207A0-00
O-Ring
$1.15¢575
1
#15
95022-08016-00
Bolt, Flange
$0.85¢425
1
#16
90430-08119-00
GASKET
$6.91¢3 456
1
#17
2S3-12564-00-00
PIPE, WATER
$15.21¢7 606
1
#18
93210-34504-00
O-Ring
$9.91¢4 956
1
#19
2S3-15413-00-00
Cover
$144.20¢72 100
1
#20
2S3-15463-00-00
GASKET, COVER PINION
$8.03¢4 013
1
#21
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#22
90340-36003-00
PLUG, STRAIGHT SCREW
$27.57¢13 788
1
#23
93210-35001-00
O-Ring
$3.98¢1 988
1
#24
2S3-15416-00-00
COVER, OIL PUMP
$9.30¢4 650
1
#25
2S3-15486-00-00
Grommet
$11.04¢5 519
1
#26
2S3-81328-00-00
Clamp
$23.65¢11 825
1
#27
2S3-1471P-00-00
SEAT, 6
$1.69¢844
1
#28
90110-06193-00
BOLT, HEXAGON SOCKET HEAD
$1.46¢731
1
#29
2S3-15428-00-00
COVER, CHAIN CASE 2
$50.55¢25 275
1
#30
2S3-21329-00-00
PLATE
$7.72¢3 863
1
#31
2S3-2139X-00-00
Damper
$42.75¢21 375
1
#32
90105-06080-00
BOLT, FLANGE
$6.49¢3 244
1
