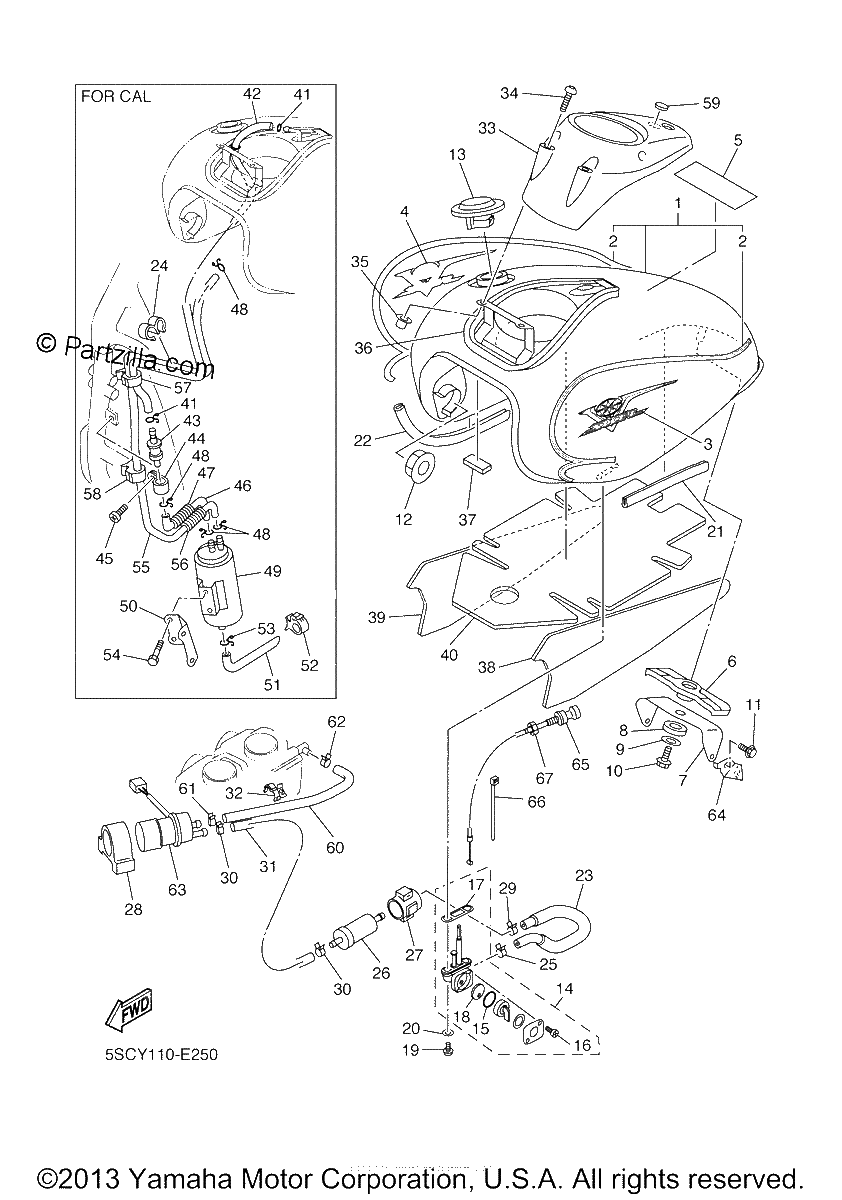

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$1154.59¢577 294
#0
GRAPHIC SET | UR FOR DPBMX
$234.23¢117 116
#0
FUEL TANK COMP. | UR FOR DPBMX
$1039.59¢519 794
#0
CAP ASSY
$125.82¢62 911
#0
FUEL TANK COMP. | UR FOR DPBMX CA
$1039.59¢519 794
#1
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#2
GRAPHIC SET | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#3
EMBLEM
$65.79¢32 896
#4
EMBLEM
$65.79¢32 896
#5
LABEL, CAUTION
$5.37¢2 685
#6
DAMPER, LOCATING 2
$17.72¢8 861
#7
BRACKET, TANK FITTING
$15.02¢7 510
#8
DAMPER, LOCATING 3
$7.28¢3 640
#9
WASHER
$4.47¢2 237
#10
BOLT, BUTTON HEAD
$2.24¢1 121
#11
BOLT, FLANGE
$4.52¢2 260
#12
DAMPER, LOCATING 1
$6.00¢3 001
#13
CAP ASSY
$199.88¢99 941
#14
FUEL COCK ASSY 1
$51.50¢25 749
#15
SEAL, COCK
$10.21¢5 106
#16
SCREW, PAN HEAD
$3.00¢1 501
#17
O-RING
$7.34¢3 669
#18
VALVE PACKING
$12.71¢6 354
#19
SCREW,SPEC'L SHAPE
$1.79¢897
#20
WASHER, PLATE
$1.45¢724
#21
MOLE, SIDE COVER 1
$23.17¢11 586
#22
MOLD, FUEL TANK
$19.53¢9 763
#23
PIPE 3
$59.39¢29 693
#24
CLAMP
$6.77¢3 387
#25
CLIP
$2.21¢1 104
#26
FILTER ASSY
$32.13¢16 066
#27
BRACKET, FILTER
$24.14¢12 069
#28
BAND 1
$27.06¢13 530
#29
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#30
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#31
PIPE, FUEL 1
$29.59¢14 795
#32
CLAMP
$6.75¢3 375
#33
COVER, TOP
$116.05¢58 023
#34
SCREW
$3.90¢1 949
#35
NUT
$6.23¢3 117
#36
SEAL
$7.38¢3 691
#37
DAMPER
$2.37¢1 185
#38
DAMPER, PLATE 1
$87.09¢43 545
#39
DAMPER, PLATE 2
$87.09¢43 545
#39
CLIP | FOR CALIFORNIA
$6.99¢3 496
#40
DAMPER, PLATE 3
$87.09¢43 545
#41
CLIP | FOR CALIFORNIA
$6.99¢3 496
#42
PIPE 2 | FOR CALIFORNIA
$80.50¢40 250
#43
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
#44
Clamp
$2.16¢1 081
#45
SCREW, BIND
$6.50¢3 249
#46
PIPE 4 | FOR CALIFORNIA
$22.06¢11 029
#47
PROTECTOR, PIPE | FOR CALIFORNIA
$13.59¢6 797
#48
CLIP | FOR CALIFORNIA
$6.99¢3 496
#49
CANISTER ASSY | FOR CALIFORNIA
$376.42¢188 209
#50
BRACKET, CANISTOR | FOR CALIFORNIA
$55.95¢27 974
#51
PIPE 5 | FOR CALIFORNIA
$22.16¢11 080
#52
CLAMP
$6.75¢3 375
#54
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
#55
PIPE 3 | FOR CALIFORNIA
$107.90¢53 952
#56
PROTECTOR, PIPE | FOR CALIFORNIA
$13.59¢6 797
#57
Clamp
$8.06¢4 031
#58
CLAMP
$6.75¢3 375
#59
EMBLEM
No Disponible
#60
HOSE
$75.27¢37 634
#61
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#62
CLIP
$3.04¢1 518
#63
FUEL PUMP COMP.
$160.95¢80 477
#64
HOLDER, WIRE
$7.53¢3 766
#65
CABLE, STARTER 1
$36.37¢18 187
#66
BAND
$4.52¢2 260
#67
NUT
$7.28¢3 640
