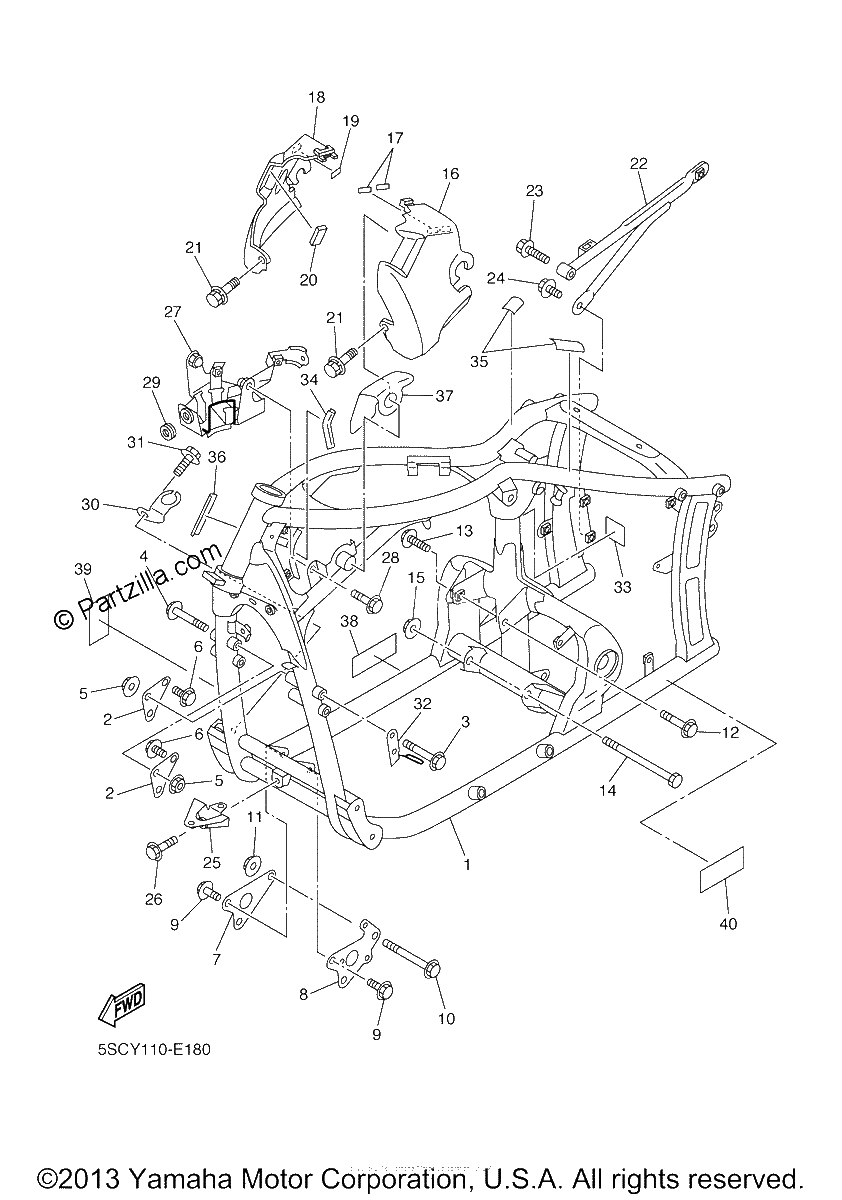

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PLATE, EPA (NON CALIFORNIA)
No Disponible
#1
FRAME COMP.
$1949.99¢974 994
#2
STAY, ENGINE 1
$11.97¢5 988
#3
BOLT, FLANGE
$4.30¢2 150
#4
BOLT, FLANGE
$11.16¢5 581
#5
NUT
$7.10¢3 550
#6
BOLT, FLANGE
$7.34¢3 669
#7
STAY, ENGINE 3
$27.84¢13 919
#8
STAY, ENGINE 3
$77.20¢38 600
#9
BOLT, FLANGE
$7.48¢3 738
#10
BOLT, FLANGE
$7.09¢3 544
#11
NUT, FLANGE
$2.10¢1 050
#12
BOLT,WASHER BASED
$9.00¢4 500
#13
BOLT, FLANGE
$12.29¢6 144
#14
BOLT
$34.10¢17 050
#15
NUT
$6.23¢3 113
#16
COVER, SIDE 5
$25.00¢12 500
#17
DAMPER 1
$4.84¢2 419
#18
COVER, SIDE 6
$26.61¢13 306
#19
DAMPER 1
$4.84¢2 419
#20
DAMPER
$7.86¢3 931
#21
BOLT, WITH WASHER
$7.43¢3 713
#22
STAY, MUFFLER
$87.27¢43 637
#23
BOLT, FLANGE
$2.23¢1 113
#24
BOLT, FLANGE
$8.31¢4 156
#25
STAY 1
$29.29¢14 644
#26
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#27
BRACKET, FUEL PUMP
$76.58¢38 288
#28
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#29
GROMMET
$7.99¢3 994
#30
STAY, STOP SWITCH
$10.40¢5 200
#31
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#32
HOLDER, CABLE
$27.54¢13 769
#33
SEAL 1
$11.03¢5 513
#34
DAMPER 1
No Disponible
#35
SEAL 1
$19.20¢9 600
#36
PROTECTOR, FUEL TANK
$13.71¢6 856
#37
SHEET 1
$7.56¢3 781
#38
PLATE, EPA (CALIFORNIA)
No Disponible
#39
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.22¢4 613
#40
LABEL, TIRE
$2.35¢1 175
