SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

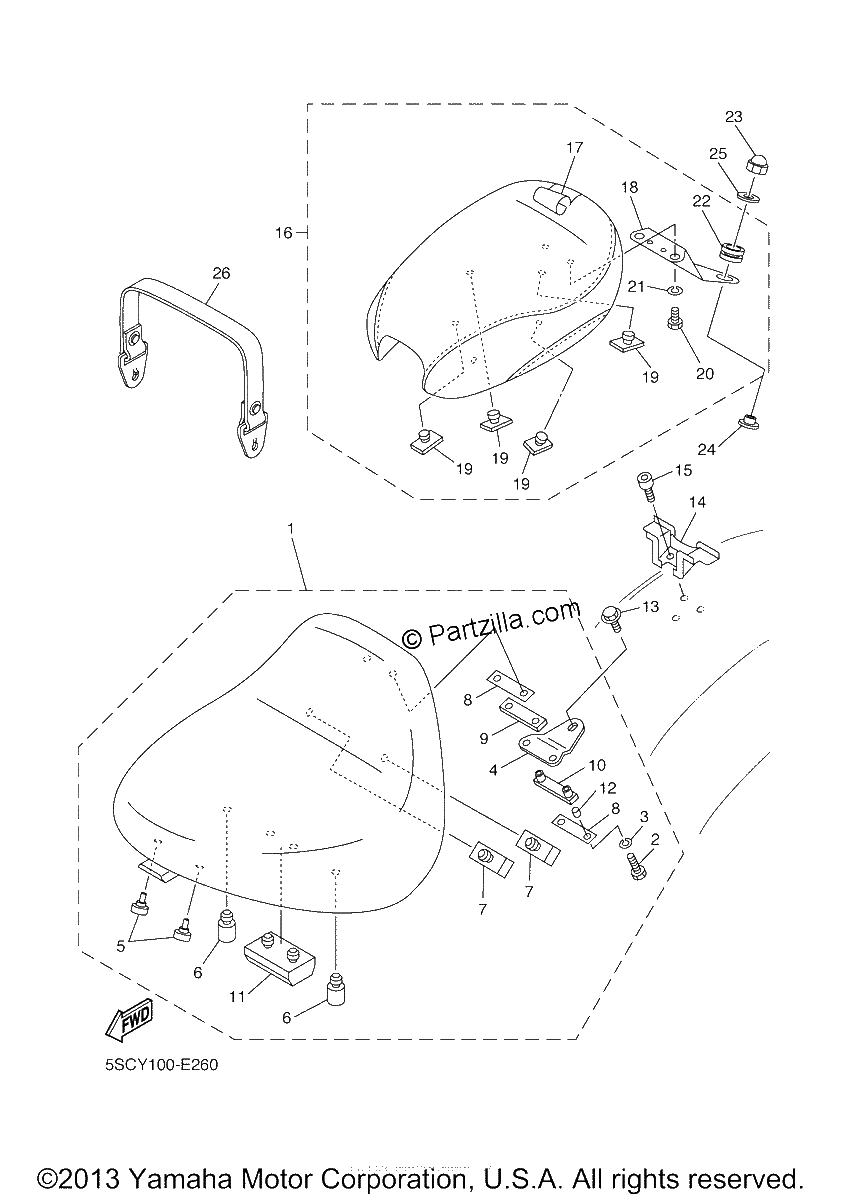

Diagrama de SEAT

Repuestos

#1
5BN-24710-10-00
SINGLE SEAT ASSY
$427.22¢213 612
1
#2
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#3
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#4
5BN-2475H-00-00
BRACKET, SEAT LEVER 1
$20.00¢9 999
1
#5
35T-24724-00-00
DAMPER, SEAT
$13.48¢6 739
1
#6
5BN-24723-00-00
DAMPER, SEAT
$4.69¢2 346
1
#7
5BN-24741-00-00
PAD, SEAT
$3.07¢1 535
1
#8
5BN-24736-00-00
WASHER
$7.38¢3 691
1
#9
5BN-24737-00-00
DAMPER, SEAT
$5.65¢2 823
1
#10
5BN-24747-00-00
DAMPER, SEAT
$8.79¢4 393
1
#11
5BN-24724-00-00
DAMPER, SEAT
$9.48¢4 738
1
#12
90387-067V1-00
COLLAR
$3.22¢1 610
1
#13
95024-08012-00
BOLT, FLANGE (SMALL HEAD)
$6.75¢3 375
1
#14
5BN-2475K-00-00
BRACKET 3
$104.40¢52 198
1
#15
91317-06012-00
BOLT
$6.75¢3 375
1
#16
5BN-24750-10-00
TANDEM SEAT ASSY
$169.82¢84 910
1
#17
5BN-24751-00-00
COVER, TANDEM SEAT
$104.32¢52 158
1
#18
5YS-2475J-00-00
BRACKET, SEAT LEVER 2
$25.09¢12 547
1
#19
509-24724-00-00
DAMPER, SEAT
$10.37¢5 187
1
#20
97017-06016-00
BOLT
$6.76¢3 381
1
#21
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#22
5YS-24742-00-00
GROMMET
$2.07¢1 035
1
#23
90176-08001-00
NUT, CROWN
$6.80¢3 398
1
#24
5YS-2471N-00-00
COLLAR 1
$10.43¢5 215
1
#25
90201-08042-00
WASHER, PLATE
$6.87¢3 433
1
#26
5BN-24720-00-00
SEAT BAND ASSY
$44.85¢22 425
1
