DRIVE SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

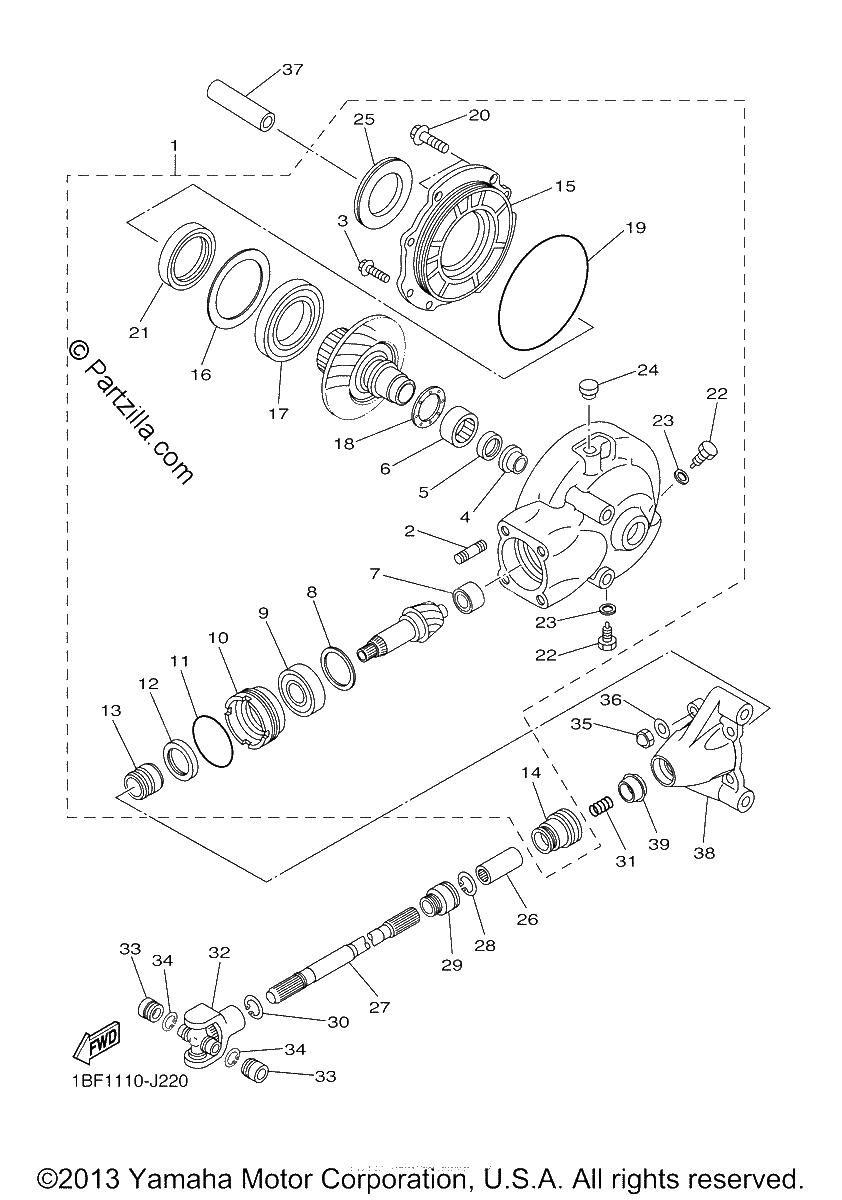

Diagrama de DRIVE SHAFT

Repuestos

#0
1J7-17537-Y0-30
SHIM, THRUST (0.30T) | UR
$4.43¢2 214
1
#0
22U-46117-00-40
SHIM, RING GEAR (0.40T) | UR
$4.12¢2 059
1
#0
22U-46118-00-18
SHIM, THRUST (1.8T) | UR
$10.09¢5 043
1
#0
22U-46118-00-14
SHIM, THRUST (1.4T) | UR
$10.19¢5 094
1
#0
22U-46118-00-12
SHIM, THRUST (1.2T) | UR
$9.98¢4 991
1
#0
22U-46118-00-16
SHIM, THRUST (1.6T) | UR
$10.12¢5 060
1
#0
22U-46117-00-25
SHIM, RING GEAR (0.25T) | UR
$4.12¢2 059
1
#0
1J7-17537-Y0-50
SHIM, THRUST (0.50T) | UR
$4.15¢2 076
1
#1
5FB-46101-01-00
REAR AXLE GEAR CASE ASSY
$1279.94¢639 969
1
#2
90116-10361-00
BOLT, STUD
$4.69¢2 346
1
#3
97527-08525-00
BOLT, WITH WASHER
$5.77¢2 886
1
#4
22U-46153-00-00
COLLAR, GUIDE
$25.90¢12 949
1
#5
93101-30084-00
OIL SEAL
$15.89¢7 946
1
#6
93311-43729-00
BEARING
$76.89¢38 445
1
#7
2H7-46102-00-00
BEARING ASSY
$57.14¢28 572
1
#8
1J7-17537-Y0-40
SHIM, THRUST (0.40T) | UR
$3.99¢1 995
1
#9
93306-30533-00
BEARING
$133.85¢66 924
1
#10
4H7-46125-00-00
RETAINER, BEARING
$60.03¢30 015
1
#11
93210-60426-00
O-RING
$9.46¢4 732
1
#12
93101-38098-00
OIL SEAL
$16.95¢8 476
1
#13
90387-25017-00
COLLAR
$32.07¢16 037
1
#14
5FB-46136-00-00
SEAL 1
$20.87¢10 436
1
#15
22U-46152-00-00
HOUSING, BEARING
$65.38¢32 689
1
#16
22U-46117-00-30
SHIM, RING GEAR (0.30T) | UR
$4.39¢2 197
1
#17
93316-01301-00
BEARING
$86.18¢43 091
1
#18
22U-46118-00-20
SHIM, THRUST (2.0T) | UR
$9.98¢4 991
1
#19
93211-39569-00
O-RING
$13.32¢6 658
1
#20
95817-10025-00
BOLT, FLANGE
$6.75¢3 375
1
#21
93102-65277-00
OIL SEAL
$16.26¢8 131
1
#22
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#23
214-11198-01-00
GASKET
$2.97¢1 483
1
#24
56W-17590-00-00
BREATHER COMP.
$29.29¢14 645
1
#25
1J7-25319-02-00
SEAL, HUB DUST
$16.26¢8 131
1
#26
22U-46123-00-00
COUPLING, GEAR
$50.04¢25 018
1
#27
5FB-46171-00-00
SHAFT DRIVE ASSY
$218.13¢109 066
1
#28
99009-18400-00
CIRCLIP
$7.30¢3 651
1
#29
5FB-46137-00-00
SEAL 2
$19.14¢9 568
1
#30
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#31
90501-15722-00
SPRING, COMPRESSION
$6.36¢3 180
1
#32
4X7-46180-00-00
CROSS JOINT COMP.
$189.67¢94 835
1
#33
93399-99926-00
BEARING
$63.96¢31 981
1
#34
93440-20088-00
CIRCLIP
$5.75¢2 875
1
#35
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#36
92990-10600-00
WASHER, PLATE
$3.02¢1 512
1
#37
90387-1510D-00
COLLAR
$13.83¢6 917
1
#38
4TR-46154-00-00
COVER, HOUSING
$85.47¢42 734
1
#39
35C-46297-00-00
COVER, DUST
$20.82¢10 408
1
