ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

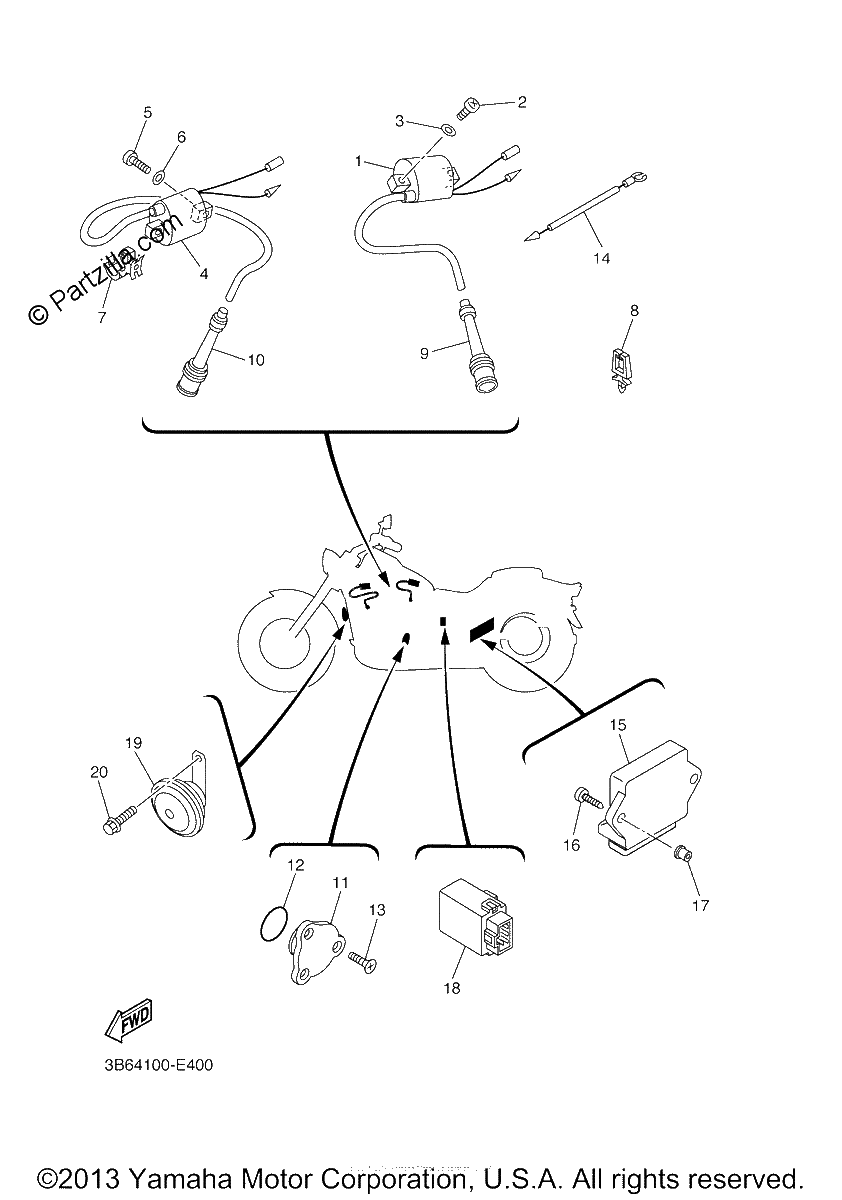

Diagrama de ELECTRICAL 2

Repuestos

#1
4VR-82320-00-00
IGNITION COIL ASSY
$173.61¢86 806
1
#2
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
1
#3
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#4
4VR-82320-00-00
IGNITION COIL ASSY
$173.61¢86 806
1
#5
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
1
#6
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#7
90464-10190-00
CLAMP
$8.64¢4 319
1
#8
90464-05141-00
CLAMP
$2.58¢1 288
1
#9
4XY-82370-00-00
PLUG CAP ASSY
$86.41¢43 206
1
#10
4VW-82370-00-00
PLUG CAP ASSY
$74.63¢37 313
1
#11
1L9-82540-00-00
NEUTRAL SWITCH ASSY
$47.34¢23 669
1
#12
93210-29196-00
O-RING
$7.69¢3 844
1
#13
90149-05245-00
SCREW
$7.35¢3 675
1
#14
4TR-82509-00-00
WIRE, SUB LEAD
$9.31¢4 656
1
#15
5SC-82305-30-00
IGNITOR UNIT ASSY
$1069.83¢534 913
1
#16
97707-60020-00
SCREW, TAPPING
$0.55¢275
1
#17
90338-08226-00
PLUG
$1.94¢969
1
#18
2UJ-83350-00-00
FLASHER RELAY ASSY
$141.85¢70 925
1
#19
5YS-83371-00-00
HORN
$58.75¢29 375
1
#20
90105-082A5-00
BOLT, FLANGE
$3.25¢1 625
1
