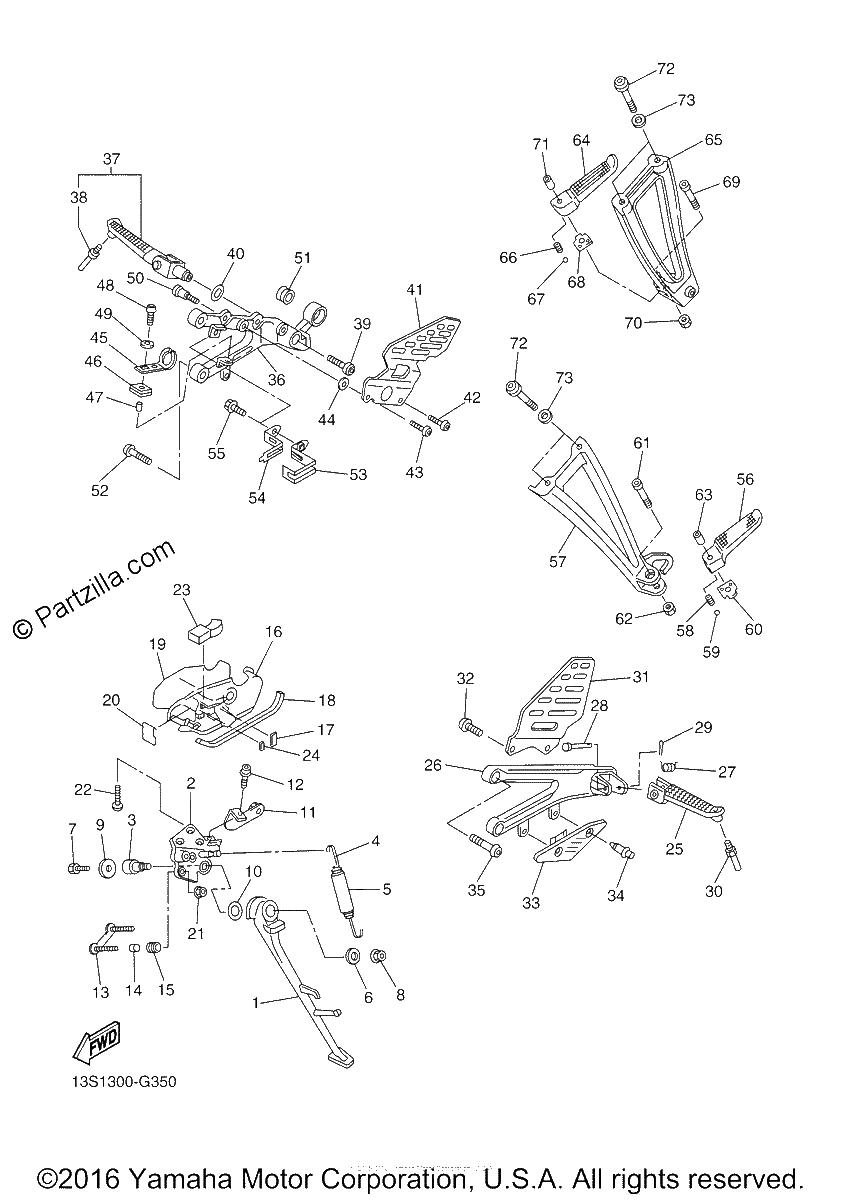

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$298.16¢149 081
#2
BRACKET, SIDE STAND
No Disponible
#3
GUIDE, SIDE STAND
$66.19¢33 094
#4
SPRING, TENSION
$15.79¢7 894
#5
HOSE (L60)
$6.10¢3 050
#6
WASHER, plate
$4.25¢2 125
#7
BOLT
$7.60¢3 800
#8
NUT, U FLANGE
$2.73¢1 363
#9
WASHER, PLATE
$5.84¢2 919
#10
WASHER, PLATE
$5.95¢2 975
#11
BRACKET 3
$25.63¢12 813
#12
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#13
BRACKET 1
$14.66¢7 331
#14
COLLAR
$6.15¢3 075
#15
GROMMET
$3.50¢1 750
#16
COVER 1
$20.21¢10 106
#17
DAMPER, FOOTREST
$7.86¢3 931
#18
PLATE, FOOTREST
$7.95¢3 975
#19
SEAL 1
$42.39¢21 194
#20
SEAL 2
$10.06¢5 031
#21
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
#22
BOLT, BUTTON HEAD
$6.74¢3 369
#23
DAMPER 3
$6.15¢3 075
#24
DAMPER, RUBBER 1
$7.60¢3 800
#25
FOOTREST
$58.72¢29 362
#26
BRACKET 2
$120.74¢60 369
#27
SPRING, TORSION
$7.35¢3 675
#28
PIN
$4.65¢2 325
#29
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#30
BOLT
$21.36¢10 681
#31
PLATE 1
$67.72¢33 863
#32
BOLT, BUTTON HEAD
$2.44¢1 219
#33
PROTECTOR
$7.97¢3 988
#34
RIVET
$8.80¢4 400
#35
BOLT
$2.26¢1 131
#36
BRACKET 3
$166.63¢83 313
#37
FRONT FOOTREST ASSY (RIGHT)
$96.45¢48 225
#38
BOLT
$21.36¢10 681
#39
BOLT,HEX. SOCKET BUT
$8.24¢4 119
#39
BRACKET 8
$8.77¢4 387
#40
WASHER, CLAW
$7.48¢3 738
#41
PLATE 2
$89.56¢44 781
#42
BOLT, BUTTON HEAD
$2.44¢1 219
#43
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$6.47¢3 238
#44
COLLAR
$4.97¢2 488
#45
STAY, STOP SWITCH
$5.72¢2 863
#46
GROMMET
$10.18¢5 088
#47
COLLAR
$9.13¢4 563
#48
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#49
WASHER PLAIN
$0.69¢344
#50
BOLT
$7.60¢3 800
#51
DAMPER, MUFFLER
$8.35¢4 175
#52
BOLT
$2.26¢1 131
#54
BRACKET 9
$4.60¢2 300
#55
Bolt, Flange
$4.38¢2 188
#56
FOOTREST, REAR 1
$85.08¢42 538
#57
BRACKET 4 | UR FOR DPBMC
$82.65¢41 325
#58
SPRING, COMPRESSION
$3.81¢1 906
#59
BALL
$7.46¢3 731
#60
WASHER, special
$7.03¢3 513
#61
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#62
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#63
Collar
$15.88¢7 938
#64
FOOTREST, REAR 2
$75.61¢37 806
#65
BRACKET 5 | UR FOR DPBMC
$81.69¢40 844
#66
SPRING, COMPRESSION
$3.81¢1 906
#67
BALL
$7.46¢3 731
#68
WASHER, special
$7.03¢3 513
#69
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#70
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#71
Collar
$15.88¢7 938
#72
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
#73
WASHER, FOOTREST
$12.14¢6 069
