COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

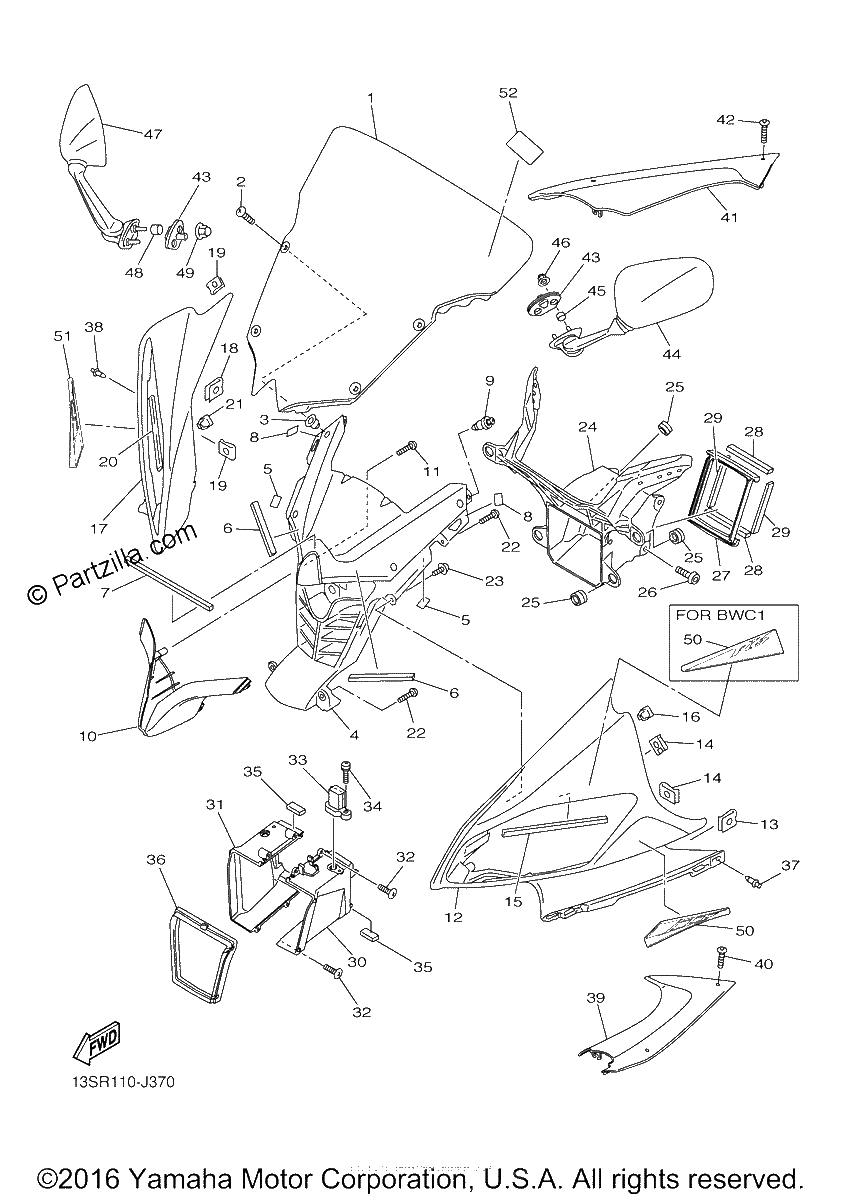

Diagrama de COWLING 1

Repuestos

#0
13S-2835G-00-P1
BODY, FRONT UPPER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$339.63¢169 813
1
#0
13S-2835H-00-P3
BODY, FRONT UPPER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$332.24¢166 119
1
#0
13S-2835H-00-P0
BODY, FRONT UPPER 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$344.60¢172 300
1
#0
13S-2835G-00-P3
BODY, FRONT UPPER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$338.86¢169 431
1
#0
13S-2832B-C0-00
GRAPHIC, 15 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$12.86¢6 431
1
#0
13S-2832C-C0-00
GRAPHIC, 16 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$12.86¢6 431
1
#1
13S-28381-10-00
Windshield
$115.55¢57 775
1
#2
90150-05023-00
SCREW,ROUND HEAD
$3.33¢1 663
1
#3
90179-05523-00
NUT
$6.78¢3 388
1
#4
13S-2836K-00-00
PANEL, INNER 1
$87.94¢43 969
1
#5
3P6-28217-00-00
DAMPER 1
$7.70¢3 850
1
#6
13S-28227-00-00
DAMPER 2
$7.08¢3 538
1
#7
13S-28237-00-00
DAMPER 3
$7.95¢3 975
1
#8
13S-28371-00-00
Damper
$7.08¢3 538
1
#9
90269-06001-00
RIVET
$6.45¢3 225
1
#10
13S-28365-00-P0
COVER | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$103.90¢51 950
1
#11
97707-40016-00
SCREW, TAPPING
$7.35¢3 675
1
#12
13S-2835G-00-P0
BODY, FRONT UPPER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$356.10¢178 050
1
#13
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#14
90183-05042-00
NUT, SPRING
$1.25¢625
1
#15
2C0-28455-00-00
DAMPER, 4
$6.55¢3 275
1
#16
90480-01605-00
Grommet
$8.71¢4 356
1
#17
13S-2835H-00-P1
BODY, FRONT UPPER 2 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$366.85¢183 425
1
#18
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#19
90183-05042-00
NUT, SPRING
$1.25¢625
1
#20
2C0-28455-00-00
DAMPER, 4
$6.55¢3 275
1
#21
90480-01605-00
Grommet
$8.71¢4 356
1
#22
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#23
97707-40012-00
SCREW, TAPPING
$7.95¢3 975
1
#24
13S-28356-00-00
STAY 1
$529.61¢264 806
1
#25
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#26
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#27
2C0-28342-01-00
JOINT
$4.38¢2 188
1
#28
2C0-28217-00-00
DAMPER 1
$1.50¢750
1
#29
2C0-28227-00-00
DAMPER 2
$6.45¢3 225
1
#30
13S-2838R-00-00
DUCT 2
$13.26¢6 631
1
#31
13S-2838T-00-00
DUCT 3
$12.29¢6 144
1
#32
97707-40016-00
SCREW, TAPPING
$7.35¢3 675
1
#33
8FP-85886-00-00
SENSOR, AIR TEMPERATURE
$61.02¢30 513
1
#34
97780-50116-00
SCREW, TAPPING
$1.75¢875
1
#35
51Y-21639-00-00
DAMPER 2
$6.45¢3 225
1
#36
2C0-28371-00-00
Damper
$34.63¢17 313
1
#37
90269-06008-00
RIVET
$8.80¢4 400
1
#38
90269-06008-00
RIVET
$8.80¢4 400
1
#39
13S-2837L-00-00
PANEL, console 1
$24.25¢12 125
1
#40
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#41
13S-2837M-00-00
PANEL, CONSOLE 2
$24.02¢12 013
1
#42
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#43
13S-26298-00-00
PLATE, MIRROR FITTIN
$9.91¢4 956
1
#44
13S-26280-10-00
REAR VIEW MIRROR ASS
$184.70¢92 350
1
#45
90387-064T3-00
COLLAR (J45)
$5.93¢2 963
1
#46
90176-06008-00
NUT, CROWN
$2.73¢1 363
1
#47
13S-26290-10-00
REAR VIEW MIRROR ASS
$130.34¢65 169
1
#48
90387-064T3-00
COLLAR (J45)
$5.93¢2 963
1
#49
90176-06008-00
NUT, CROWN
$2.73¢1 363
1
#50
13S-2832L-B0-00
GRAPHIC, 13 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$22.57¢11 288
1
#51
1S2-2832C-C0-00
GRAPHIC, 16 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
No Disponible
1
#52
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
