CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

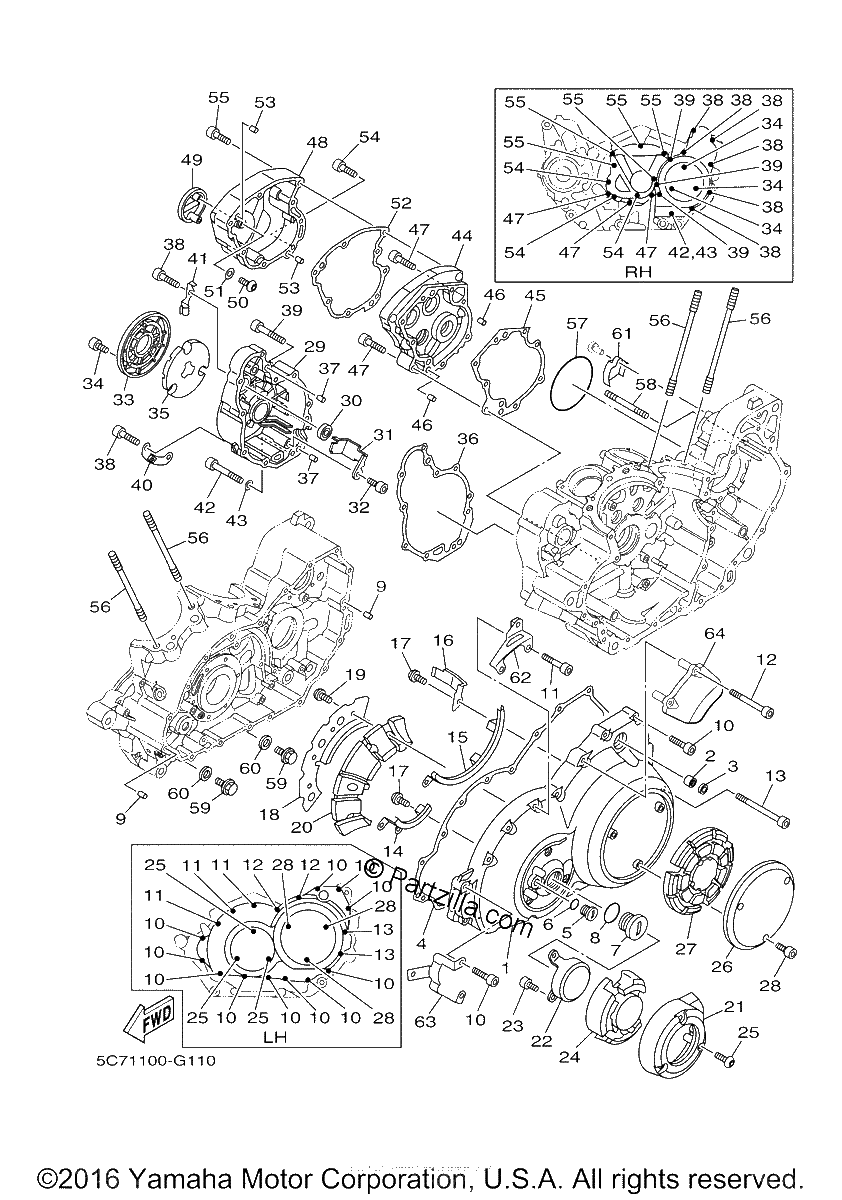

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1D7-15411-10-00
COVER, CRANKCASE 1
$388.18¢194 091
1
#2
93317-11287-00
BEARING
$22.45¢11 224
1
#3
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#4
1D7-15451-00-00
GASKET, CRANKCASE COVER 1
$40.01¢20 004
1
#5
90340-14117-00
PLUG, STRAIGHT SCREW
$12.72¢6 360
1
#6
93210-14369-00
O-Ring
$6.36¢3 180
1
#7
90340-32140-00
PLUG, STRAIGHT SCREW
No Disponible
1
#8
93210-32172-00
O-Ring
$6.32¢3 162
1
#9
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#10
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#11
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#12
91314-06080-00
BOLT, HEXAGON SOCKET HEAD
$3.73¢1 863
1
#13
91314-06100-00
BOLT, HEXAGON SOCKET HEAD
$6.08¢3 042
1
#14
1D7-15142-00-00
GUIDE 1
$10.02¢5 008
1
#15
1D7-15143-00-00
GUIDE
$11.09¢5 543
1
#16
5C7-15484-00-00
CLAMP 2
$15.05¢7 527
1
#17
90149-06068-00
SCREW
$3.67¢1 834
1
#18
1D7-15645-01-00
PLATE
$16.73¢8 366
1
#19
90149-06068-00
SCREW
$3.67¢1 834
1
#20
1D7-1542B-01-00
DAMPER 2
$67.33¢33 666
1
#21
1D7-15423-10-00
COVER 2
$97.45¢48 726
1
#22
5C7-15425-00-00
COVER, GENERATOR 2
$47.76¢23 880
1
#23
91312-05010-00
BOLT
$5.39¢2 697
1
#24
1D7-15316-00-00
DAMPER 1
$54.50¢27 249
1
#25
92014-06040-00
BOLT, BUTTON HEAD
$2.07¢1 035
1
#26
1D7-15415-10-00
COVER, 1
$89.61¢44 804
1
#27
1D7-1542A-00-00
DAMPER 1
$47.43¢23 713
1
#28
91314-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#29
1D7-15421-00-00
COVER, CRANKCASE 2
$153.70¢76 849
1
#30
93306-00004-00
BEARING
$35.85¢17 923
1
#31
4WM-15377-00-00
GUIDE, INLET
$9.34¢4 669
1
#32
90149-06156-00
SCREW
$6.96¢3 479
1
#33
1D7-15492-10-00
COVER
$64.68¢32 338
1
#34
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.58¢1 288
1
#35
1D7-15326-00-00
DAMPER 2
$31.80¢15 899
1
#36
1D7-15461-00-00
GASKET, CRANKCASE COVER 2
$6.82¢3 410
1
#37
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#38
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#39
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
1
#39
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#40
1D7-26298-00-00
PLATE, MIRROR FITTING 1
$7.21¢3 605
1
#41
1D7-2612E-00-00
BRACKET
$15.05¢7 527
1
#42
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#43
90430-06014-00
GASKET
$7.59¢3 795
1
#44
1D7-15430-01-00
CRANKCASE COVER ASSY 3
$153.97¢76 987
1
#45
1D7-15462-00-00
GASKET, CRANKCASE COVER 3
$11.30¢5 652
1
#46
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#47
90110-06299-00
BOLT, HEXAGON SOCKET HEAD
$6.05¢3 024
1
#48
1D7-15429-10-00
COVER, SHIFTER
$157.49¢78 746
1
#49
1D7-15427-00-00
COVER, CAP 2
$80.56¢40 279
1
#50
90149-06068-00
SCREW
$3.67¢1 834
1
#51
90430-06014-00
GASKET
$7.59¢3 795
1
#52
1D7-12286-00-00
GASKET, DECOMPRESSION
$7.08¢3 542
1
#54
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#55
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#56
90116-12240-00
BOLT, STUD
$15.59¢7 797
1
#57
93210-85075-00
O-RING
$4.97¢2 484
1
#58
90116-10028-00
BOLT, STUD
$5.75¢2 875
1
#59
90340-14005-00
PLUG, STRAIGHT SCREW
$16.09¢8 044
1
#60
214-11198-01-00
GASKET
$2.97¢1 483
1
#61
1D7-15413-00-00
COVER
$17.55¢8 775
1
#62
5C7-24364-00-00
STAY
$31.76¢15 881
1
#63
5C7-24396-00-00
PLATE | FOR U49
$36.93¢18 463
1
#64
5C7-15499-11-00
PROTECTOR, COVER
$133.31¢66 654
1
