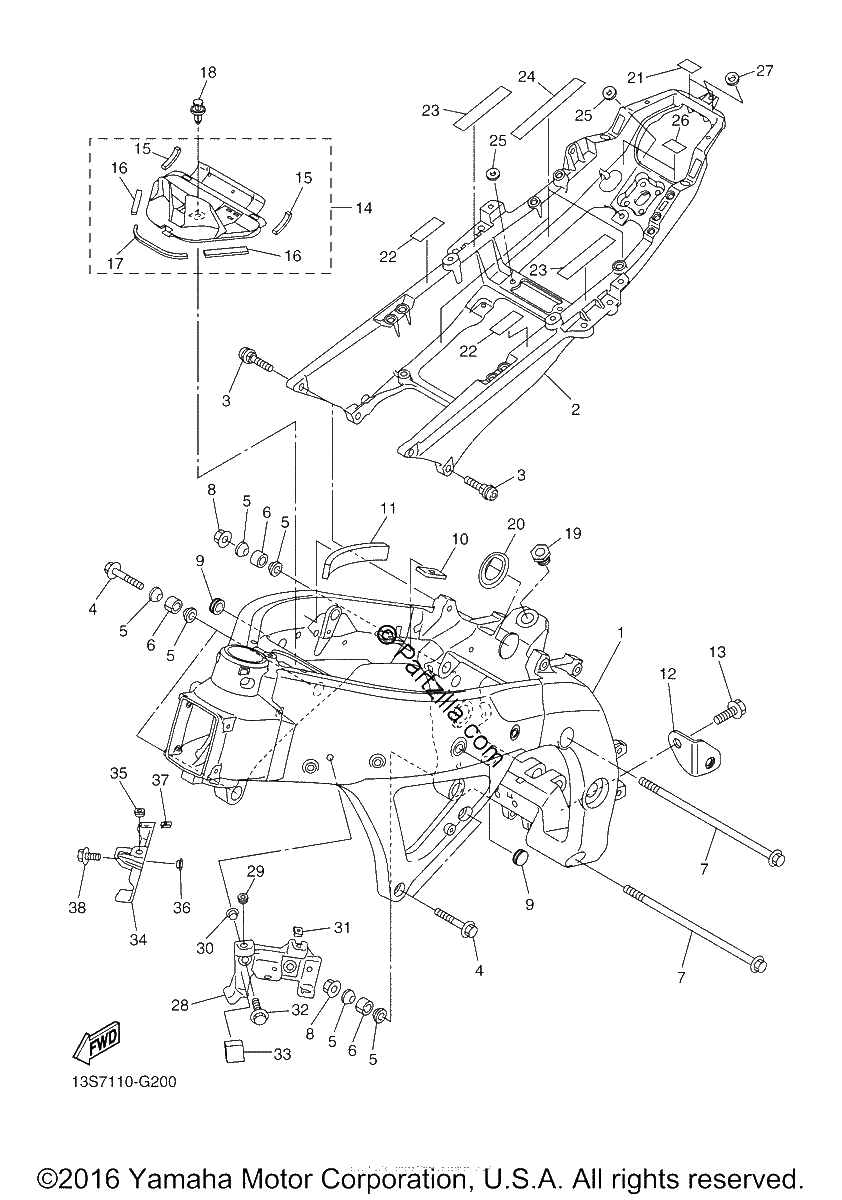

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$2853.74¢1 426 869
#2
REAR FRAME COMP.
$1043.74¢521 869
#3
SCREW,SET
$47.91¢23 956
#4
BOLT, FLANGE (SMALL HEAD)
$4.04¢2 019
#5
BOSS, ENGINE MOUNT
$29.39¢14 694
#6
BOSS, ENGINE MOUNT
$44.84¢22 419
#7
BOLT, FLANGE
$21.05¢10 525
#8
NUT
$6.23¢3 113
#9
PLUG
$7.46¢3 731
#10
DAMPER, LOCATING 2
$7.91¢3 956
#11
DAMPER 2
$7.08¢3 538
#12
BRACKET, MUFFLER 1
$22.48¢11 238
#13
Bolt, Flange
$2.01¢1 006
#14
COVER ASSY 1
$54.81¢27 406
#15
DAMPER
$3.73¢1 863
#16
DAMPER
$4.00¢2 000
#17
DAMPER
$3.73¢1 863
#18
RIVET
$4.45¢2 225
#19
BOLT 1
$18.94¢9 469
#20
PLUG, BLIND
$5.59¢2 794
#21
TAPE, 1
$7.91¢3 956
#22
TAPE, 2
$3.75¢1 875
#23
TAPE, 1
$9.11¢4 556
#24
TAPE, 2
$16.14¢8 069
#25
SEAL 1
$5.36¢2 681
#26
TAPE, 1
$7.91¢3 956
#27
DAMPER
$7.95¢3 975
#28
BRACKET 7
$9.49¢4 744
#29
GROMMET
$7.48¢3 738
#30
Collar
$7.23¢3 613
#31
NUT, SPRING
$2.82¢1 412
#32
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
#33
DAMPER, SHROUD 6
$3.73¢1 863
#34
BRACKET 8
$6.76¢3 381
#35
GROMMET
$7.48¢3 738
#36
Collar
$7.23¢3 613
#37
NUT, SPRING
$2.82¢1 412
#38
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
