EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

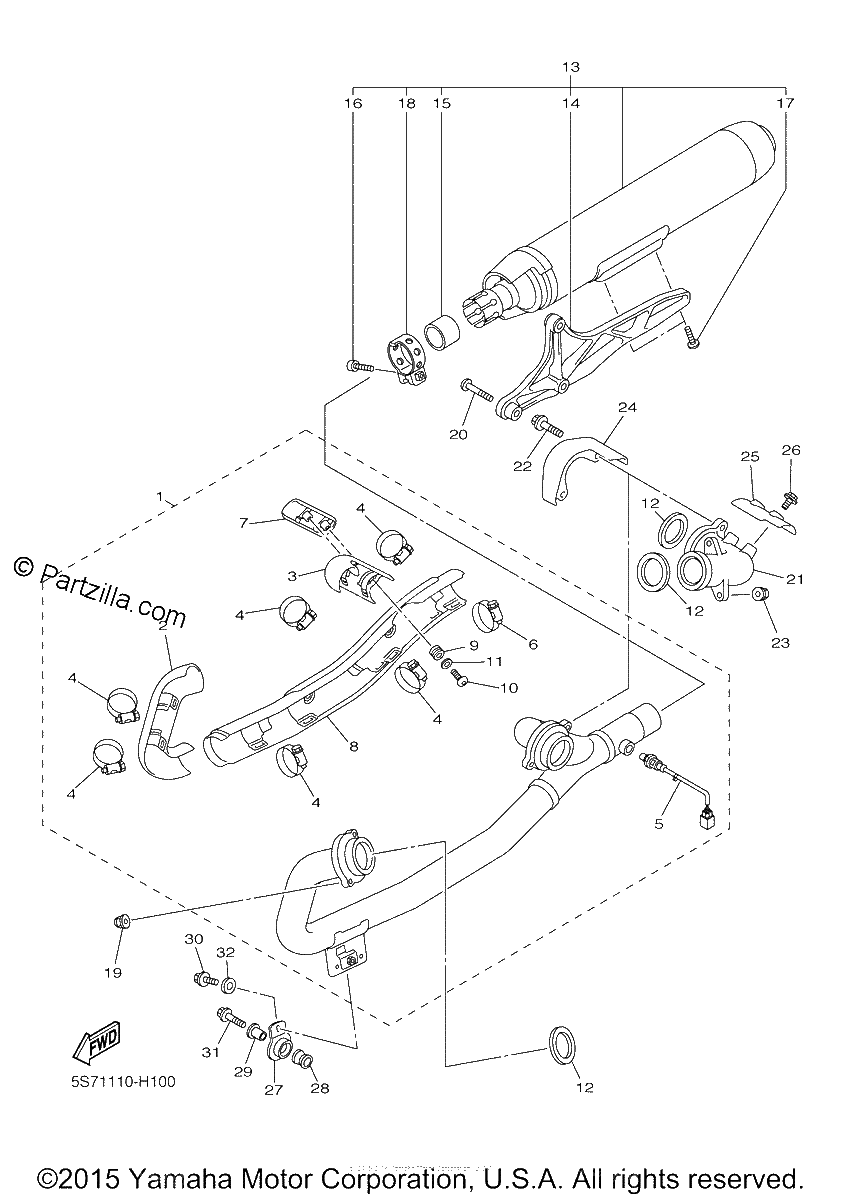

Diagrama de EXHAUST

Repuestos

#1
5S7-14610-00-00
EXHAUST PIPE ASSY 1
$1346.64¢673 319
1
#2
5S7-14718-10-00
PROTECTOR, MUFFLER 1
$221.97¢110 986
1
#3
5S7-14728-10-00
PROTECTOR, MUFFLER 2
$283.61¢141 807
1
#4
90450-40001-00
HOSE CLAMP ASSY
$13.35¢6 676
1
#5
5S7-8592A-00-00
SENSOR, OXYGEN
$229.01¢114 505
1
#6
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#7
5S7-14748-00-00
PROTECTOR, MUFFLER 4
$120.96¢60 479
1
#8
5S7-14738-00-00
PROTECTOR, MUFFLER 3
$686.54¢343 269
1
#9
90480-17005-00
GROMMET
$6.46¢3 231
1
#10
90149-06280-00
SCREW
$5.01¢2 507
1
#11
90201-064K6-00
WASHER, PLATE
$6.88¢3 439
1
#12
3EG-14613-00-00
GASKET, EXHAUST PIPE
$22.10¢11 051
1
#13
5S7-14710-00-00
MUFFLER ASSY 1
$1528.34¢764 169
1
#14
5S7-14772-00-00
STAY, MUFFLER 2
$283.38¢141 692
1
#15
5YU-14755-00-00
GASKET, SILENCER
$27.15¢13 576
1
#16
91314-08040-00
BOLT (3JP)
$5.75¢2 875
1
#17
90111-10006-00
BOLT, HEX. SOCKET BUTTON
$5.06¢2 530
1
#18
5S7-14715-00-00
BAND, MUFFLER
$53.34¢26 668
1
#19
90176-08006-00
NUT, CROWN
$3.16¢1 581
1
#20
90111-10032-00
BOLT, HEX. SOCKET BUTTON
$5.78¢2 892
1
#21
5S7-14615-00-00
JOINT, EXHAUST 1
$118.19¢59 093
1
#22
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.30¢3 651
1
#23
90185-08146-00
NUT, SELF-LOCKING
$9.29¢4 646
1
#24
5S7-14624-00-00
COVER, EXHAUST
$101.18¢50 588
1
#25
5S7-1468W-00-00
PLATE, SILENCER 3
$13.06¢6 532
1
#26
95880-06010-00
BOLT, FLANGE
$4.00¢2 001
1
#27
5S7-14649-00-00
STAY, EXHAUST PIPE 2
$35.82¢17 911
1
#28
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#29
90387-08021-00
COLLAR
$9.33¢4 663
1
#30
95817-08020-00
BOLT, FLANGE
$7.65¢3 824
1
#31
95817-08030-00
BOLT, FLANGE
$6.75¢3 375
1
#32
90201-087A9-00
WASHER, PLATE
$4.09¢2 047
1
