STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

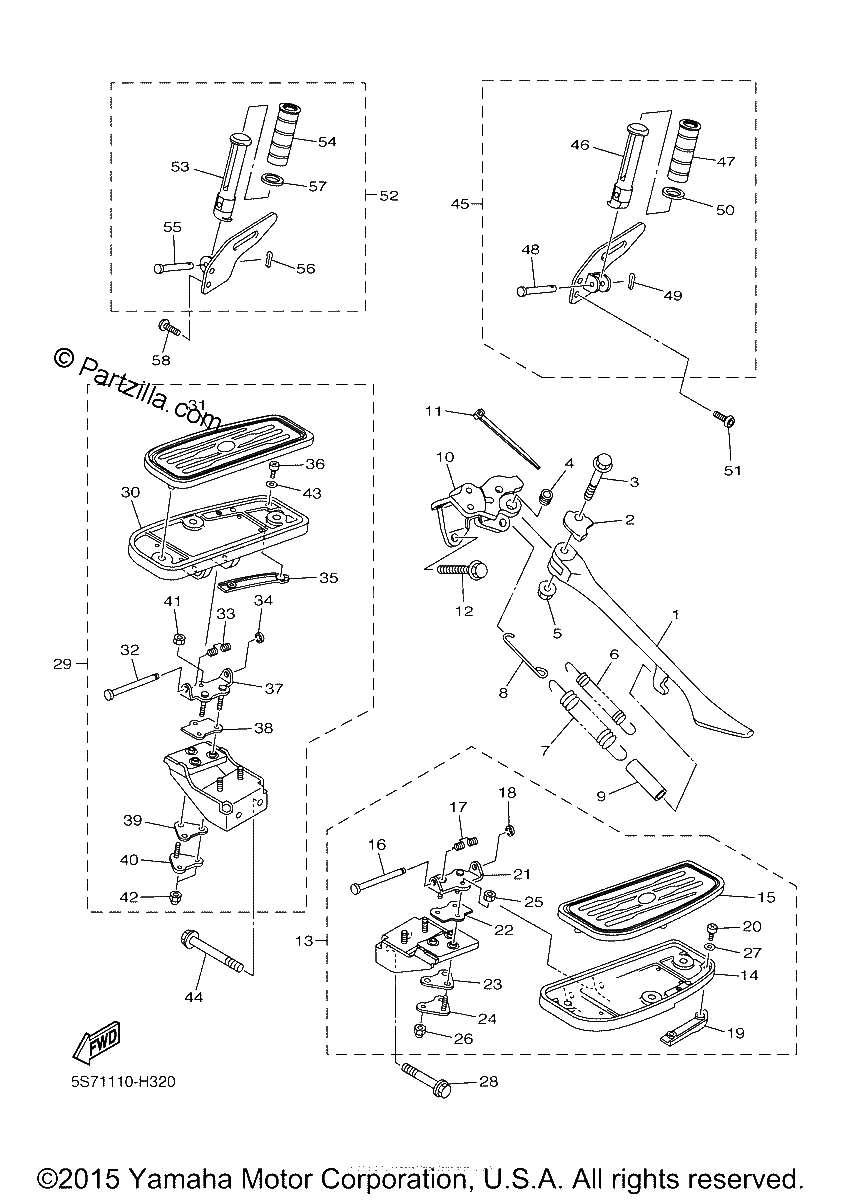

Diagrama de STAND FOOTREST

Repuestos

#1
5S7-27311-00-00
STAND, SIDE
$161.63¢80 813
1
#2
5S7-27322-00-00
WASHER
$16.44¢8 219
1
#3
90105-10315-00
BOLT, FLANGE
$9.51¢4 756
1
#4
90387-1003G-00
COLLAR
$21.92¢10 962
1
#5
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
#6
90506-23015-00
SPRING, TENSION
$10.66¢5 331
1
#7
90506-29006-00
SPRING, TENSION
$15.34¢7 669
1
#8
3D8-27315-00-00
LINK, SIDE STAND
$8.03¢4 013
1
#9
90445-16641-00
HOSE (L60)
$7.28¢3 638
1
#10
3D8-27321-00-00
BRACKET, SIDE STAND
$271.74¢135 869
1
#11
1UA-82591-00-00
BAND
$4.91¢2 456
1
#12
90105-10158-00
BOLT, FLANGE
$9.13¢4 563
1
#13
5S7-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$439.85¢219 925
1
#14
4NK-27451-10-00
FOOTREST
$70.92¢35 463
1
#15
5S7-27413-00-00
COVER, FOOTREST
$53.94¢26 969
1
#16
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#17
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#18
99002-06600-00
CIRCLIP
$1.02¢513
1
#19
4WM-27496-00-00
MOLE 1
$65.17¢32 588
1
#20
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#21
5S7-2787A-00-00
BRACKET 1
$24.59¢12 294
1
#22
5S7-27414-00-00
DAMPER, FOOTREST
$4.60¢2 300
1
#23
5S7-27424-00-00
DAMPER, FOOTREST 2
$3.02¢1 513
1
#24
5S7-27123-00-00
PLATE, STOPPER
$7.21¢3 606
1
#25
95317-06600-00
NUT
$3.21¢1 606
1
#26
90176-06041-00
NUT, CROWN
$3.26¢1 631
1
#27
92990-05200-00
WASHER, PLAIN
$5.47¢2 738
1
#28
90105-10323-00
BOLT, FLANGE
$4.95¢2 475
1
#29
5S7-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$439.85¢219 925
1
#30
4NK-27461-10-00
FOOTREST
$93.06¢46 531
1
#31
5S7-27423-00-00
COVER, FOOTREST
$44.07¢22 037
1
#32
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#33
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#34
99002-06600-00
CIRCLIP
$1.02¢513
1
#35
4WM-27497-00-00
MOLE 2
$65.14¢32 569
1
#36
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#37
5S7-2787A-00-00
BRACKET 1
$24.59¢12 294
1
#38
5S7-27414-00-00
DAMPER, FOOTREST
$4.60¢2 300
1
#39
4WM-27431-00-00
FOOTREST, REAR 1
$17.79¢8 894
1
#39
5S7-27424-00-00
DAMPER, FOOTREST 2
$3.02¢1 513
1
#40
5S7-27123-00-00
PLATE, STOPPER
$7.21¢3 606
1
#41
95317-06600-00
NUT
$3.21¢1 606
1
#42
90176-06041-00
NUT, CROWN
$3.26¢1 631
1
#43
92990-05200-00
WASHER, PLAIN
$5.47¢2 738
1
#44
90105-10747-00
BOLT, FLANGE
$4.55¢2 275
1
#45
5S7-27430-00-00
REAR FOOTREST ASSY 1
No Disponible
1
#46
4WM-27431-00-00
FOOTREST, REAR 1
$17.79¢8 894
1
#47
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#48
91701-06032-00
PIN
$8.16¢4 081
1
#49
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#50
90201-210U0-00
WASHER, PLATE
$9.24¢4 619
1
#51
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$8.64¢4 319
1
#52
5S7-27440-00-00
REAR FOOTREST ASSY 2
$76.35¢38 175
1
#54
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#55
91701-06032-00
PIN
$8.16¢4 081
1
#56
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#57
90201-210U0-00
WASHER, PLATE
$9.24¢4 619
1
#58
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$8.64¢4 319
1
