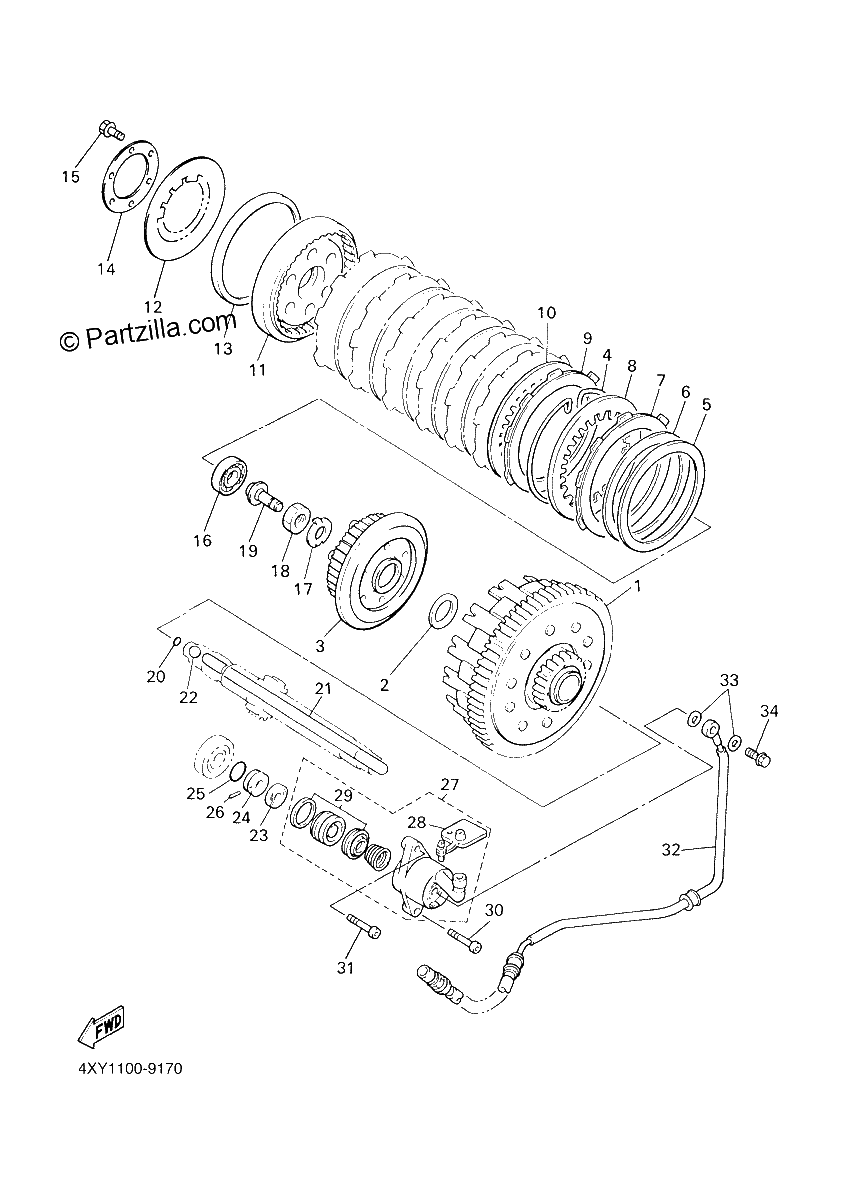

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PRIMARY DRIVEN GEAR COMP.
No Disponible
#2
PLATE, THRUST 1
$23.24¢11 619
#3
BOSS, CLUTCH
$189.94¢94 969
#4
RING SET
$8.97¢4 488
#5
PLATE, SEAT
$30.26¢15 131
#6
SPRING, CUSHION
$55.58¢27 788
#7
PLATE, FRICTION
$18.80¢9 400
#8
PLATE, CLUTCH 1
$13.57¢6 788
#9
PLATE, FRICTION 3
$22.17¢11 087
#10
PLATE, CLUTCH 1
$13.57¢6 788
#11
PLATE, PRESSURE 1
$97.83¢48 913
#12
SPRING, CLUTCH 2
$156.16¢78 081
#13
HOUSING, SPRING
$34.04¢17 019
#14
PLATE, PRESSURE 2
$29.00¢14 500
#15
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
#16
BEARING
$33.26¢16 631
#17
WASHER, LOCK
$9.60¢4 800
#18
NUT
$23.20¢11 600
#19
ROD,PUSH 1
$31.51¢15 756
#20
O-Ring
$7.94¢3 969
#21
ROD, PUSH 2
$21.05¢10 525
#22
BALL
$7.34¢3 669
#23
OIL SEAL
$6.76¢3 381
#24
GUIDE, PUSH ROD
$45.21¢22 606
#25
O-RING
$5.41¢2 706
#26
PIN, DOWEL
$6.96¢3 481
#27
PUSH LEVER COMP.
$185.26¢92 631
#28
BLEED SCREW KIT
$26.92¢13 462
#29
PUSH LEVER SEAL KIT
$57.15¢28 575
#30
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#31
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#32
PIPE, CLUTCH 1
$225.07¢112 538
#33
WASHER, PLATE
$3.44¢1 719
#34
BOLT, UNION
$10.54¢5 269
