FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

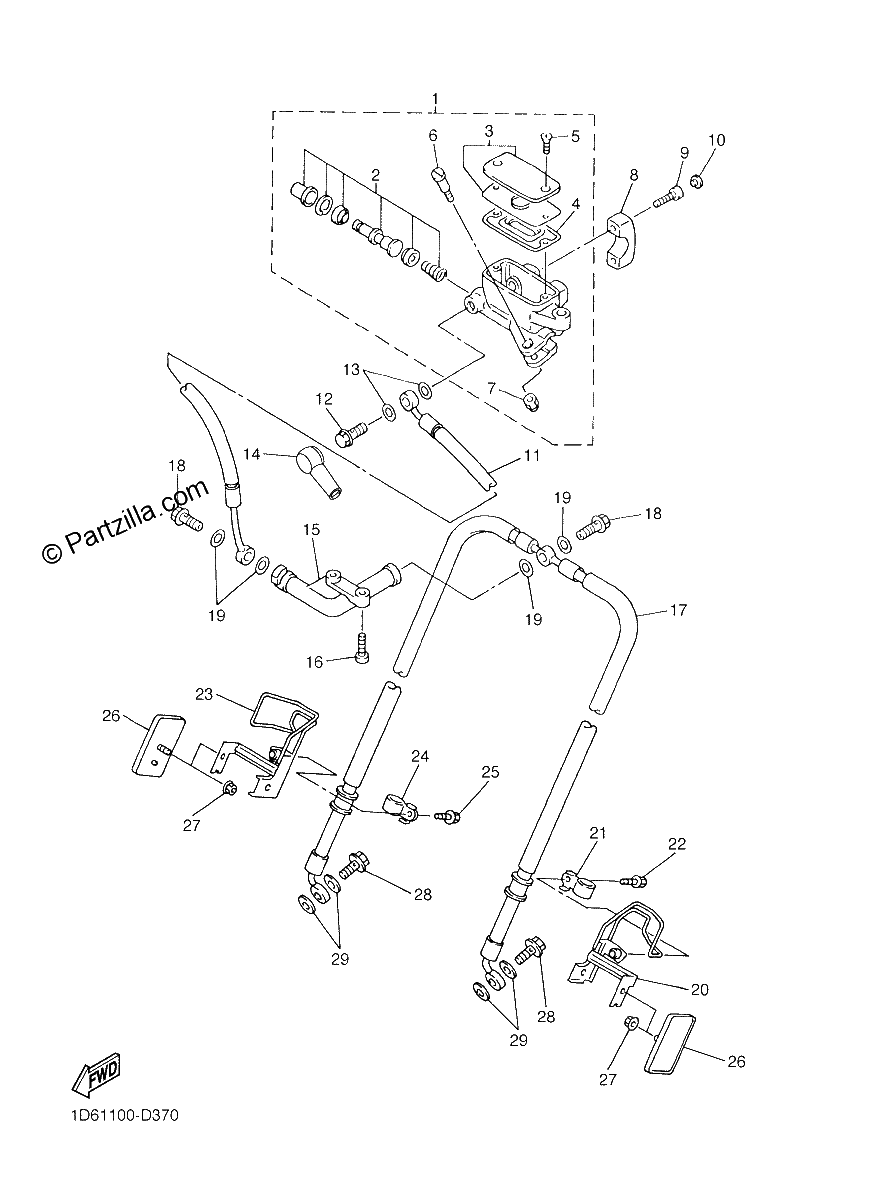

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
4XY-W2587-10-00
MASTER CYLINDER SUB ASSY
$272.65¢136 327
1
#2
4K0-W0041-50-00
CYLINDER KIT, MASTER
$90.34¢45 172
1
#3
5VN-W2585-20-00
RESERVOIR CAP SET
$60.82¢30 412
1
#4
4NK-25854-00-00
DIAPHRAGM, RESERVOIR
$21.75¢10 873
1
#5
3D8-2589H-10-00
SCREW
$7.08¢3 542
1
#6
4NK-2589F-00-00
BOLT, LEVER
$10.65¢5 325
1
#7
95604-06100-00
NUT, U
$7.30¢3 651
1
#8
4NK-25867-00-00
BRACKET, MASTER CYLINDER
$25.56¢12 782
1
#9
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#10
90338-06162-00
PLUG
$11.19¢5 595
1
#11
1D6-25872-00-00
Hose, Brake 1
$97.12¢48 559
1
#12
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#13
90430-10005-00
GASKET
$7.72¢3 858
1
#14
4L0-25862-01-00
BOOT, MASTER CYLINDER
$6.99¢3 496
1
#15
4NK-25885-00-00
JOINT
$57.30¢28 652
1
#16
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#17
1D6-25873-00-00
Hose, Brake 2
$97.12¢48 559
1
#18
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#19
90430-10005-00
GASKET
$7.72¢3 858
1
#20
4XY-25875-00-00
HOLDER, BRAKE HOSE 1
$26.65¢13 323
1
#21
90461-08031-00
CLAMP
$7.37¢3 686
1
#22
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#23
4XY-25886-00-00
HOLDER, BRAKE HOSE
$34.50¢17 250
1
#24
90461-08031-00
CLAMP
$7.37¢3 686
1
#25
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#26
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#27
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#28
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#29
90430-10005-00
GASKET
$7.72¢3 858
1
