MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

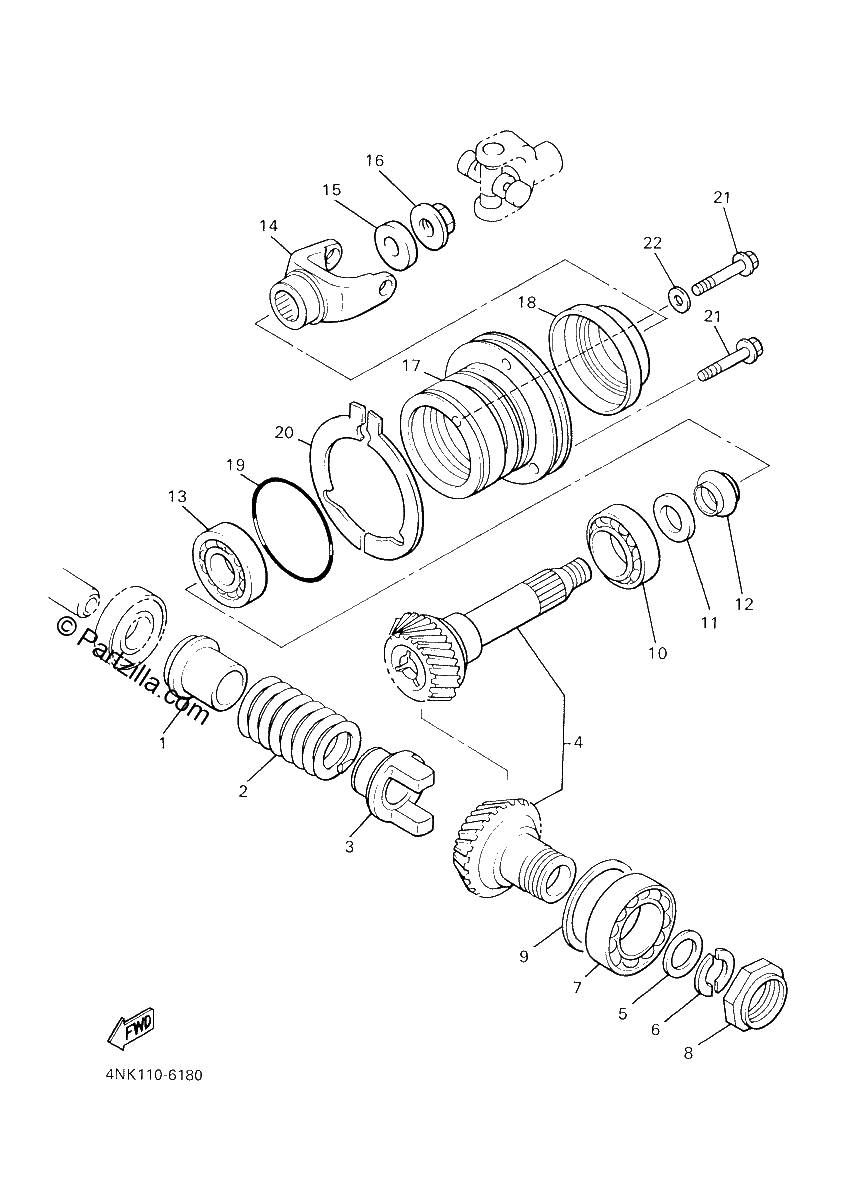

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
2WE-17524-00-00
HOLDER
$24.99¢12 495
1
#2
90501-75638-00
SPRING, COMPRESSION
$33.49¢16 744
1
#3
2WE-17527-00-00
CAM, DRIVEN
$44.22¢22 109
1
#4
26H-W1751-02-00
MIDDLE GEAR COMP.
No Disponible
1
#5
90201-252K4-00
WASHER, PLATE
$25.71¢12 857
1
#6
90209-21281-00
WASHER
$22.93¢11 466
1
#7
93306-20901-00
BEARING
$99.37¢49 686
1
#8
90179-44328-00
NUT
$19.83¢9 913
1
#9
4X7-17531-00-50
SHIM, PINION (0.50T) | UR
$5.17¢2 588
1
#9
4X7-17531-00-40
SHIM, PINION (0.40T) | UR
$5.40¢2 702
1
#9
4X7-17531-00-30
SHIM, PINION (0.30T) | UR
$3.47¢1 737
1
#9
4X7-17531-00-15
SHIM, PINION (0.15T) | UR
$2.09¢1 047
1
#10
93332-00028-00
BEARING
$55.64¢27 819
1
#11
90201-25634-00
WASHER, PLATE
$10.38¢5 192
1
#12
2H7-17571-01-00
SPACER, EXPANSION
$34.95¢17 474
1
#13
93332-00024-00
BEARING
$59.56¢29 779
1
#14
26H-17556-00-00
YOKE, JOINT
$115.33¢57 667
1
#15
90201-166R6-00
WASHER, PLATE
$14.92¢7 458
1
#16
90179-16662-00
NUT
$29.55¢14 777
1
#17
26H-17551-00-00
HOUSING, BEARING
$108.17¢54 085
1
#18
93101-35085-00
OIL SEAL
$25.40¢12 702
1
#19
93210-71360-00
O-RING
$12.60¢6 302
1
#20
3UF-17531-50-00
SHIM, PINION (0.50T) | UR
$2.63¢1 317
1
#20
3UF-17531-40-00
SHIM, PINION (0.40T) | UR
$4.23¢2 116
1
#20
3UF-17531-30-00
SHIM, PINION (0.30T) | UR
$4.66¢2 329
1
#20
3UF-17531-20-00
SHIM, PINION (0.20T) | UR
$2.63¢1 317
1
#20
3UF-17531-10-00
SHIM, PINION (0.15T) | UR
$3.90¢1 949
1
#20
3UF-17531-00-00
SHIM, PINION (0.10T) | UR
$2.63¢1 317
1
#21
95817-08030-00
BOLT, FLANGE
$6.75¢3 375
1
#22
90201-08649-00
WASHER,PLATE (replaces 90201-08093-00)
$6.88¢3 439
1
