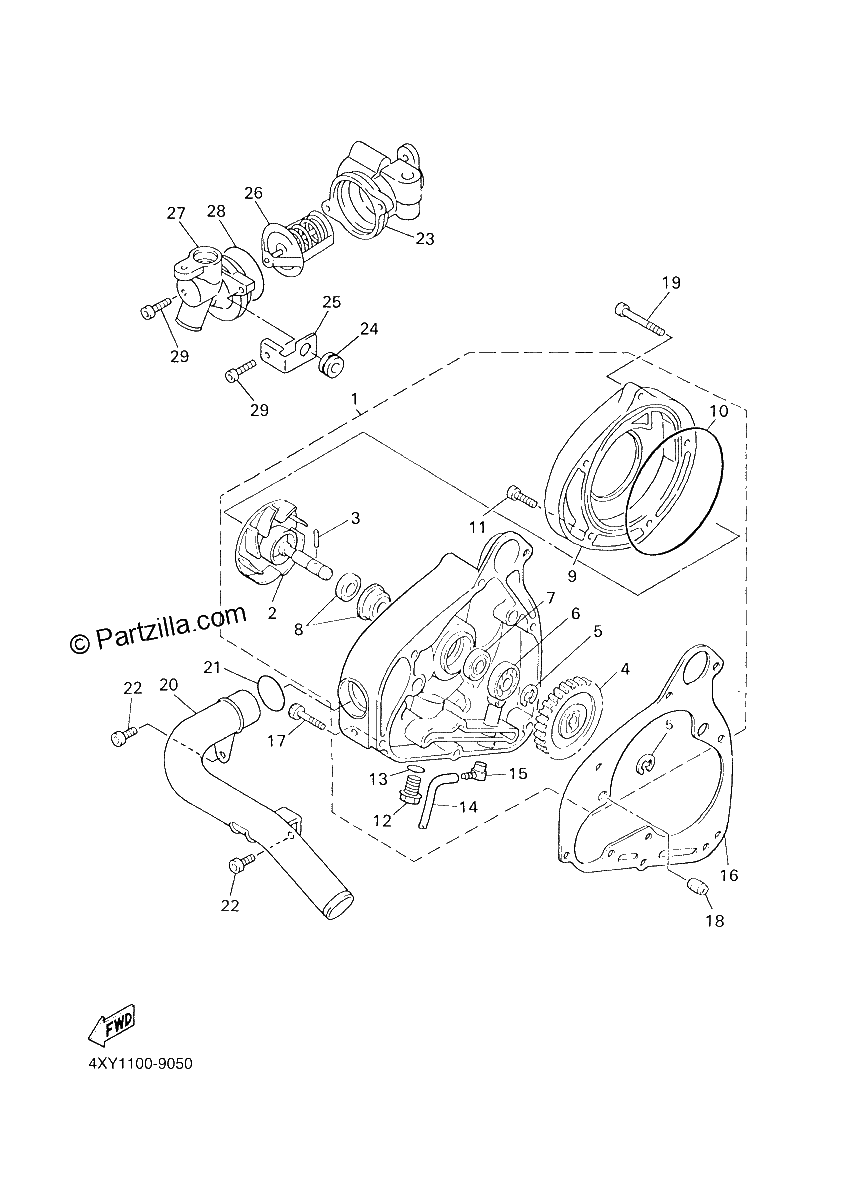

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WATER PUMP ASSY
$1145.84¢572 919
#2
IMPELLER SHAFT ASSY
$132.31¢66 154
#3
PIN, DOWEL
$7.04¢3 519
#4
GEAR, IMPELLER SHAFT (31T)
$48.54¢24 271
#5
CIRCLIP
$4.28¢2 139
#6
BEARING
$35.85¢17 923
#7
OIL SEAL
$6.75¢3 375
#8
SEAL, MECHANICAL
$57.33¢28 664
#9
COVER, HOUSING
$385.28¢192 642
#10
O-RING
$14.19¢7 095
#11
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#12
PLUG, STRAIGHT SCREW
$2.90¢1 449
#13
GASKET
$2.97¢1 483
#14
HOSE (L200)
$6.75¢3 375
#15
NOZZLE
$9.56¢4 778
#16
GASKET, WATER PUMP
$20.00¢9 999
#17
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
#18
PIN,DOWEL
$2.50¢1 248
#19
BOLT, HEXAGON SOCKET HEAD
$3.73¢1 863
#20
PIPE 3
$48.69¢24 346
#21
O-RING
$7.04¢3 519
#22
BOLT, HEXAGON SOCKET HEAD
$3.86¢1 932
#23
HOUSING, THERMOSTAT
$147.81¢73 905
#24
GROMMET
$7.30¢3 651
#25
BRACKET 1
$14.31¢7 153
#26
Thermostat Assy
$37.40¢18 699
#27
COVER, THERMOSTAT
$115.78¢57 891
#28
O-RING
$6.43¢3 214
#29
BOLT (4FL)
$2.39¢1 196
