REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

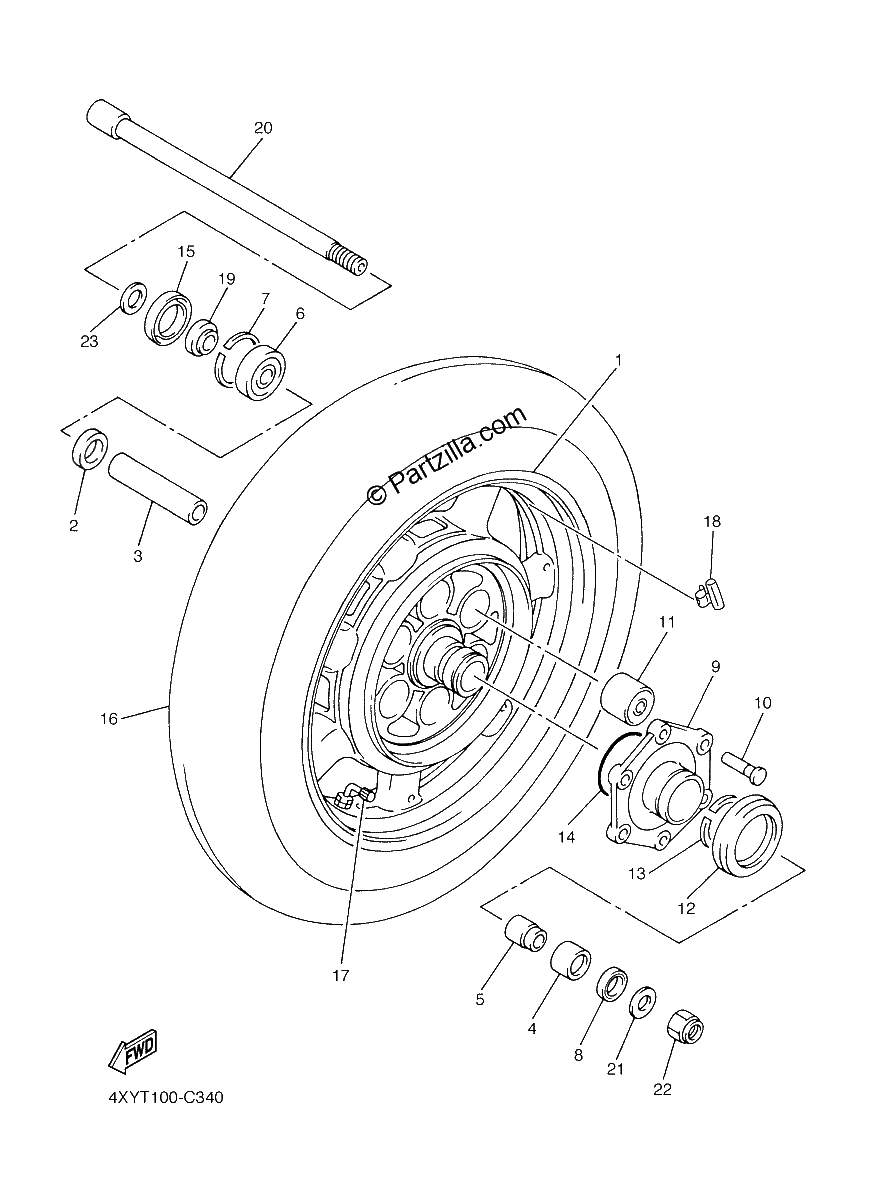

Diagrama de REAR WHEEL

Repuestos

#1
4NK-25338-01-33
CAST WHEEL, REAR | YB
$551.84¢275 920
1
#2
2H7-25315-00-00
FLANGE, SPACER
$7.89¢3 944
1
#3
90387-2008H-00
COLLAR
$26.99¢13 495
1
#4
93311-32698-00
BEARING
$72.28¢36 139
1
#5
90387-2007J-00
COLLAR
$34.79¢17 394
1
#6
93306-30437-00
BEARING
$62.58¢31 292
1
#7
99009-52500-00
CIRCLIP
$11.76¢5 882
1
#8
93102-25064-00
OIL SEAL
$12.21¢6 106
1
#9
26H-25366-01-00
CLUTCH, HUB
$210.48¢105 242
1
#10
90249-12167-00
PIN
$10.83¢5 416
1
#11
1FK-25364-00-00
DAMPER
$20.79¢10 396
1
#12
1J7-25319-02-00
SEAL, HUB DUST
$16.26¢8 131
1
#13
93440-45022-00
CIRCLIP
$10.96¢5 480
1
#14
93210-68347-00
O-RING
$8.03¢4 013
1
#15
93106-40027-00
OIL SEAL
$14.47¢7 233
1
#16
94115-15009-00
TIRE (150/90B15M/C 74H G702) | UR BRIDGESTONE
No Disponible
1
#17
93900-00025-00
VALVE, RIM (PVR59A) | TAIHEIYO
$17.95¢8 976
1
#18
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#18
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#18
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#19
90387-200J2-00
COLLAR
$27.73¢13 863
1
#20
4YE-25381-01-00
AXLE, WHEEL
$87.47¢43 735
1
#21
90201-181U5-00
WASHER, PLATE
$22.65¢11 327
1
#22
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#23
92903-20600-00
WASHER
$7.30¢3 651
1
