CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

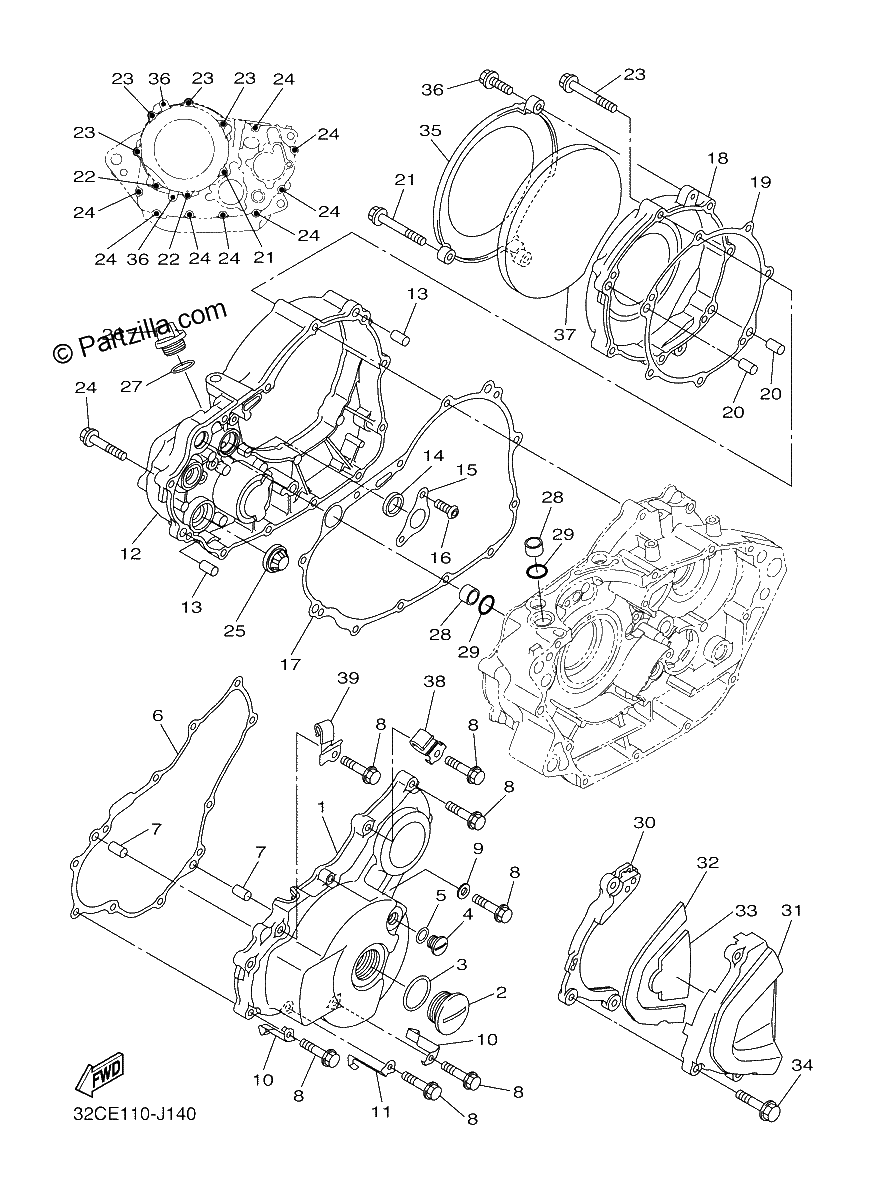

Diagrama de CRANKCASE COVER 1

Repuestos

#1
3D7-15411-00-00
COVER, CRANKCASE 1
$198.60¢99 300
1
#2
90340-32069-00
PLUG,STRAIGHT SCRW
$30.96¢15 481
1
#3
93210-32172-00
O-Ring
$6.88¢3 438
1
#4
90340-14068-00
PLUG, STRAIGHT SCREW
$18.74¢9 369
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
3D7-15451-00-00
GASKET, CRANKCASE COVER 1
$14.40¢7 200
1
#7
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#8
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
90462-08059-00
CLAMP
$5.15¢2 575
1
#11
90462-08060-00
CLAMP
$8.53¢4 263
1
#12
3D7-15431-00-00
COVER, CRANKCASE 3
$273.78¢136 888
1
#13
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#14
93101-14164-00
OIL SEAL
$11.55¢5 775
1
#15
3D7-15118-00-00
HOLDER
$3.49¢1 744
1
#16
90149-06083-00
SCREW
$7.65¢3 825
1
#17
3D7-15462-00-00
GASKET, CRANKCASE COVER 3
$23.89¢11 944
1
#18
3D7-15415-00-00
COVER,1
$87.46¢43 731
1
#19
3D7-15453-10-00
GASKET
$20.95¢10 475
1
#20
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#21
95022-06045-00
BOLT, FLANGE
$2.95¢1 475
1
#22
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
#23
90105-06144-00
BOLT, FLANGE
$2.50¢1 250
1
#24
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#25
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#26
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#27
93210-19123-00
O-Ring
$8.24¢4 119
1
#28
5NL-12564-00-00
PIPE, WATER
$6.29¢3 144
1
#29
93210-16716-00
O-RING
$1.70¢850
1
#30
3D7-15377-00-00
GUIDE
$45.80¢22 900
1
#31
3D7-15418-00-00
COVER, CHAIN CASE
$32.90¢16 450
1
#32
3D7-15335-00-00
DAMPER 3
$22.94¢11 469
1
#33
3D7-15337-00-00
DAMPER 4
$13.25¢6 625
1
#34
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#35
3D7-15423-00-00
COVER 2
$37.25¢18 625
1
#36
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#37
3D7-15326-00-00
DAMPER, 2
$6.04¢3 019
1
