CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

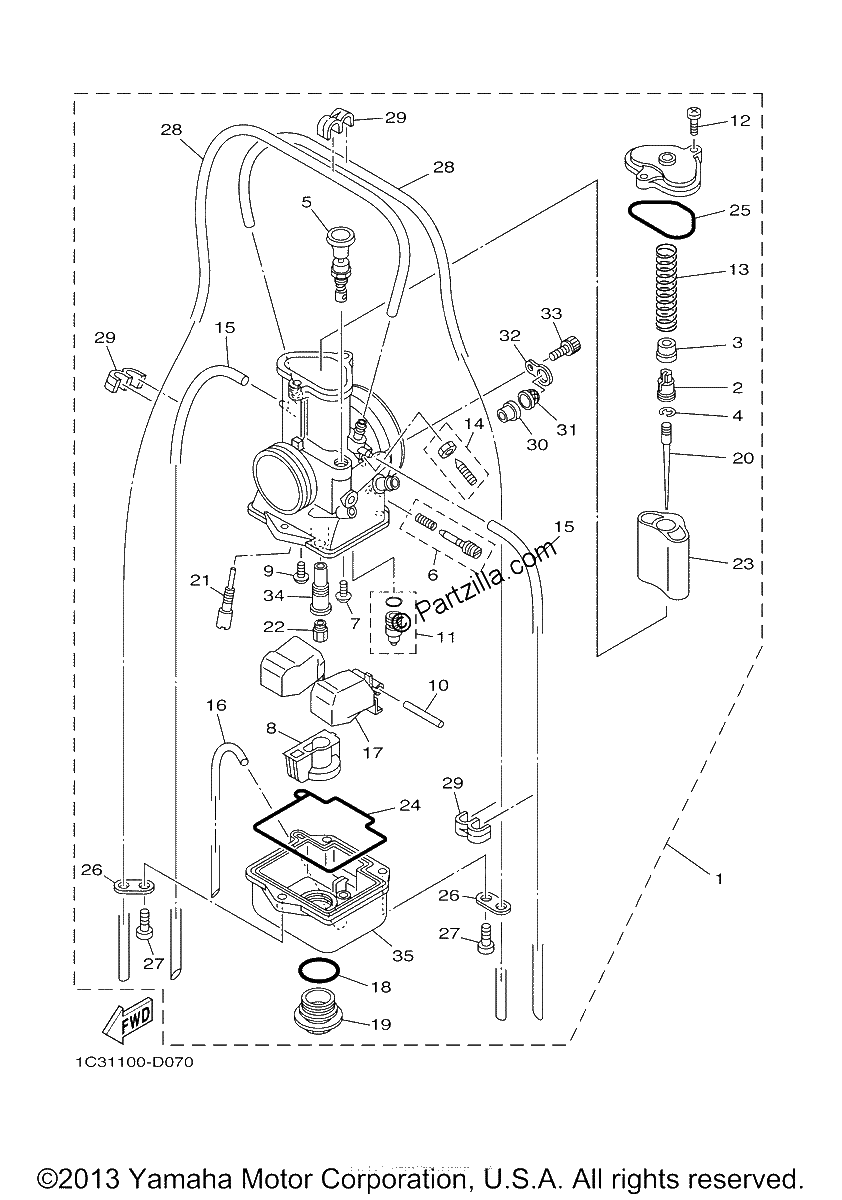

Diagrama de CARBURETOR

Repuestos

#0
284-14116-K5-00
NEEDLE (6BFY44-75) | AP
$30.38¢15 188
1
#0
284-14116-J2-00
NEEDLE (6BFY43-72) | AP
$29.74¢14 869
1
#0
4KM-14142-35-00
JET, PILOT (# 35) | AP
$9.63¢4 813
1
#0
4KM-14142-32-00
JET, PILOT (# 32.5) | AP
$10.15¢5 075
1
#0
4KM-14142-30-00
JET, PILOT (# 30) | AP
$8.97¢4 488
1
#0
137-14143-82-00
JET, MAIN (#410) | AP
$7.60¢3 800
1
#0
4KM-14142-42-00
JET, PILOT (# 42.5) | AP
$9.63¢4 813
1
#0
284-14116-K6-00
NEEDLE (6BFY44-76) | AP
$25.95¢12 975
1
#0
4KM-14142-47-00
JET, PILOT (# 47.5) | AP
$9.96¢4 981
1
#0
284-14116-K4-00
NEEDLE (6BFY44-74) | AP
$29.74¢14 869
1
#0
284-14116-K3-00
NEEDLE (6BFY44-73) | AP
$29.74¢14 869
1
#0
284-14116-J6-00
NEEDLE (6BFY43-76) | AP
$29.74¢14 869
1
#0
284-14116-J5-00
NEEDLE (6BFY43-75) | AP
$29.74¢14 869
1
#0
284-14116-J4-00
NEEDLE (6BFY43-74) | STD
$29.74¢14 869
1
#0
4KM-14142-40-00
JET, PILOT (# 40) | STD
$9.63¢4 813
1
#0
284-14116-J3-00
NEEDLE (6BFY43-73) | AP
$29.74¢14 869
1
#0
284-14116-H6-00
NEEDLE (6BFY42-76) | AP
$29.71¢14 856
1
#0
284-14116-H5-00
NEEDLE (6BFY42-75) | AP
$29.74¢14 869
1
#0
137-14143-84-00
JET, MAIN (#420) | AP
$7.60¢3 800
1
#0
137-14143-86-00
JET, MAIN (#430) | STD
$7.60¢3 800
1
#0
137-14143-88-00
JET, MAIN (#440) | AP
$7.86¢3 931
1
#0
137-14143-90-00
JET, MAIN (#450) | AP
$7.08¢3 538
1
#0
137-14143-92-00
JET, MAIN (#460) | AP
$7.08¢3 538
1
#0
137-14143-94-00
JET, MAIN (#470) | AP
$7.86¢3 931
1
#0
4KM-14142-50-00
JET, PILOT (# 50) | AP
$8.97¢4 488
1
#0
1C3-14112-42-00
VALVE, THROTTLE 1 (4.25) | AP
$241.40¢120 700
1
#0
284-14116-H2-00
NEEDLE (6BFY42-72) | AP
$25.40¢12 700
1
#0
284-14116-H3-00
NEEDLE (6BFY42-73) | AP
$29.74¢14 869
1
#0
284-14116-H4-00
NEEDLE (6BFY42-74) | AP
$29.74¢14 869
1
#0
4KM-14142-37-00
JET, PILOT (# 37.5) | AP
$9.63¢4 813
1
#1
1C3-14101-30-00
CARBURETOR ASSY 1
$801.24¢400 619
1
#2
5HD-14261-00-00
HOLDER
$25.53¢12 763
1
#3
4PE-14194-00-00
RING
$11.34¢5 669
1
#4
3MA-14159-00-00
CLIP
$7.28¢3 638
1
#5
3JE-14171-00-00
PLUNGER, STARTER
$83.26¢41 631
1
#6
5UN-14104-00-00
AIR SCREW SET
$10.49¢5 244
1
#7
1FN-14565-00-00
SCREW
$7.65¢3 825
1
#8
5ET-14261-01-00
HOLDER
$16.19¢8 094
1
#9
98507-04008-00
SCREW, PAN HEAD | UR (#2) FRONT
$1.72¢862
1
#10
353-14186-00-00
PIN, FLOAT
$8.03¢4 013
1
#11
4PE-14107-38-00
NEEDLE VALVE SET
$44.44¢22 219
1
#12
98507-04014-00
SCREW, PAN HEAD
$1.57¢788
1
#13
4PE-14131-00-00
SPRING, THROTTLE VALVE
$17.01¢8 506
1
#14
4PE-14103-00-00
THROTTLE SCREW SET
$21.60¢10 800
1
#15
5ET-14197-00-00
PIPE
$17.96¢8 981
1
#16
3XV-14348-20-00
PIPE
$20.63¢10 313
1
#17
5ET-14185-00-00
FLOAT
$86.05¢43 025
1
#18
2K6-14147-00-00
O-RING
$13.36¢6 681
1
#19
5ET-14115-00-00
PLUG, SCREW
$43.83¢21 913
1
#20
284-14116-K2-00
NEEDLE (6BFY44-72) | AP
$29.74¢14 869
1
#21
4KM-14142-45-00
JET, PILOT (# 45) | AP
$9.63¢4 813
1
#22
137-14143-80-00
JET, MAIN (#400) | AP
$7.60¢3 800
1
#23
1C3-14112-40-00
VALVE, THROTTLE 1 (4.0) | STD
$362.82¢181 413
1
#24
5ET-1416A-00-00
O-RING
$18.90¢9 450
1
#25
5ET-14147-00-00
O-RING
$11.36¢5 681
1
#26
51R-14146-00-00
PLATE
$8.03¢4 013
1
#27
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#28
2J2-14196-00-00
PIPE
$36.99¢18 494
1
#29
87M-14137-00-00
CLIP
$14.19¢7 094
1
#30
5MV-14194-00-00
RING
$12.94¢6 469
1
#31
5MV-24514-00-00
NET, FILTER 1
$14.75¢7 375
1
#32
5MV-14146-00-00
PLATE
$10.72¢5 363
1
#33
5MV-14216-00-00
SCREW
$6.39¢3 194
1
#34
5MV-14261-00-00
HOLDER
$19.09¢9 544
1
#35
5NY-14181-00-00
BODY, FLOAT CHAMBER 1
$134.97¢67 488
1
