CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

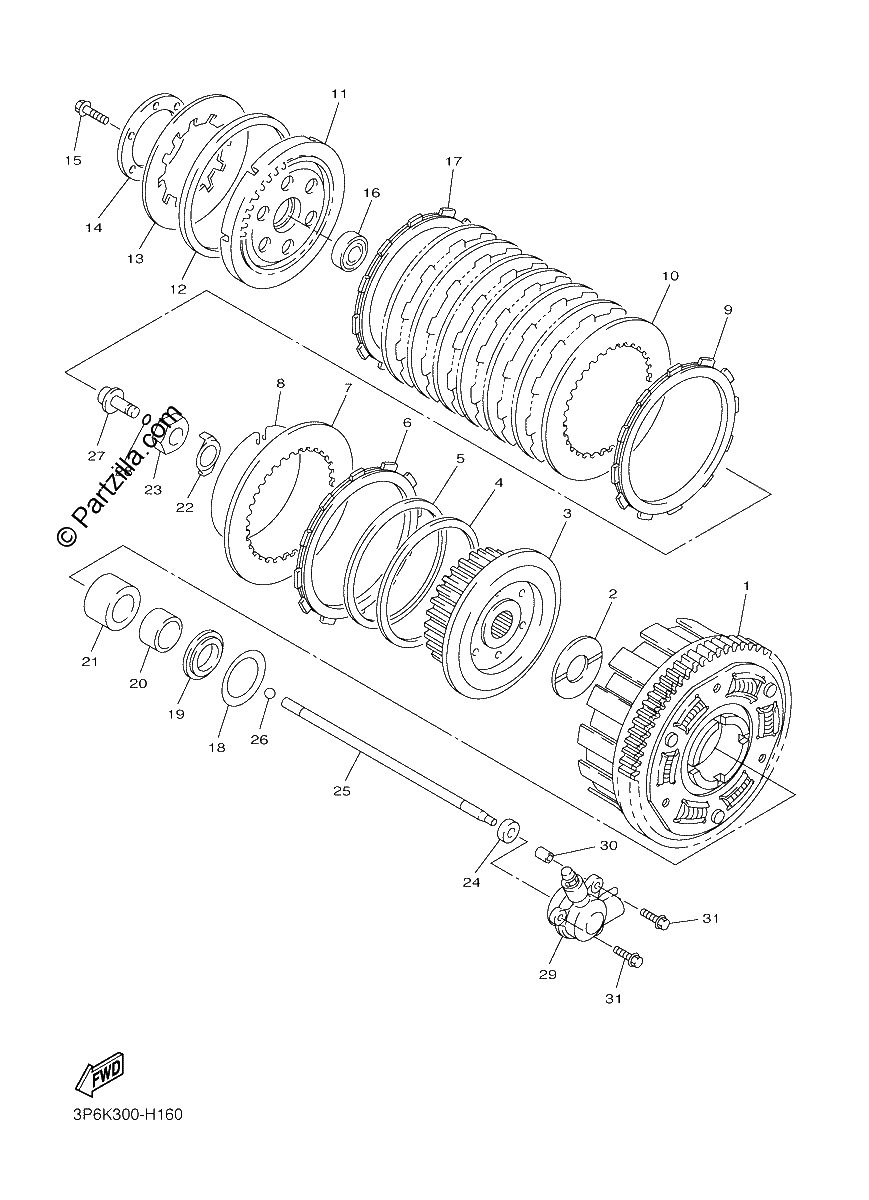

Diagrama de CLUTCH

Repuestos

#1
5JW-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$1058.14¢529 069
1
#2
5JW-16154-00-00
PLATE, THRUST 1
$31.46¢15 732
1
#3
3P6-16371-20-00
BOSS, CLUTCH
$144.38¢72 191
1
#4
36Y-16384-00-00
PLATE, SEAT
$24.91¢12 455
1
#5
36Y-16383-00-00
SPRING.,CUSHION
$63.84¢31 918
1
#6
4XV-16331-00-00
PLATE, FRICTION 2
$23.43¢11 713
1
#7
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#8
2H7-16385-00-00
RING SET
$24.07¢12 035
1
#9
5JW-16321-00-00
Plate, Friction
$28.88¢14 438
1
#10
2H7-16325-00-00
PLATE, CLUTCH 2
$12.45¢6 227
1
#11
4XV-16351-00-00
PLATE, PRESSURE 1
$98.96¢49 479
1
#12
36Y-16335-00-00
HOUSING, SPRING
$34.79¢17 394
1
#13
5JW-16334-00-00
SPRING, CLUTCH 2
$87.00¢43 499
1
#14
1TX-16352-00-00
PLATE, PRESSURE 2
$36.80¢18 400
1
#15
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#16
93306-00304-00
BEARING
$30.60¢15 301
1
#17
341-16321-13-00
PLATE, FRICTION
$21.44¢10 718
1
#18
3P6-16587-00-00
SPRING, ABSORBER
$31.62¢15 812
1
#19
3P6-16183-00-00
SPACER 3
$43.98¢21 988
1
#20
90387-28002-00
COLLAR
$28.28¢14 139
1
#21
5JW-16181-00-00
SPACER 1
$78.48¢39 238
1
#22
90215-25218-00
WASHER, LOCK
$8.83¢4 416
1
#23
90170-20323-00
NUT
$21.34¢10 672
1
#24
93109-08061-00
OIL SEAL
$6.22¢3 111
1
#25
3P6-16357-00-00
ROD, PUSH 2
$43.68¢21 838
1
#26
93511-32017-00
BALL
$6.75¢3 375
1
#27
4KG-16356-00-00
ROD,PUSH 1
$28.99¢14 496
1
#28
93210-06422-00
O-Ring
$7.30¢3 651
1
#29
5JW-16381-00-00
PUSH LEVER COMP.
$261.76¢130 881
1
#30
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#31
95024-06025-00
Bolt, Flange
$2.82¢1 409
1
