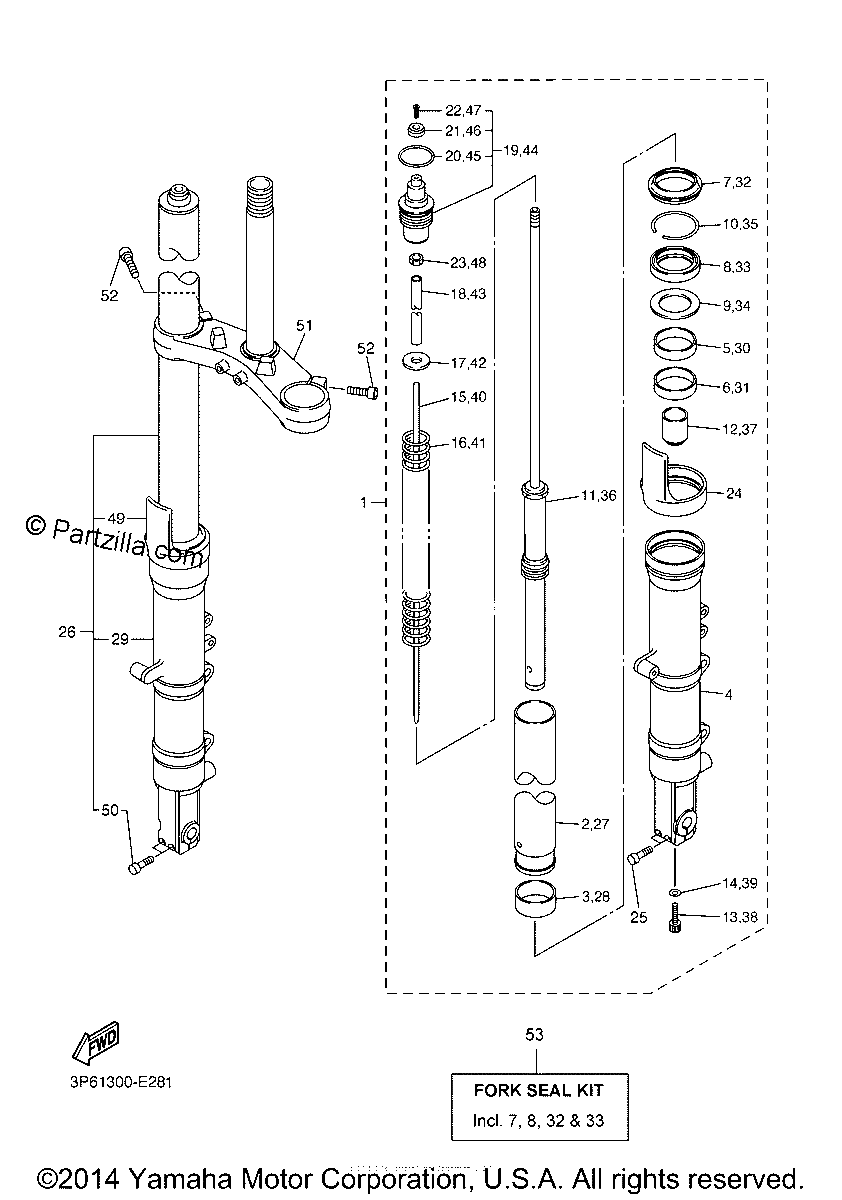

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1332.88¢666 442
#2
INNER TUBE COMP. 1
No Disponible
#3
METAL, SLIDE 2
$19.26¢9 631
#4
OUTER TUBE COMP.
$414.03¢207 017
#5
METAL, SLIDE 1
$19.08¢9 539
#6
METAL, SLIDE 2
$19.72¢9 861
#7
SEAL, DUST
$15.65¢7 826
#8
OIL SEAL
$18.35¢9 177
#9
SEAT 1
$7.38¢3 691
#10
RING, SNAP
$7.08¢3 542
#11
CYLINDER COMP, FRONT FORK
$509.86¢254 932
#12
SPINDLE, TAPER
$60.69¢30 343
#13
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
#14
GASKET
$3.59¢1 794
#15
PLUNGER
$4.51¢2 254
#16
SPRING, FRONT FORK
$74.24¢37 122
#17
WASHER, PLATE
$5.93¢2 967
#18
SPACER
$10.19¢5 094
#19
BOLT, CAP
$249.70¢124 850
#20
O-RING
$6.75¢3 375
#21
CAP
$10.55¢5 273
#22
SCREW, OVAL HEAD
$0.33¢167
#23
NUT (3BM) (replaces 95302-10600-00)
$1.89¢943
#24
COVER
$16.67¢8 337
#25
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
#26
FRONT FORK ASSY (R.H)
$959.09¢479 544
#27
INNER TUBE COMP. 1
No Disponible
#28
METAL, SLIDE 2
$19.26¢9 631
#29
OUTER TUBE COMP. (R.H)
$752.40¢376 199
#30
METAL, SLIDE 1
$19.08¢9 539
#31
METAL, SLIDE 2
$19.72¢9 861
#32
SEAL, DUST
$15.65¢7 826
#33
OIL SEAL
$18.35¢9 177
#34
SEAT 1
$7.38¢3 691
#35
RING, SNAP
$7.08¢3 542
#36
CYLINDER COMP, FRONT FORK
$509.86¢254 932
#37
SPINDLE, TAPER
$60.69¢30 343
#38
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
#39
FORK SEAL KIT
$33.05¢16 525
#39
GASKET
$3.59¢1 794
#40
PLUNGER
$4.51¢2 254
#41
SPRING, FRONT FORK
$74.24¢37 122
#42
WASHER, PLATE
$5.93¢2 967
#43
SPACER
$10.19¢5 094
#44
BOLT, CAP
$249.70¢124 850
#45
O-RING
$6.75¢3 375
#46
CAP
$10.55¢5 273
#47
SCREW, OVAL HEAD
$0.33¢167
#48
NUT (3BM) (replaces 95302-10600-00)
$1.89¢943
#49
COVER
$16.67¢8 337
#50
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
#51
UNDER BRACKET COMP.
$505.77¢252 885
#52
BOLT
$6.83¢3 415
