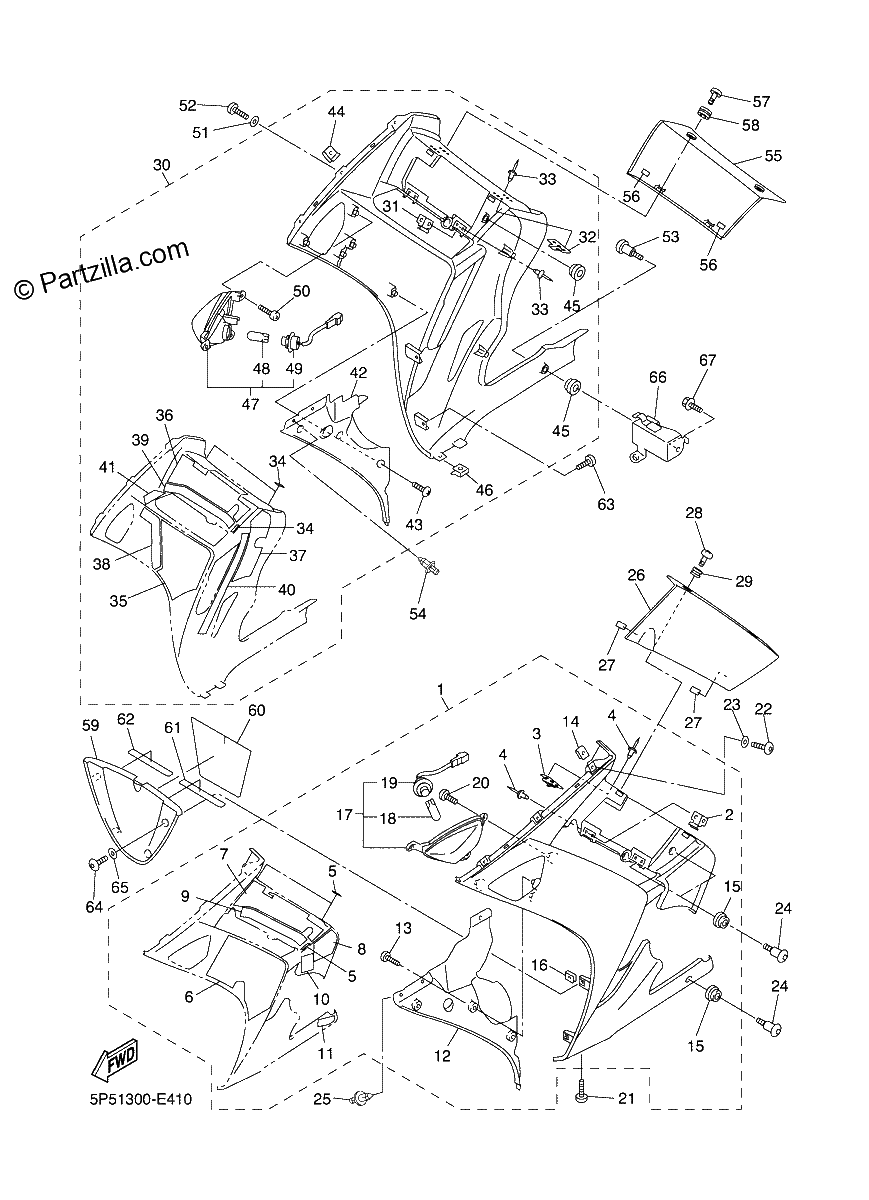

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, FRONT LOWER 1 | Use for Color SILVER 3 ( S3 / 0791 )
$749.79¢374 894
#2
HINGE
$10.72¢5 359
#3
PLATE, SPRING
$6.64¢3 318
#4
RIVET, BLIND
$3.48¢1 742
#5
SEAL
$3.43¢1 713
#6
DAMPER 1
No Disponible
#7
DAMPER 2
$6.57¢3 283
#8
DAMPER 4
$1.89¢943
#9
DAMPER 3
$2.91¢1 455
#10
DAMPER 5
No Disponible
#11
DAMPER 5
$3.29¢1 644
#12
PANEL, INNER 1
$59.78¢29 888
#13
TAPPING SCREW
$2.17¢1 087
#14
NUT, SPRING
$2.92¢1 461
#15
GROMMET
$7.51¢3 755
#16
NUT, SPRING
$2.92¢1 461
#17
FRONT FLASHER LIGHT ASSY 1
$102.49¢51 244
#18
BULB, FLASHER (12V-21/5W)
$10.82¢5 411
#19
SOCKET CORD ASSY
$27.54¢13 771
#20
TAPPING SCREW
$2.17¢1 087
#21
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#22
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#23
WASHER, PLATE
$7.05¢3 525
#24
BOLT
$6.46¢3 231
#25
RIVET
$8.10¢4 048
#26
VISOR, SIDE 1 | Use for Color SILVER 3 ( S3 / 0791 )
$125.79¢62 893
#27
DAMPER 1
$7.08¢3 542
#28
HEAD
$16.45¢8 223
#29
GROMMET
$3.02¢1 512
#30
BODY, FRONT LOWER 2 | Use for Color SILVER 3 ( S3 / 0791 )
$671.59¢335 794
#31
HINGE
$10.72¢5 359
#32
PLATE, SPRING
$6.64¢3 318
#33
RIVET, BLIND
$3.48¢1 742
#34
SEAL
$3.43¢1 713
#35
DAMPER 3
$7.45¢3 726
#36
DAMPER 2
$6.57¢3 283
#37
DAMPER, 4
$4.43¢2 214
#38
DAMPER
$4.19¢2 093
#39
DAMPER
$3.82¢1 909
#40
DAMPER 6
$4.51¢2 254
#41
DAMPER 8
$1.55¢776
#42
PANEL, INNER 2
$59.78¢29 888
#43
TAPPING SCREW
$2.17¢1 087
#44
NUT, SPRING
$2.92¢1 461
#45
GROMMET
$7.51¢3 755
#46
NUT, SPRING
$2.92¢1 461
#47
FRONT FLASHER LIGHT ASSY 2
$116.43¢58 213
#48
BULB, FLASHER (12V-21/5W)
$10.82¢5 411
#49
SOCKET ASSY
$18.66¢9 332
#50
TAPPING SCREW
$2.17¢1 087
#51
WASHER, PLATE
$7.05¢3 525
#52
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#53
BOLT
$6.46¢3 231
#54
RIVET
$8.10¢4 048
#55
VISOR, SIDE 2 | Use for Color SILVER 3 ( S3 / 0791 )
$127.01¢63 503
#56
DAMPER 1
$7.08¢3 542
#57
HEAD
$16.45¢8 223
#58
GROMMET
$3.02¢1 512
#59
COVER, UNDER (SILVER 3) *{S3}*
$208.24¢104 121
#60
SEAT
$11.59¢5 796
#61
SEAT 2
$2.54¢1 271
#62
SEAT 3
$2.54¢1 271
#63
TAPPING SCREW
$2.17¢1 087
#64
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#65
WASHER, PLATE
$7.05¢3 525
#66
BRACKET 3
$39.40¢19 699
#67
Bolt, Flange
$1.64¢822
