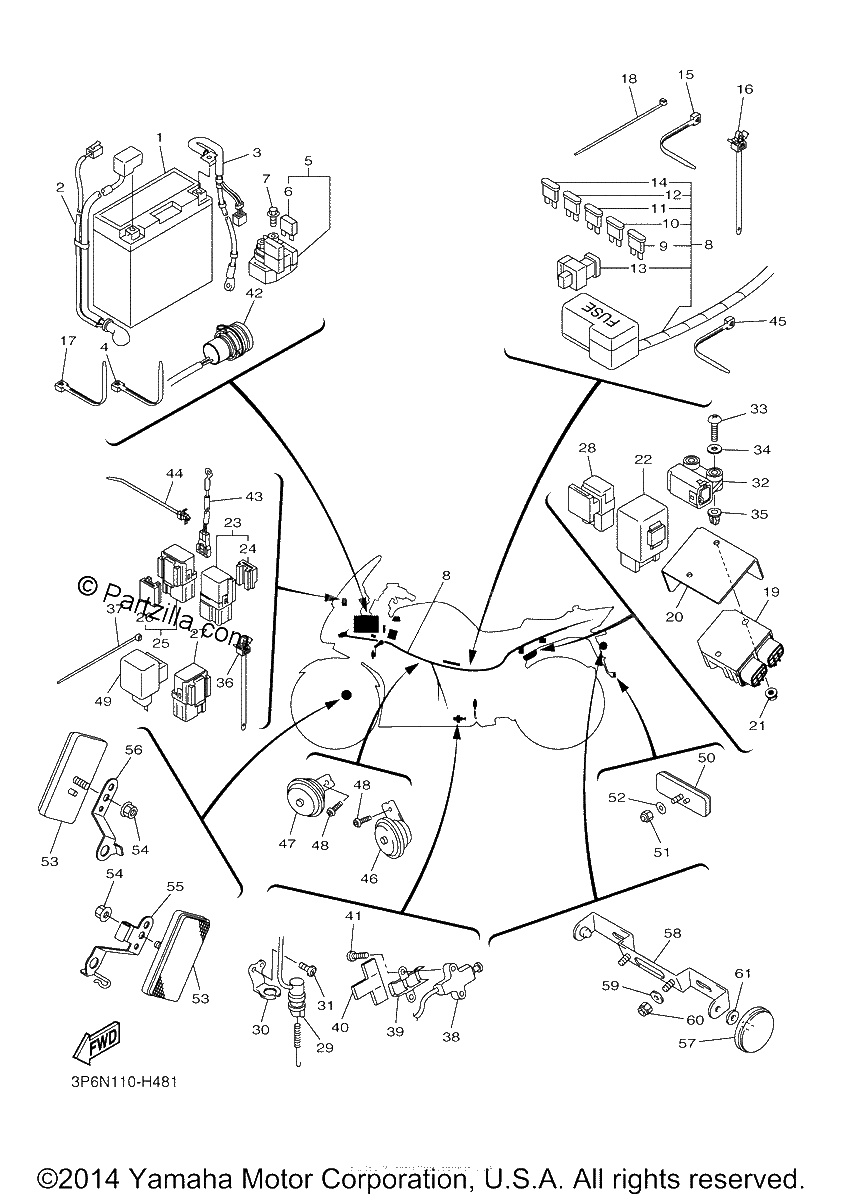

Diagrama de ELECTRICAL 2

Repuestos

#1
GT1-4B400-00-00
GT14B4 GS BATTERY -
$160.62¢80 310
1
#2
3P6-82115-00-00
WIRE, PLUS LEAD
No Disponible
1
#3
3P6-82116-10-00
WIRE, MINUS LEAD
$36.73¢18 366
1
#4
1UA-82591-00-00
BAND
$4.52¢2 260
1
#5
3P6-81940-00-00
STARTER RELAY ASSY (RC19-085A)
$148.37¢74 187
1
#6
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#7
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#8
1CY-82590-10-00
WIRE HARNESS ASSY
$793.49¢396 744
1
#9
67F-82151-30-00
FUSE (3A)
$5.51¢2 754
1
#10
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#11
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#12
5JJ-82151-70-00
FUSE (25A-BL)
$6.51¢3 254
1
#13
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#14
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#15
90465-10098-00
CLAMP
$2.55¢1 277
1
#16
90464-10112-00
CLAMP
$6.76¢3 381
1
#17
90464-15152-00
CLAMP
$4.77¢2 386
1
#18
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
#19
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$308.43¢154 215
1
#20
3P6-81975-00-00
PLATE, RECTIFIER FITTING
$29.29¢14 645
1
#21
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#22
5VK-81950-30-00
RELAY ASSY (5VK-30)
$58.82¢29 411
1
#23
5EA-81950-20-00
RELAY ASSY (5EA-02)
$54.81¢27 404
1
#24
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#25
5EA-81950-20-00
RELAY ASSY (5EA-02)
$54.81¢27 404
1
#26
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#27
5JJ-81950-10-00
RELAY ASSY (G8HN-1C4T-DJ-Y51)
$27.11¢13 553
1
#28
5DM-81950-00-00
RELAY ASSY (G8HN-1C4T-DJ-Y52)
$27.11¢13 553
1
#29
3P6-82530-00-00
STOP SWITCH ASSY
$51.49¢25 743
1
#30
5JW-2144G-00-00
STAY, STOP SWITCH
$9.27¢4 635
1
#31
98902-05008-00
SCREW, BIND
$1.35¢673
1
#32
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#33
97702-40025-00
SCREW, TAPPING
$0.28¢138
1
#34
90201-04030-00
WASHER, PLATE
$1.66¢828
1
#35
4B4-84334-00-00
NUT, ADJUSTING
$4.57¢2 283
1
#36
90464-10112-00
CLAMP
$6.76¢3 381
1
#37
1UA-82591-00-00
BAND
$4.52¢2 260
1
#38
5PX-82566-51-00
SWITCH, SIDE STAND
$106.18¢53 090
1
#39
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#39
3P6-82388-00-00
PLATE
$6.46¢3 231
1
#40
3P6-82176-10-00
DAMPER
$3.71¢1 857
1
#41
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#42
3P6-8254B-00-00
TERMINAL COMP.
$87.30¢43 648
1
#43
5RU-85700-00-00
THERMISTOR ASSY
$70.83¢35 414
1
#44
90464-24001-00
CLAMP
$0.74¢368
1
#45
90465-10098-00
CLAMP
$2.55¢1 277
1
#46
5PS-83371-00-00
HORN
$61.80¢30 900
1
#47
3P6-83371-00-00
HORN
$47.63¢23 816
1
#48
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#49
3GM-83350-01-00
FLASHER RELAY ASSY
$86.93¢43 464
1
#50
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#51
95617-05100-00
NUT, U
$7.30¢3 651
1
#52
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#54
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#55
3P6-85112-10-00
BRACKET, REFLECTOR 1
$53.35¢26 674
1
#56
3P6-85122-00-00
BRACKET, REFLECTOR 2
$14.31¢7 153
1
#57
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#58
5JW-84751-00-00
BRACKET, LICENSE
$89.56¢44 781
1
#59
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#60
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#61
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
