FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

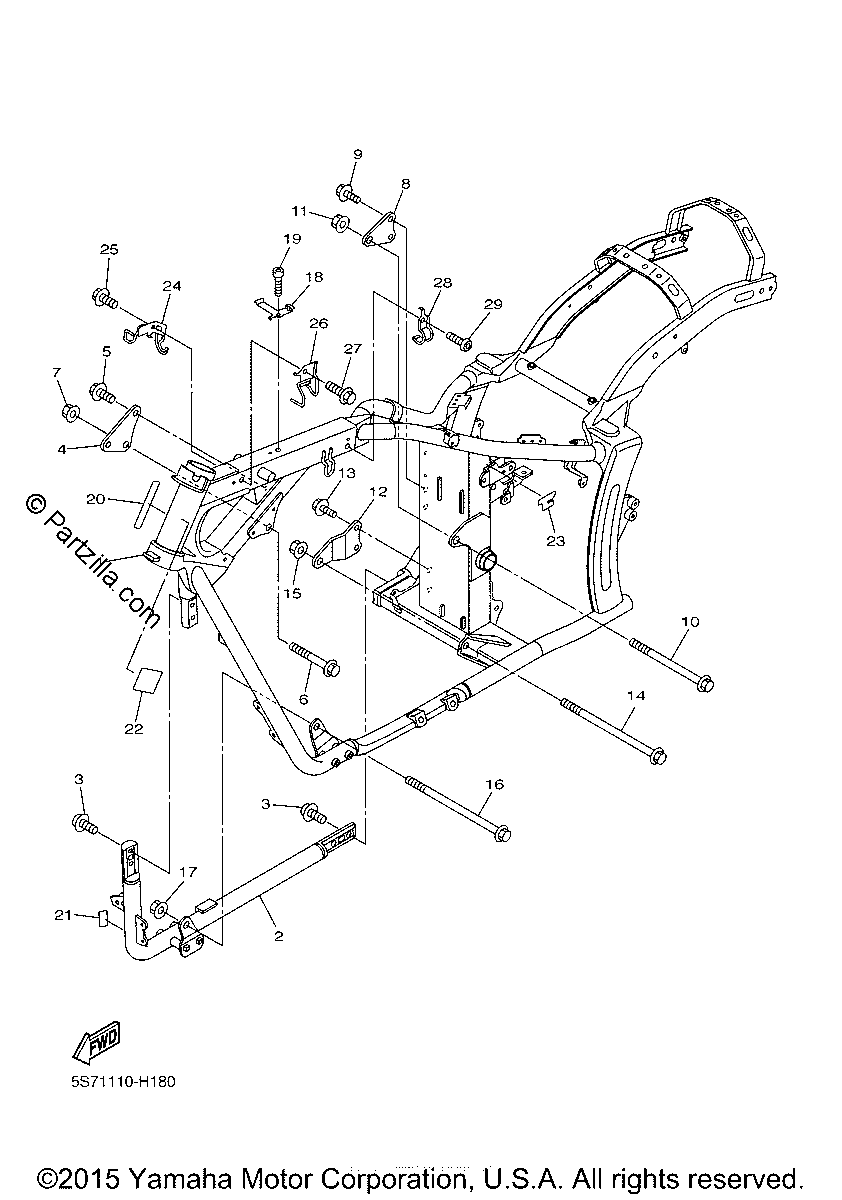

Diagrama de FRAME

Repuestos

#1
99999-03967-00
FRAME COMP.
$2732.39¢1 366 194
1
#2
5S7-21280-01-00
DOWNTUBE COMP.
$479.79¢239 896
1
#3
90110-10017-00
BOLT, HEXAGON SOCKET
$5.96¢2 978
1
#4
5S7-21317-00-00
STAY, ENGINE 3
$26.76¢13 380
1
#5
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#6
90105-12252-00
BOLT, FLANGE
$11.06¢5 531
1
#7
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#8
5S7-21314-00-00
STAY, ENGINE 5
$21.57¢10 787
1
#9
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#10
90105-12043-00
BOLT, FLANGE
$14.44¢7 222
1
#11
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#12
5S7-21316-00-00
STAY, ENGINE 2
$27.19¢13 593
1
#13
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#14
90105-12044-00
BOLT, FLANGE
$21.69¢10 844
1
#15
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#16
90105-12069-00
BOLT, FLANGE
$25.53¢12 765
1
#17
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#18
5S7-21158-00-00
BRACKET
$8.69¢4 347
1
#19
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#20
3D8-2117G-00-00
PROTECTOR
$6.12¢3 059
1
#21
5PX-21268-00-00
SEAL
$7.06¢3 530
1
#22
1D7-2639G-00-00
SEAL
$6.22¢3 111
1
#23
5S7-21732-00-00
SEAL 1
$6.03¢3 013
1
#24
5S7-26279-00-00
GUIDE, CABLE
$33.90¢16 951
1
#25
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#26
5S7-26475-00-00
HOLDER
$23.20¢11 598
1
#27
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#28
90462-16005-00
CLAMP
$5.54¢2 772
1
#29
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
