MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

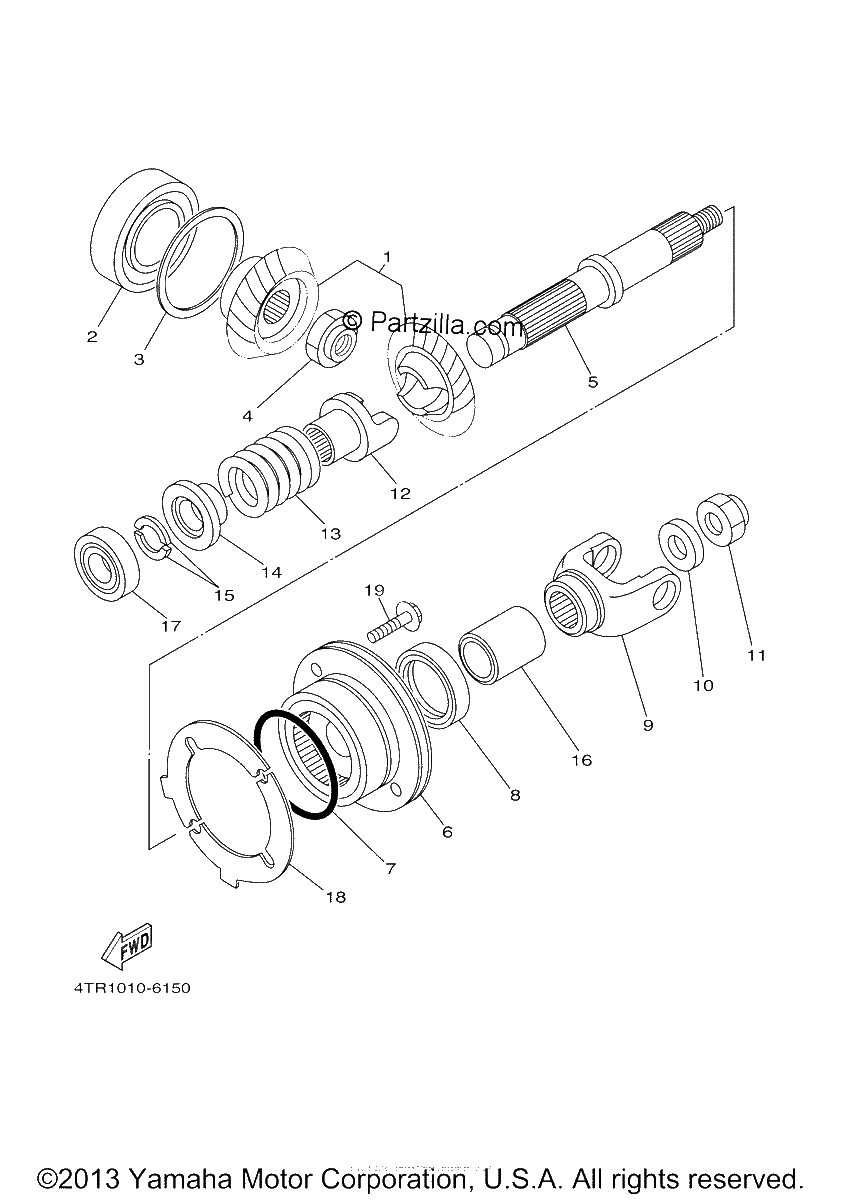

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#0
4H7-17537-00-30
SHIM, THRUST (0.30T) | UR
No Disponible
1
#0
4H7-17537-00-40
SHIM, THRUST (0.40T) | UR
No Disponible
1
#0
3JB-17531-00-00
SHIM, PINION (0.10T) | UR
$15.95¢7 975
1
#0
3JB-17531-20-00
SHIM, PINION (0.20T) | UR
$5.84¢2 919
1
#0
3JB-17531-30-00
SHIM, PINION (0.30T) | UR
$7.67¢3 838
1
#0
3JB-17531-40-00
SHIM, PINION (0.40T) | UR
$10.19¢5 094
1
#0
3JB-17531-50-00
SHIM, PINION (0.50T) | UR
$9.22¢4 613
1
#1
4VR-Y1754-00-00
MIDDLE GEAR COMP.
$273.50¢136 750
1
#2
93306-20711-00
BEARING
$47.94¢23 969
1
#3
4H7-17537-00-20
SHIM, THRUST (0.20T) | UR
$6.06¢3 031
1
#4
90179-18396-00
NUT
$17.54¢8 769
1
#5
4VR-17553-00-00
SHAFT, MIDDLE DRIVEN
$160.07¢80 038
1
#6
4VR-W1752-00-00
HOUSHING COMP.
$175.21¢87 606
1
#7
93210-71360-00
O-RING
$13.70¢6 850
1
#8
93101-35097-00
OIL SEAL
$21.20¢10 600
1
#9
22U-17556-00-00
YOKE, JOINT
$93.56¢46 781
1
#10
90201-14633-00
WASHER, PLATE
$6.26¢3 131
1
#11
90185-14070-00
NUT, SELF-LOCKING
$12.45¢6 225
1
#12
4VR-17527-00-00
CAM, DRIVEN
$85.84¢42 919
1
#13
90501-60716-00
SPRING, COMPRESSION
$20.56¢10 281
1
#14
22U-17524-00-00
HOLDER
$17.99¢8 994
1
#15
3H5-17529-00-00
WASHER, THRUST
$5.84¢2 919
1
#16
90387-2511R-00
COLLAR
$33.63¢16 813
1
#17
93306-00426-00
BEARING
$43.60¢21 800
1
#18
3JB-17531-10-00
SHIM, PINION (0.15T) | UR
$9.78¢4 888
1
#19
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
1
