FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

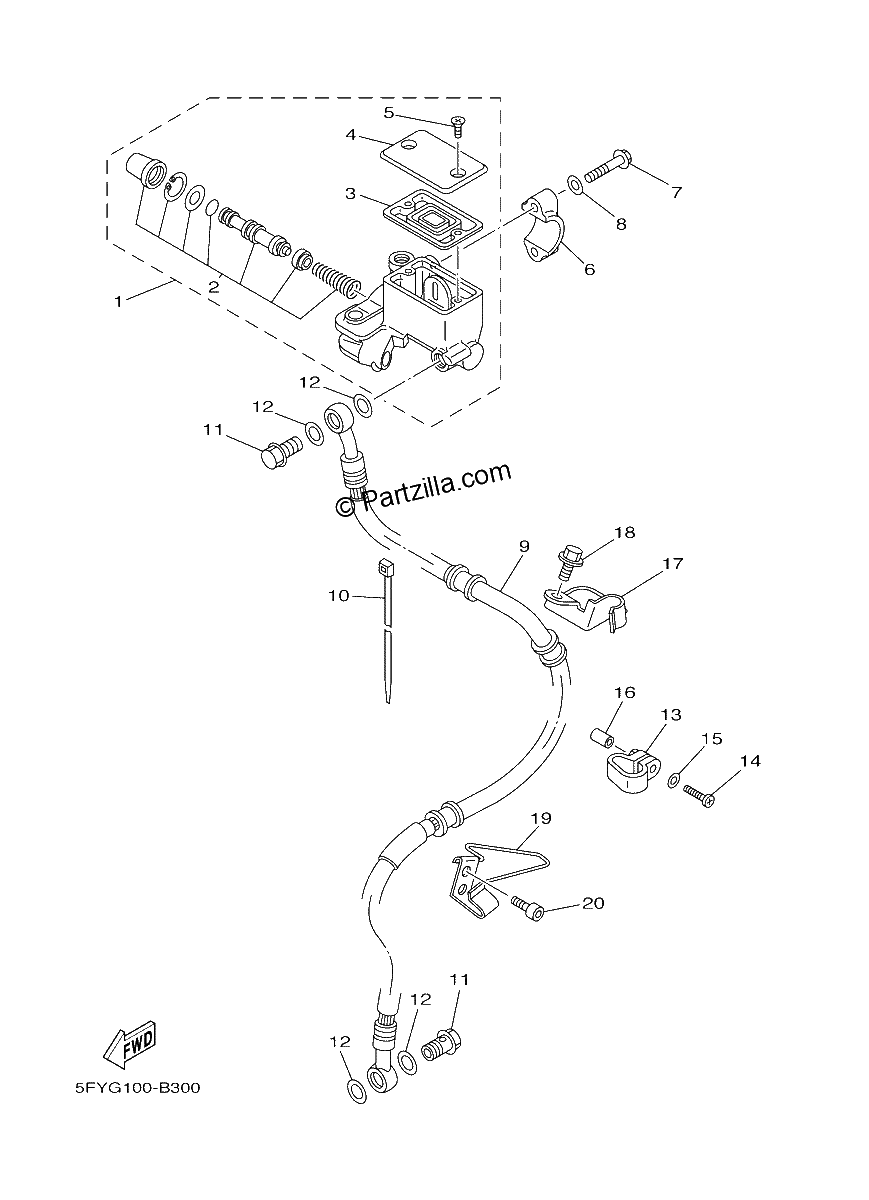

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
5RS-25870-01-00
MASTER CYLINDER SUB ASSY
$149.02¢74 509
1
#2
5CG-W0041-00-00
CYLINDER KIT, MASTER
$41.20¢20 602
1
#3
5RB-25854-00-00
DIAPHRAGM, RESERVOIR
$5.65¢2 823
1
#4
4GY-25852-01-00
CAP, RESERVOIR
$41.37¢20 683
1
#5
36Y-2589H-00-00
. SCREW
$1.58¢788
1
#6
3RW-25867-00-00
BRACKET, MASTER CYLINDER
$27.01¢13 507
1
#7
97007-06025-00
BOLT
$3.27¢1 633
1
#8
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#9
5RS-25872-00-00
HOSE, BRAKE 1
$106.18¢53 090
1
#10
1UA-82591-00-00
BAND
$4.52¢2 260
1
#11
90401-10159-00
BOLT, UNION
$9.69¢4 847
1
#12
90201-10118-00
WASHER, PLATE
$3.16¢1 581
1
#13
3TB-23467-01-00
CLAMP
$5.91¢2 956
1
#14
98507-04018-00
SCREW, PAN HEAD
$1.35¢673
1
#15
92907-04600-00
WASHER
$1.35¢673
1
#16
90445-057G5-00
HOSE (L10)
$6.75¢3 375
1
#17
5RS-25886-00-00
HOLDER, BRAKE HOSE
$21.57¢10 787
1
#18
95807-06012-00
BOLT, FLANGE
$1.64¢822
1
#19
34X-25876-00-00
HOLDER, BRAKE HOSE 2
$17.22¢8 608
1
#20
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$7.58¢3 789
1
