CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

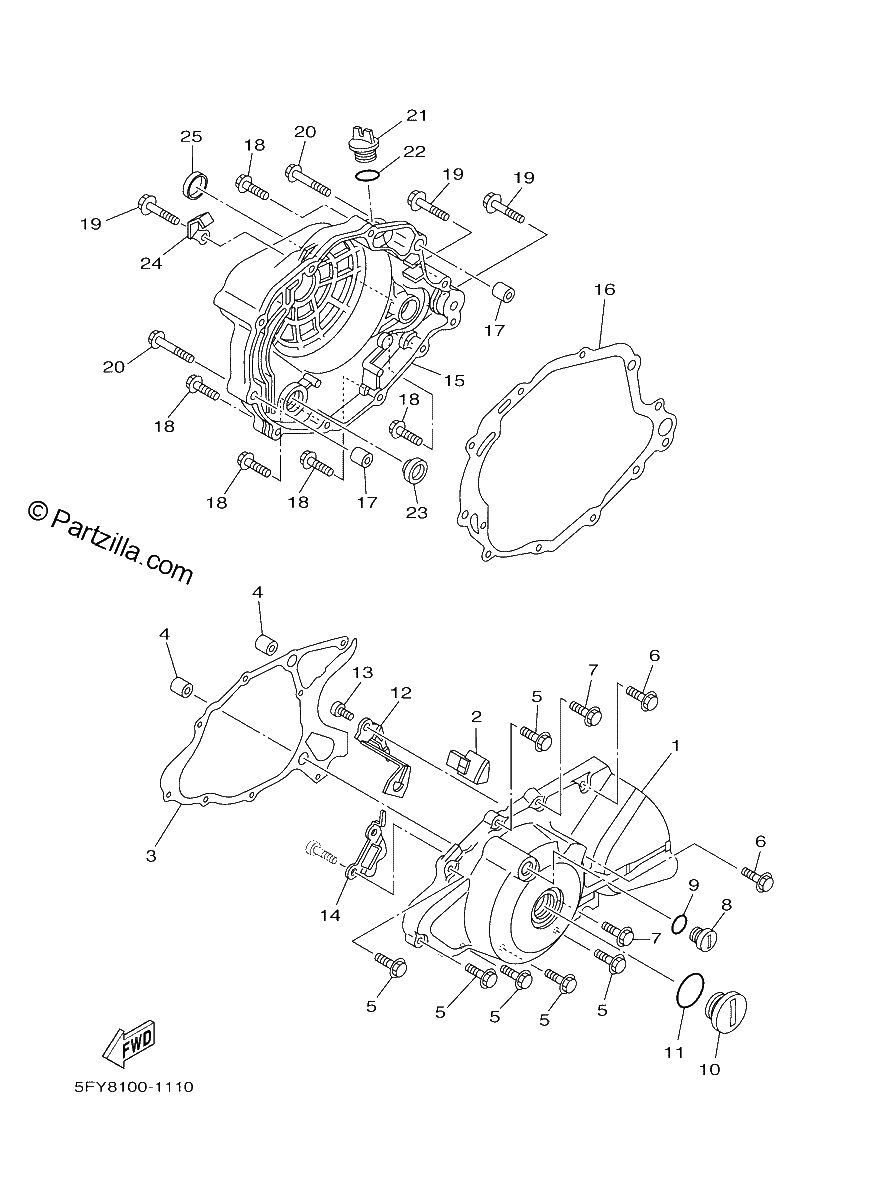

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5EK-15410-00-00
CRANKCASE COVER ASSY
$433.13¢216 563
1
#2
2JX-15377-00-00
GUIDE,INLET
$34.04¢17 019
1
#3
3AW-15451-03-00
GASKET,CRCS COVER
$19.27¢9 638
1
#4
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#5
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#6
90105-06017-00
BOLT, FLANGE
$3.77¢1 888
1
#7
90105-06014-00
BOLT, FLANGE
$2.20¢1 100
1
#8
90340-14117-00
PLUG, STRAIGHT SCREW
$13.83¢6 913
1
#9
93210-14369-00
O-Ring
$6.91¢3 456
1
#10
90340-32080-00
PLUG,STRAIGHT SCRW
$31.72¢15 862
1
#11
93210-32172-00
O-Ring
$6.88¢3 438
1
#12
90465-08364-00
Clamp
$25.84¢12 919
1
#13
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#14
90465-16187-00
CLAMP
No Disponible
1
#15
15A-15431-01-00
COVER, CRANKCASE 3
$194.81¢97 406
1
#16
4BE-15462-00-00
GASKET,CRCS CVR 3
$35.19¢17 594
1
#17
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#18
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#19
95027-06035-00
BOLT, SMALL FLANGE
$2.20¢1 100
1
#20
95027-06045-00
BOLT, SMALL FLANGE
$2.95¢1 475
1
#21
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#22
93210-19123-00
O-Ring
$8.24¢4 119
1
#23
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#24
90462-08225-00
CLAMP
$9.19¢4 594
1
#25
55X-15167-00-00
PLUG,BLIND 1
$12.48¢6 238
1
