TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

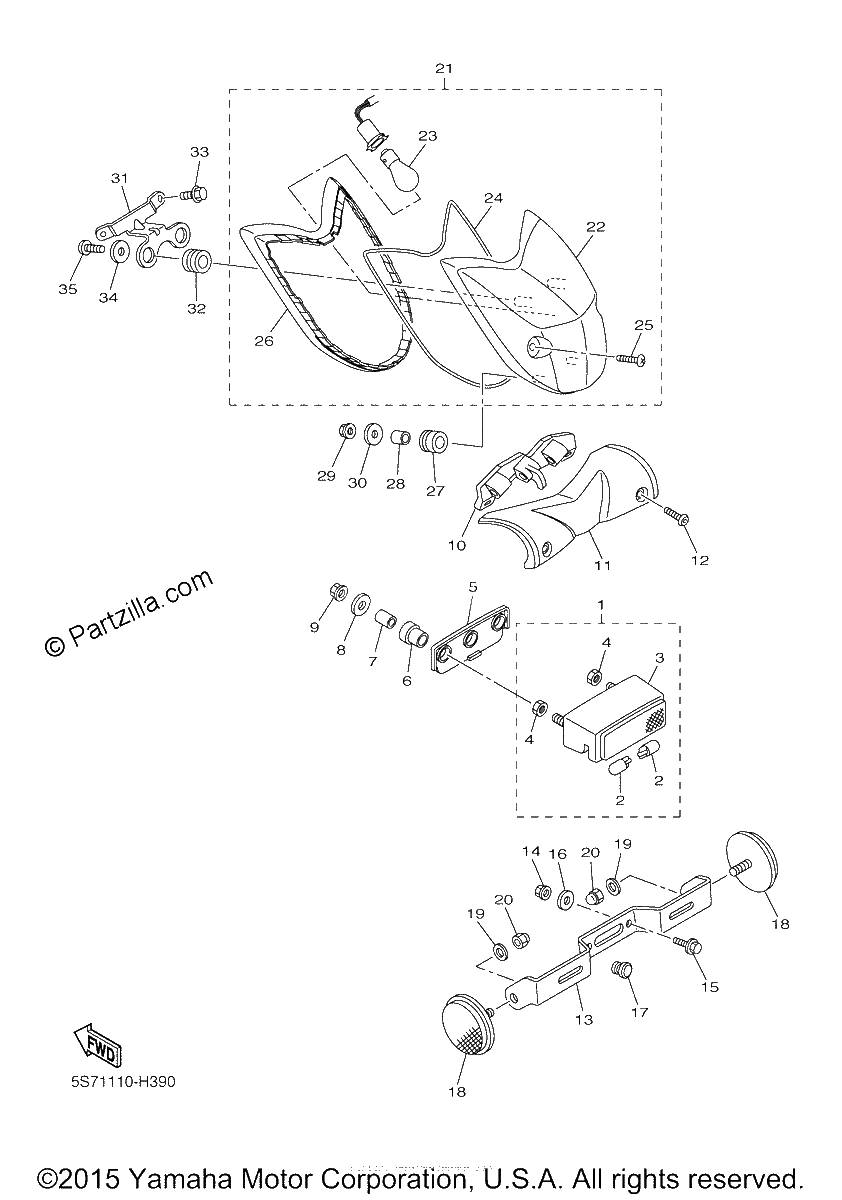

Diagrama de TAILLIGHT

Repuestos

#1
5C7-84745-00-00
LICENCE LIGHT UNIT ASSY
$135.25¢67 625
1
#2
5PX-84744-00-00
BULB (12V-2CP)
$4.24¢2 119
1
#3
5PX-84749-00-00
BODY, LICENCE LIGHT
$95.34¢47 669
1
#4
5PX-84748-00-00
NUT, SPECIAL
$3.79¢1 894
1
#5
5PX-84742-00-00
SEAT, BASE
$8.46¢4 231
1
#6
3F9-84553-00-00
DAMPER
$24.60¢12 300
1
#7
90387-06251-00
COLLAR
$1.86¢931
1
#8
90201-05025-00
WASHER, PLATE
$6.14¢3 069
1
#9
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#10
5S7-82522-00-00
CLAMP, COUPLER
$21.78¢10 888
1
#11
5S7-2163A-00-00
COVER, REAR FENDER 1
$68.83¢34 413
1
#12
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#13
5S7-84751-01-00
BRACKET, LICENCE
$32.57¢16 287
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#15
95022-06014-00
BOLT, FLANGE
$3.14¢1 569
1
#16
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#17
90338-07010-00
PLUG
$5.56¢2 781
1
#18
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#19
90201-051K1-00
WASHER, PLATE
$7.95¢3 975
1
#20
90176-05004-00
NUT, CROWN
$4.15¢2 075
1
#21
5S7-84700-00-00
TAILLIGHT ASSY
$232.91¢116 456
1
#22
5S7-84721-00-00
LENS, TAILLIGHT
$31.35¢15 675
1
#23
1A2-84714-50-00
BULB (12V-21/5W)
$14.50¢7 250
1
#24
5S7-84723-00-00
GASKET, TAIL LENS
$14.44¢7 219
1
#25
3D8-84726-00-00
SCREW
$4.19¢2 094
1
#26
5S7-84736-00-00
DAMPER, TAIL 1
$38.79¢19 394
1
#27
90480-14016-00
GROMMET
$7.52¢3 762
1
#28
90387-06113-00
COLLAR
$12.52¢6 262
1
#29
95380-06600-00
NUT, HEXAGON
$5.05¢2 525
1
#30
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
1
#31
5S7-84702-01-00
BRACKET, TAILLIGHT
$14.90¢7 450
1
#32
90480-14004-00
GROMMET
$8.92¢4 462
1
#33
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#34
90201-05032-00
WASHER, PLATE
$7.99¢3 994
1
#35
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
