SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

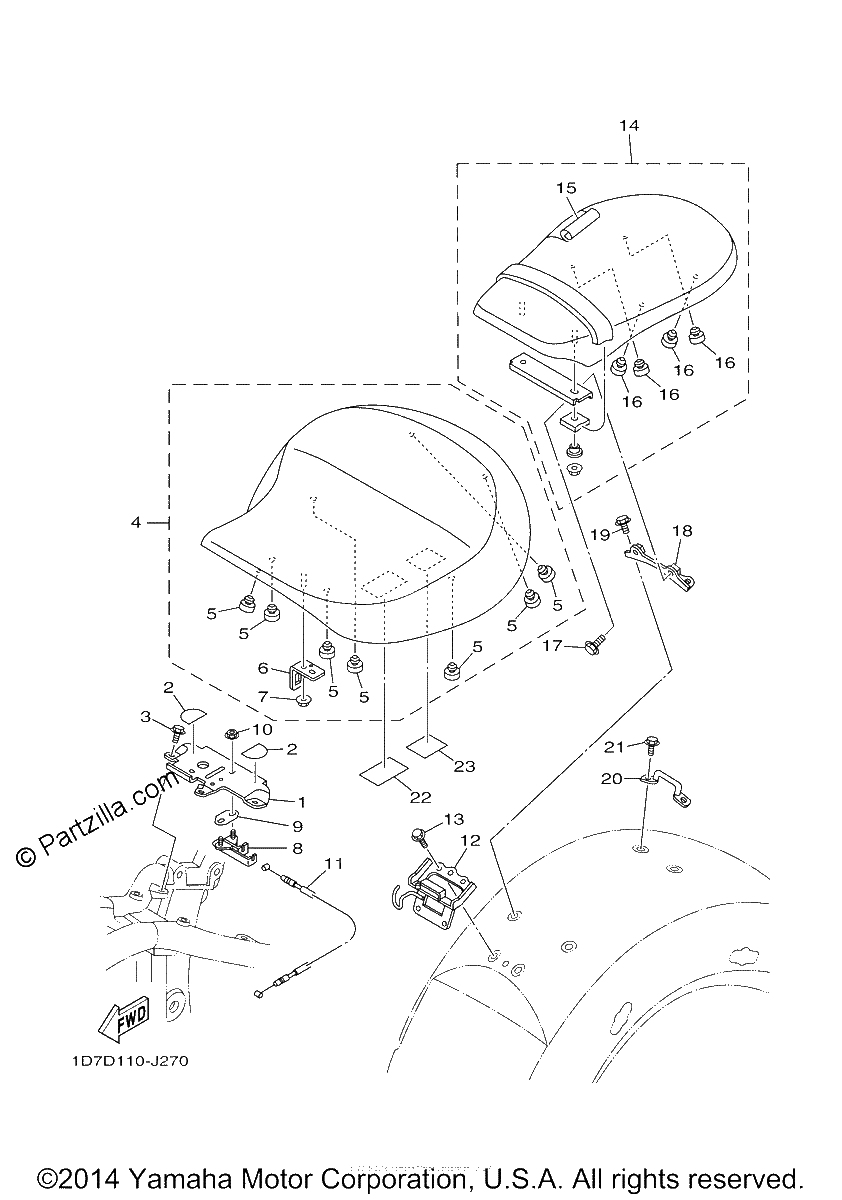

Diagrama de SEAT

Repuestos

#1
1D7-21341-00-00
BRACKET, SEAT 1
$37.98¢18 992
1
#2
5PX-21735-00-00
SEAL 2
No Disponible
1
#3
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#4
1D7-24710-20-00
SINGLE SEAT ASSY
$354.17¢177 083
1
#5
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#6
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#7
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#8
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#9
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#10
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#11
5PX-2478E-00-00
CABLE, SEAT LOCK
$19.50¢9 752
1
#12
1D7-2475N-00-00
BRACKET
$70.13¢35 064
1
#13
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#14
1D7-24750-01-00
TANDEM SEAT ASSY
$364.34¢182 171
1
#15
1D7-2470H-00-00
SEAT COVER COMP. ,2
$96.37¢48 185
1
#16
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#17
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#18
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$17.39¢8 694
1
#19
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#20
1D7-2475R-00-00
BRACKET 6
$16.02¢8 010
1
#21
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#22
1D7-21668-00-00
LABEL, TIRE
$3.48¢1 742
1
#23
5PX-21686-00-00
PLATE, ROUTING 2 | FOR CAL
No Disponible
1
