EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

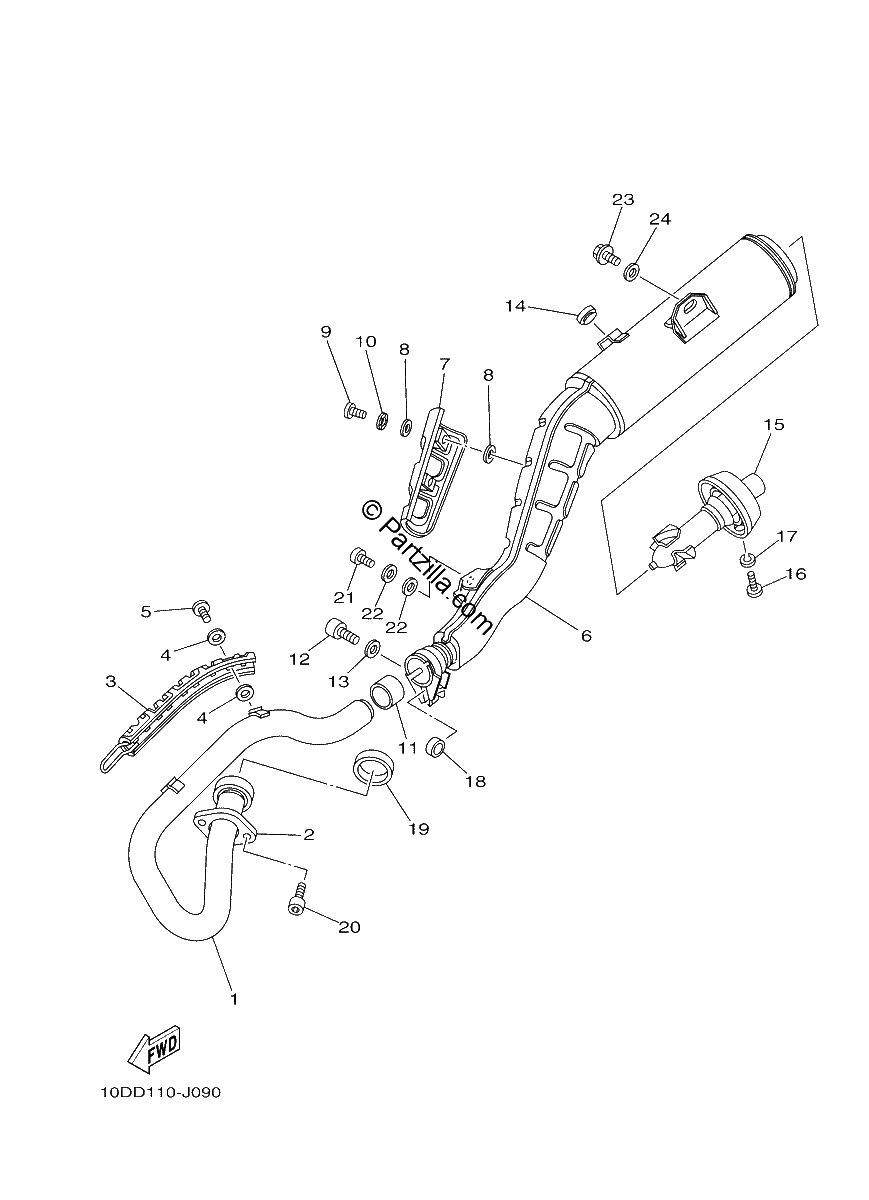

Diagrama de EXHAUST

Repuestos

#1
2JX-14611-02-00
PIPE, EXHAUST 1
$47.87¢23 937
1
#2
5H0-14612-01-00
NUT, RING
$15.32¢7 659
1
#3
5LB-14628-00-00
PROTECTOR, EXHAUST PIPE
$59.49¢29 745
1
#4
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#5
98907-06010-00
SCREW, BIND
$1.64¢822
1
#6
2JX-14711-10-00
MUFFLER 1
$417.63¢208 817
1
#7
2JX-14728-00-00
PROTECTOR, MUFFLER 2
$123.03¢61 514
1
#8
90202-05191-00
WASHER, PLATE
$6.77¢3 387
1
#9
98907-06010-00
SCREW, BIND
$1.64¢822
1
#10
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#11
3YF-14714-00-00
GASKET, MUFFLER
$32.61¢16 307
1
#12
91317-08025-00
BOLT
$6.83¢3 415
1
#13
92907-08600-00
WASHER, PLATE
$2.75¢1 374
1
#14
22W-24181-00-00
DAMPER, LOCATING 1
$6.30¢3 151
1
#15
1RH-14752-01-00
PIPE, OUTLET
$137.41¢68 707
1
#16
98507-06010-00
SCREW, PAN HEAD
$2.96¢1 478
1
#17
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#18
90387-080K1-00
COLLAR
$3.29¢1 644
1
#19
4BE-14613-00-00
GASKET, EXHAUST PIPE
$10.18¢5 089
1
#20
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#21
91317-08020-00
BOLT
$2.56¢1 282
1
#22
90201-08326-00
WASHER, PLATE
$6.75¢3 375
1
#23
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#24
90201-08326-00
WASHER, PLATE
$6.75¢3 375
1
