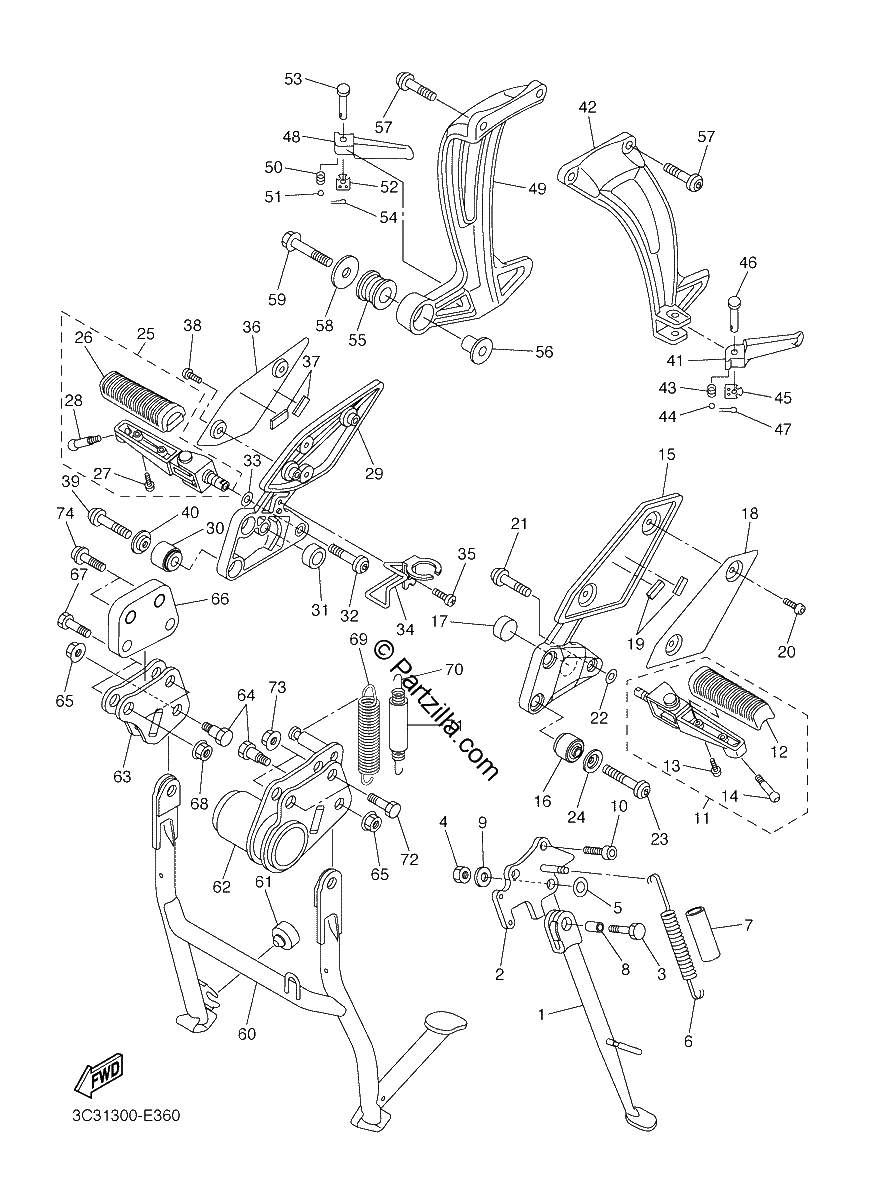

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$78.72¢39 363
#2
BRACKET, SIDE STAND
$90.17¢45 088
#3
bolt
$9.24¢4 619
#4
NUT, SELF-LOCKING
$6.70¢3 350
#5
WASHER, PLATE
$8.73¢4 363
#6
SPRING, TENSION
$14.15¢7 075
#7
HOSE (L60)
$6.10¢3 050
#8
COLLAR
$24.00¢12 000
#9
WASHER, plate
$4.25¢2 125
#10
BOLT, HEXAGON SOCKET HEAD
$3.38¢1 688
#11
FRONT FOOTREST ASSY (LEFT)
$84.53¢42 263
#12
COVER, FOOTREST
$32.09¢16 044
#13
SCREW, PAN HEAD
$2.99¢1 494
#14
bolt
$7.09¢3 544
#15
BRACKET 2
$203.75¢101 875
#16
DAMPER, FOOTREST 2
$36.88¢18 438
#17
STOPPER, MAIN STAND
$7.86¢3 931
#18
COVER 1
$49.59¢24 794
#19
PLATE, DAMPER
$7.86¢3 931
#20
BOLT, HEX. SOCKET BUTTON
$4.16¢2 081
#21
BOLT,HEX. SOCKET BUT
$3.55¢1 775
#22
WASHER, WAVE
$11.19¢5 594
#23
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
#24
WASHER
$7.94¢3 969
#25
FRONT FOOTREST ASSY (RIGHT)
$82.26¢41 131
#26
COVER, FOOTREST
$32.09¢16 044
#27
SCREW, PAN HEAD
$2.99¢1 494
#28
bolt
$7.09¢3 544
#29
BRACKET 3
$230.88¢115 438
#30
DAMPER, FOOTREST 2
$36.88¢18 438
#31
STOPPER, MAIN STAND
$7.86¢3 931
#32
BOLT,HEX. SOCKET BUT
$3.55¢1 775
#33
WASHER, WAVE
$11.19¢5 594
#34
STAY, STOP SWITCH
$22.71¢11 356
#35
BOLT, FLANGE
$5.76¢2 881
#36
COVER 2
$28.39¢14 194
#37
PLATE, DAMPER
$7.86¢3 931
#38
BOLT, HEX. SOCKET BUTTON
$4.16¢2 081
#39
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
#40
WASHER
$7.94¢3 969
#41
FOOTREST, REAR 1
$29.59¢14 794
#42
BRACKET 4
$292.79¢146 394
#43
SPRING, COMPRESSION
$3.81¢1 906
#44
BALL
$7.46¢3 731
#45
WASHER, SPECIAL
$7.99¢3 994
#46
PIN, CLEVIS
$4.84¢2 419
#47
PIN, COTTER
$3.61¢1 806
#48
FOOTREST, REAR 2
$29.66¢14 831
#49
BRACKET 5
$181.59¢90 794
#50
SPRING, COMPRESSION
$3.81¢1 906
#51
BALL
$7.46¢3 731
#52
WASHER, SPECIAL
$7.99¢3 994
#53
PIN, CLEVIS
$4.84¢2 419
#54
PIN, COTTER
$3.61¢1 806
#55
DAMPER, FOOTREST 2
$18.69¢9 344
#56
COLLAR
$13.93¢6 963
#57
BOLT
$2.26¢1 131
#58
WASHER, PLATE
$7.46¢3 731
#59
BOLT, FLANGE
$4.38¢2 188
#60
STAND, MAIN
$257.90¢128 950
#61
STOPPER, MAIN STAND
$6.91¢3 456
#62
BRACKET, MAIN STAND
$255.23¢127 613
#63
BRACKET, MAIN STAND 2
$77.69¢38 844
#64
BOLT
$9.91¢4 956
#65
NUT, U FLANGE
$2.73¢1 363
#66
BRACKET, ADAPTER 1
$54.11¢27 056
#67
BOLT
$4.09¢2 044
#68
NUT, U FLANGE
$2.73¢1 363
#69
SPRING, TENSION
$26.46¢13 231
#70
SPRING, TENSION
$12.86¢6 431
#71
HOSE
$6.47¢3 238
#72
BOLT
$4.09¢2 044
#73
NUT, U FLANGE
$2.73¢1 363
#74
BOLT, HEXAGON SOCKET HEAD
$11.54¢5 769
