FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

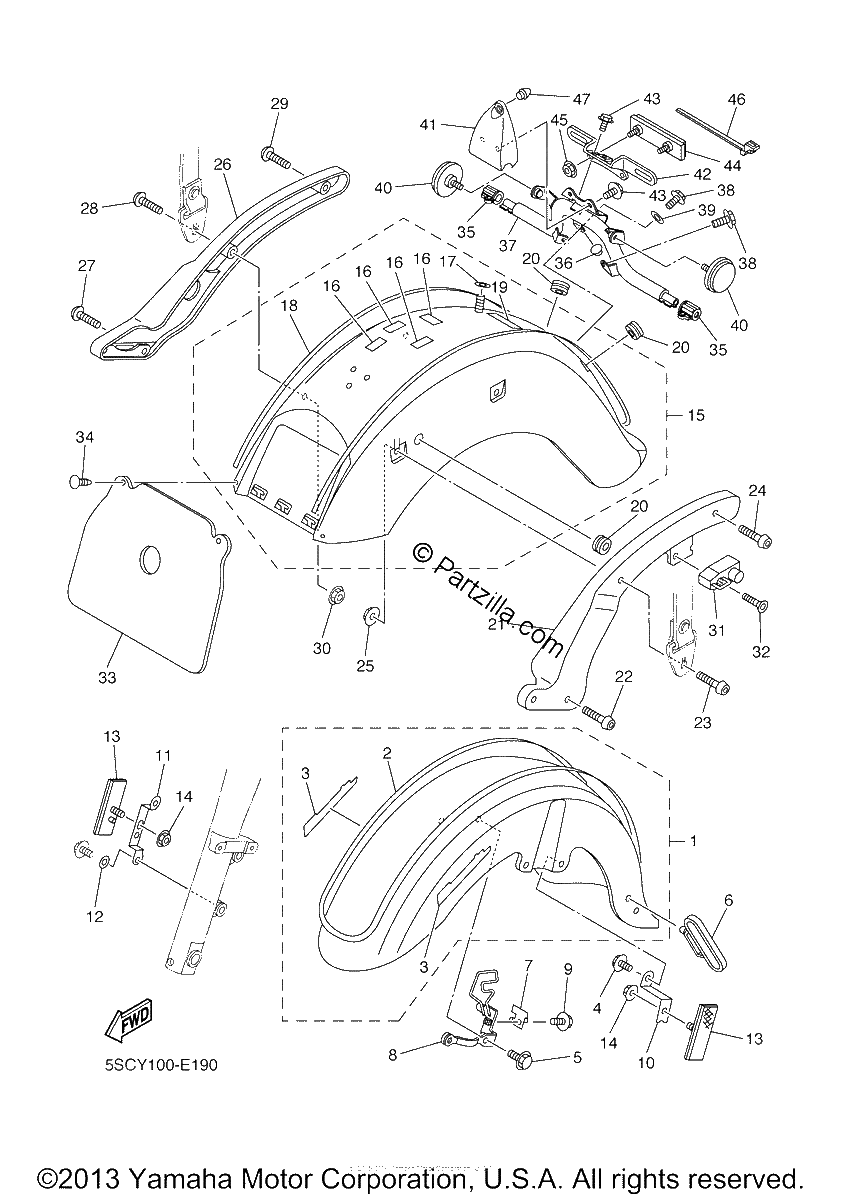

Diagrama de FENDER

Repuestos

#0
5SC-2165A-C0-00
GRAPHIC SET,REAR FENDER | UR FOR DPBMX
$168.92¢84 462
1
#0
5SC-21570-C0-00
GRAPHIC SET, FRONT FENDER | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$256.21¢128 106
1
#0
5BN-Y2151-22-P9
FRONT FENDER ASSY | UR FOR DPBMX
$863.74¢431 869
1
#0
5BN-W216R-21-P9
REAR FENDER ASSY | UR FOR DPBMX
No Disponible
1
#0
5BN-21578-S0-00
EMBLEM | UR FOR DPBMX
$16.40¢8 200
1
#1
5BN-Y2151-12-P6
FRONT FENDER ASSY | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
1
#2
5SC-21570-D0-00
GRAPHIC SET, FRONT FENDER | UR FOR DPBMX
$245.59¢122 794
1
#3
5BN-21578-R0-00
EMBLEM | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$16.40¢8 200
1
#4
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#5
95814-08020-00
BOLT, FLANGE
$7.34¢3 669
1
#6
5BN-21518-01-00
HOLDER, CABLE
$15.88¢7 938
1
#7
5BN-21598-00-00
HOLDER, WIRE 2
$11.15¢5 575
1
#8
5BN-21587-01-00
STAY 1
$36.78¢18 388
1
#9
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#10
5BN-85112-00-00
BRACKET, REFLECTOR 1
$12.28¢6 138
1
#11
5BN-85122-00-00
BRACKET, REFLECTOR 2
$26.15¢13 075
1
#12
90201-08759-00
WASHER, PLATE
$2.99¢1 494
1
#13
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#14
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#15
5BN-W216R-21-P6
REAR FENDER ASSY | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
1
#16
3SP-21732-00-00
SEAL 1
$19.20¢9 600
1
#17
4NK-21735-00-00
Seal 2
$7.95¢3 975
1
#18
5SC-2165A-B0-00
GRAPHIC SET,REAR FENDER | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$187.65¢93 825
1
#19
3WF-2153E-70-00
EMBLEM, YAMAHA
$5.34¢2 669
1
#20
90480-15061-00
GROMMET
$7.94¢3 969
1
#21
5BN-21613-10-00
STAY, FENDER 1
$390.84¢195 419
1
#22
90157-10043-00
SCREW, PAN HEAD
$6.36¢3 181
1
#23
92014-08040-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#24
92014-08035-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#25
90179-08491-00
NUT (replaces 90179-08820-00)
$2.58¢1 288
1
#26
5BN-21614-10-00
STAY, FENDER 2
$368.05¢184 025
1
#27
90157-10043-00
SCREW, PAN HEAD
$6.36¢3 181
1
#28
92014-08040-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#29
92014-08035-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#30
90179-08491-00
NUT (replaces 90179-08820-00)
$2.58¢1 288
1
#31
4R8-21308-01-00
HELMET HANGER ASSY
$87.00¢43 500
1
#32
90151-06068-00
SCREW, COUNTERSUNK (replaces 90151-06067-00)
$5.80¢2 900
1
#33
4TR-21629-00-00
GUARD, MUD
$21.25¢10 625
1
#34
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#35
5VN-83321-00-00
DAMPER, FLASHER 1
$20.31¢10 156
1
#36
4NK-83345-00-00
PLUG, BLIND
$31.21¢15 606
1
#37
5BN-2317W-40-00
STAY, 9
$355.63¢177 813
1
#38
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#39
90201-06043-00
WASHER, PLATE
$2.86¢1 431
1
#40
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#41
5BN-84703-00-00
BRACKET
$140.18¢70 088
1
#42
5BN-84751-00-00
BRACKET, LICENSE
$69.51¢34 756
1
#43
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#44
8Y7-85130-00-00
REAR REFLECTOR ASSY
No Disponible
1
#45
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#46
90464-25002-00
CLAMP
$7.21¢3 606
1
#47
42U-21639-00-00
DAMPER 2
$29.67¢14 837
1
